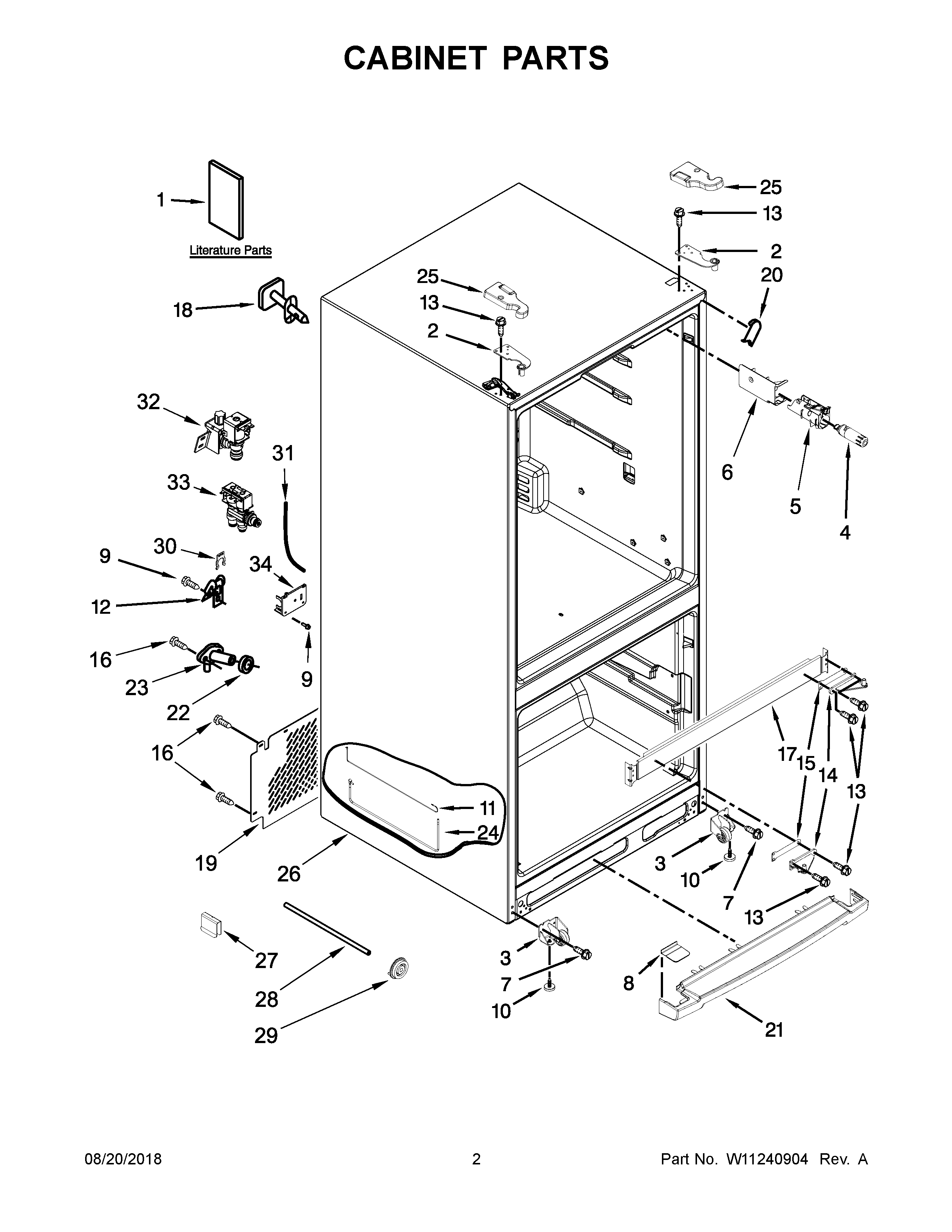

WRF560SEHW00 02 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1A	ENERGY GUIDE
1C	Modular Icemaker Service Sheet
1B	USE AND CARE GUIDE
2A	W11573371 Whirlpool Refrigerator Door Hinge
2	W10546298 Whirlpool Refrigerator Door Hinge
3	WPW10359256 Whirlpool Cabinet Roller
3A	WPW10359255 Whirlpool Cabinet Wheel
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W10844267 Whirlpool Refrigerator Housing
6	WPW10306392 Whirlpool Refrigerator Filter Cover
8B	WPW10353932 Whirlpool Refrigerator Grille Endcap
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8A	W10353930 Whirlpool Refrigerator Grill End Cap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W11195038 Whirlpool Refrigerator Water Tube
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14A	W11417064 Whirlpool Refrigerator Door Hinge
14	W10770878 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WP488729 Whirlpool Refrigerator Door Screw
19	W10636716 Whirlpool Refrigerator Cover Unit
20	W11219639 Whirlpool Refrigerator Filler
20A	W11219641 Whirlpool Refrigerator Filler
20B	W11219642 Whirlpool Refrigerator Filler
21B	WPW10353935 Whirlpool Refrigerator Grille
21A	WPW10353933 Whirlpool Refrigerator Grille
21	WPW10300127 Whirlpool Refrigerator Grille
22	WP1106508 Whirlpool Refrigerator Gasket
23	W11292468 Whirlpool Refrigerator Fitting
24	W10801011 Whirlpool Refrigerator Reservoir
25D	W10465768 Whirlpool Hinge Cover
25	W10465765 Whirlpool Refrigerator Cover
25A	W10465764 Whirlpool Refrigerator Cover
25B	W10465771 Whirlpool Refrigerator Cover
25C	W10465770 Whirlpool Hinge Cover
25E	W10465767 Whirlpool Refrigerator Cover
26	CABINET (NOT A SERVICEABLE PART)
27	WP2174706 Whirlpool Refrigerator Pin Hitch
28	WPW10463317 Whirlpool Refrigerator Water Tube
29	W10331226 Whirlpool Refrigerator Clip
30A	W11678575 Whirlpool Ring
30	W11676611 Whirlpool Ring
31	W11680400 Whirlpool Water Tube
32	WPW10279866 Whirlpool Refrigerator Inlet Valve
33	VALVE-INLT REFR
34	W10847867 Whirlpool Refrigerator Bracket
35	W10861184 Whirlpool Refrigerator Clamp
36	4387491 Whirlpool Refrigerator Insert
