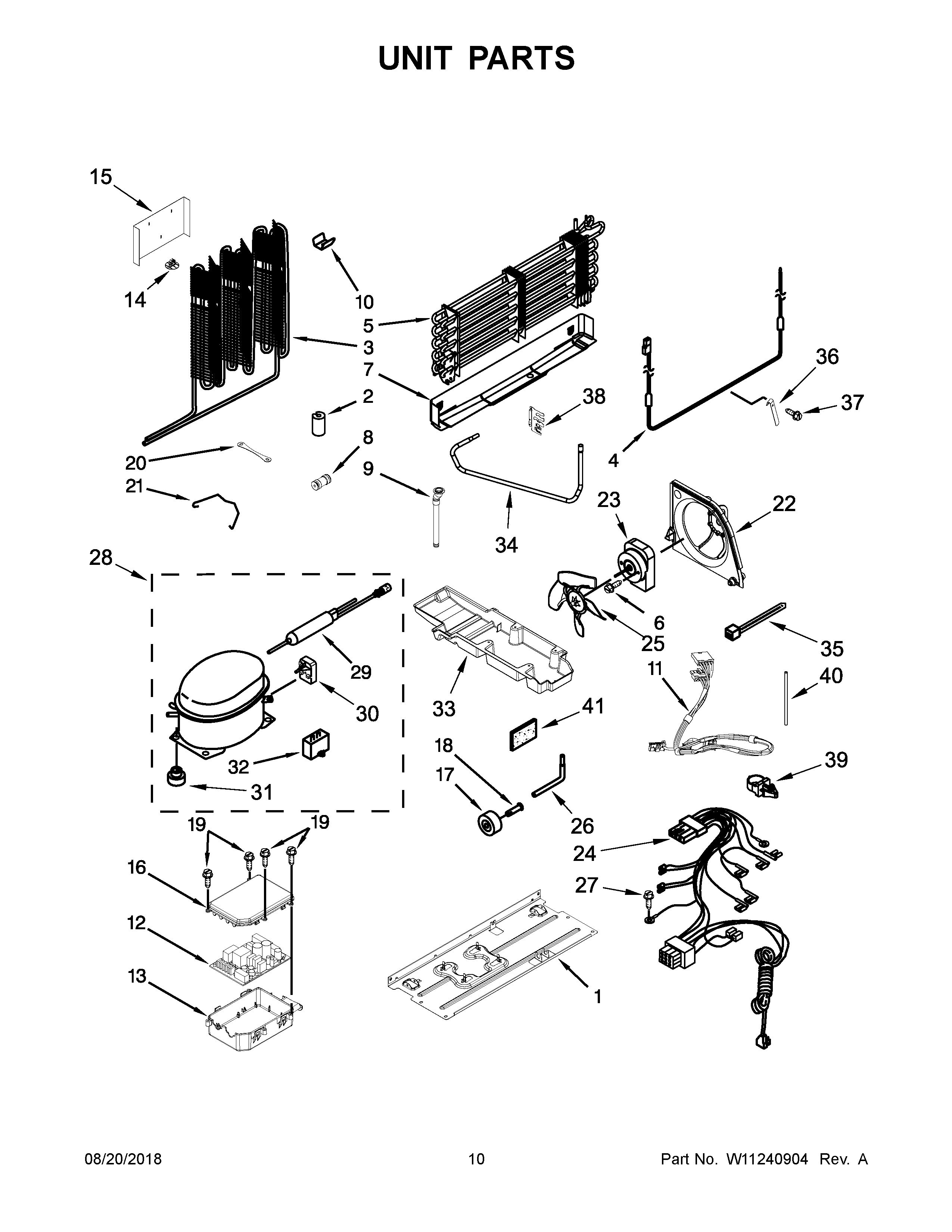

WRF560SEHW00 06 – UNIT PARTS

WRF560SEHW00 06 – UNIT PARTS

Written by

in

WRF560SEHW00 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10852725 Whirlpool Refrigerator Grommet
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10436849 Whirlpool Refrigerator Heater
5	WPW10321158 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	WP2300868 Whirlpool Refrigerator Fitting
9	W11284510 Whirlpool Refrigerator Drain Tube
10	W10683556 Whirlpool Refrigerator Clip
11	WPW10424230 Whirlpool Refrigerator Wire Harness
12	W11035836-includeCORE Whirlpool W11035836 Refrigerator Electronic Control Board + Core
13	2323186 Whirlpool Refrigerator Housing
14	W10815861 Whirlpool Refrigerator Clip
15	START-DEV
16	W10313215 Whirlpool Refrigerator Box Cover
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10171469 Whirlpool Refrigerator Screw
20	W10236396 Whirlpool Refrigerator Strap
21	W11661170 Whirlpool Clip
22	W11605794 Whirlpool Air Baffle
23	W11563806 Whirlpool Refrigerator Condenser Motor
24	W10633276 Whirlpool Refrigerator Wire Harness
25	W11193484 Whirlpool Fan Blade
26	W11676464 Whirlpool Tube
27	WP489128 Whirlpool Refrigerator Screw
28	WPW10507886 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	W10349514 Whirlpool Refrigerator Air Baffle
31	WPW10169124 Whirlpool Refrigerator Grommet
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	W10890667 Whirlpool Refrigerator Drip Pan
34	W10510988 Whirlpool Refrigerator Tube
35	WPW10339879 Whirlpool Wire Tie
36	W10856574 Whirlpool Refrigerator Heat Probe
37	WP489478 Whirlpool Refrigerator Screw
38	W10314197 Whirlpool Refrigerator Bracket
39	2219077 Whirlpool Refrigerator Clip
40	W11553819 Whirlpool Refrigerator Insulation
