WRF560SEHW05 04 – REFRIGERATOR DOOR PARTS

WRF560SEHW05 04 – REFRIGERATOR DOOR PARTS

Written by

in

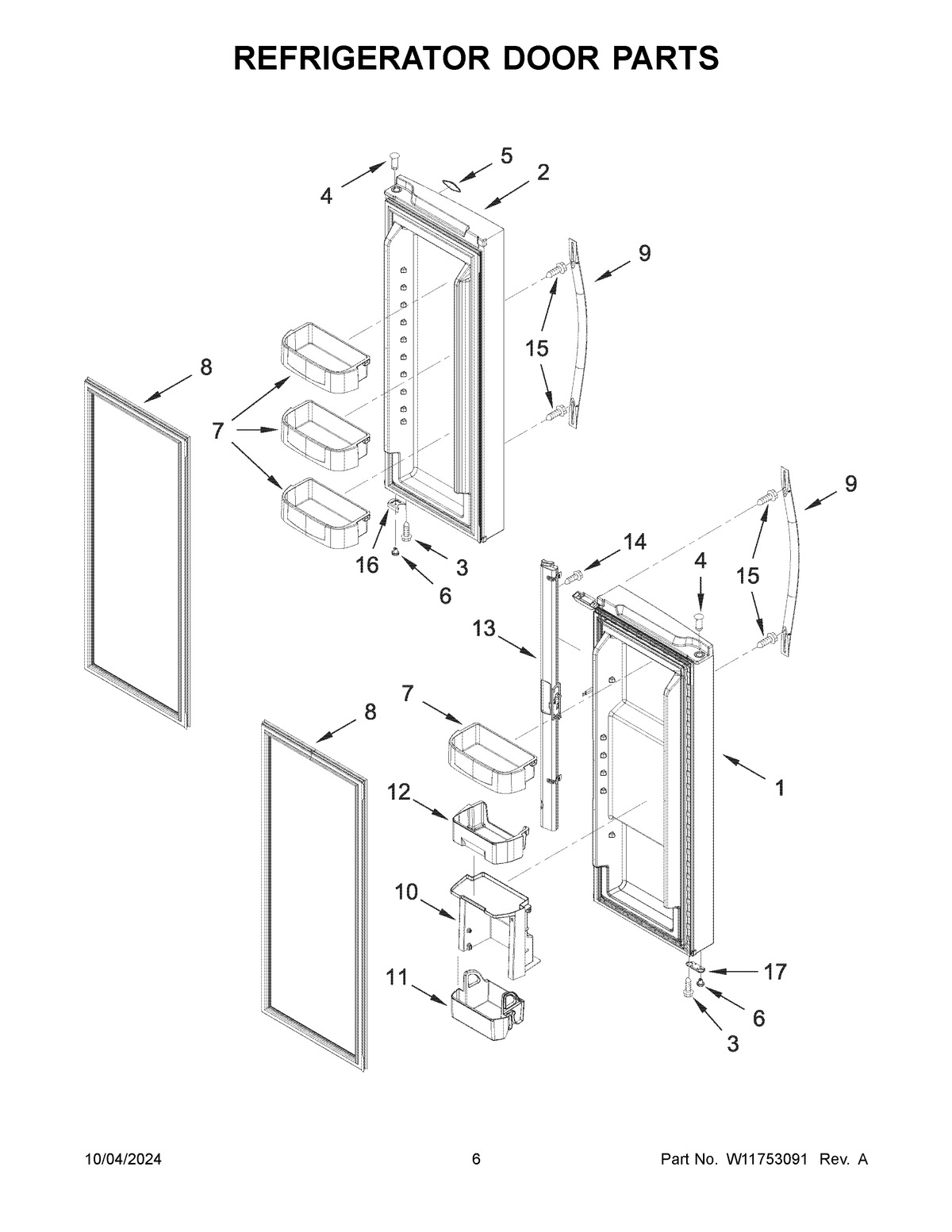

WRF560SEHW05 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (INCLUDES #8) (WHITE)
2LW10721540 Whirlpool Refrigerator Door Assembly
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8W10460612 Whirlpool Refrigerator Door Gasket
9W11127179 Whirlpool Refrigerator Handle
10WPW10317224 Whirlpool Refrigerator Container
11W11106787 Whirlpool Refrigerator Cantilever Bin
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13WPW10624451 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10661886 Whirlpool Refrigerator Door Handle Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17W11745278 Whirlpool Bracket
