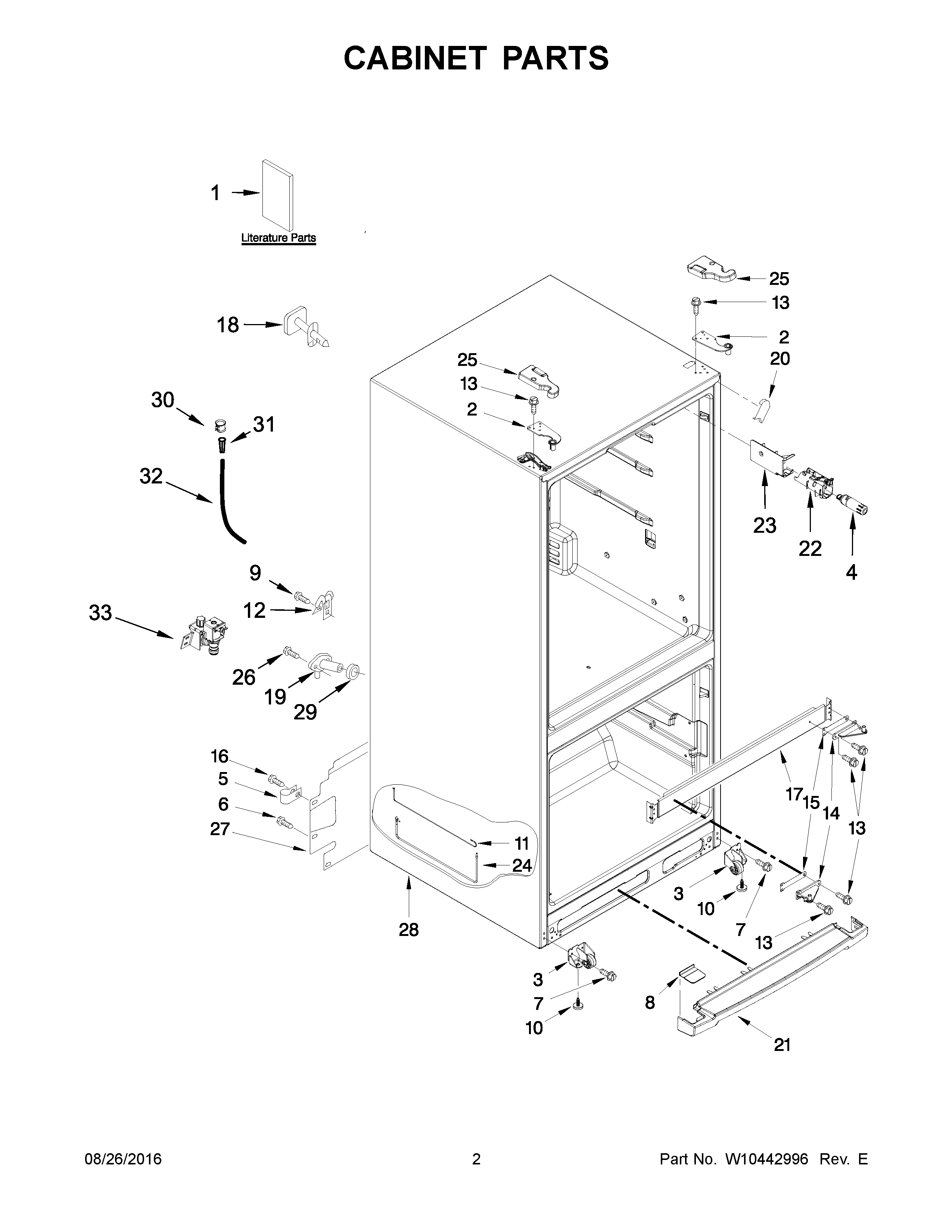

WRF560SEYB00 02 – CABINET PARTS

WRF560SEYB00 02 – CABINET PARTS

Written by

in

WRF560SEYB00 02 – CABINET PARTS

Products

PositionProduct
1AModular Icemaker Service Sheet
1USE AND CARE GUIDE
2AW11573371 Whirlpool Refrigerator Door Hinge
2W10546298 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
4EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
8BWPW10353932 Whirlpool Refrigerator Grille Endcap
8AW10353930 Whirlpool Refrigerator Grill End Cap
8WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11WPW10449619 Whirlpool Refrigerator Water Tube
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14AWPW10521409 Whirlpool Door Hinge Assembly
14WPW10521411 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16WP489464 Whirlpool Refrigerator Screw
19WP2196157 Whirlpool Fill Tube
20AW11252732 Whirlpool Refrigerator Filler
20WPW10283959 Whirlpool Refrigerator Filler
20BW10851579 Whirlpool Refrigerator Filler
21BWPW10353935 Whirlpool Refrigerator Grille
21AWPW10353933 Whirlpool Refrigerator Grille
21WPW10300127 Whirlpool Refrigerator Grille
22W10844267 Whirlpool Refrigerator Housing
23WP488729 Whirlpool Refrigerator Door Screw
24W10801011 Whirlpool Refrigerator Reservoir
25W10465765 Whirlpool Refrigerator Cover
25EW10406928 Whirlpool Refrigerator Cover
25AW10465764 Whirlpool Refrigerator Cover
25CW10465770 Whirlpool Hinge Cover
25BW10465771 Whirlpool Refrigerator Cover
25DW10465768 Whirlpool Hinge Cover
26WPW10306392 Whirlpool Refrigerator Filter Cover
27W10636716 Whirlpool Refrigerator Cover Unit
28CABINET (NOT A SERVICEABLE PART)
29WP1106508 Whirlpool Refrigerator Gasket
30WP488878 Whirlpool Refrigerator Tube Clamp
314387491 Whirlpool Refrigerator Insert
32WPW10238092 Whirlpool Refrigerator Water Tube
33VALVE-INLT REFR
