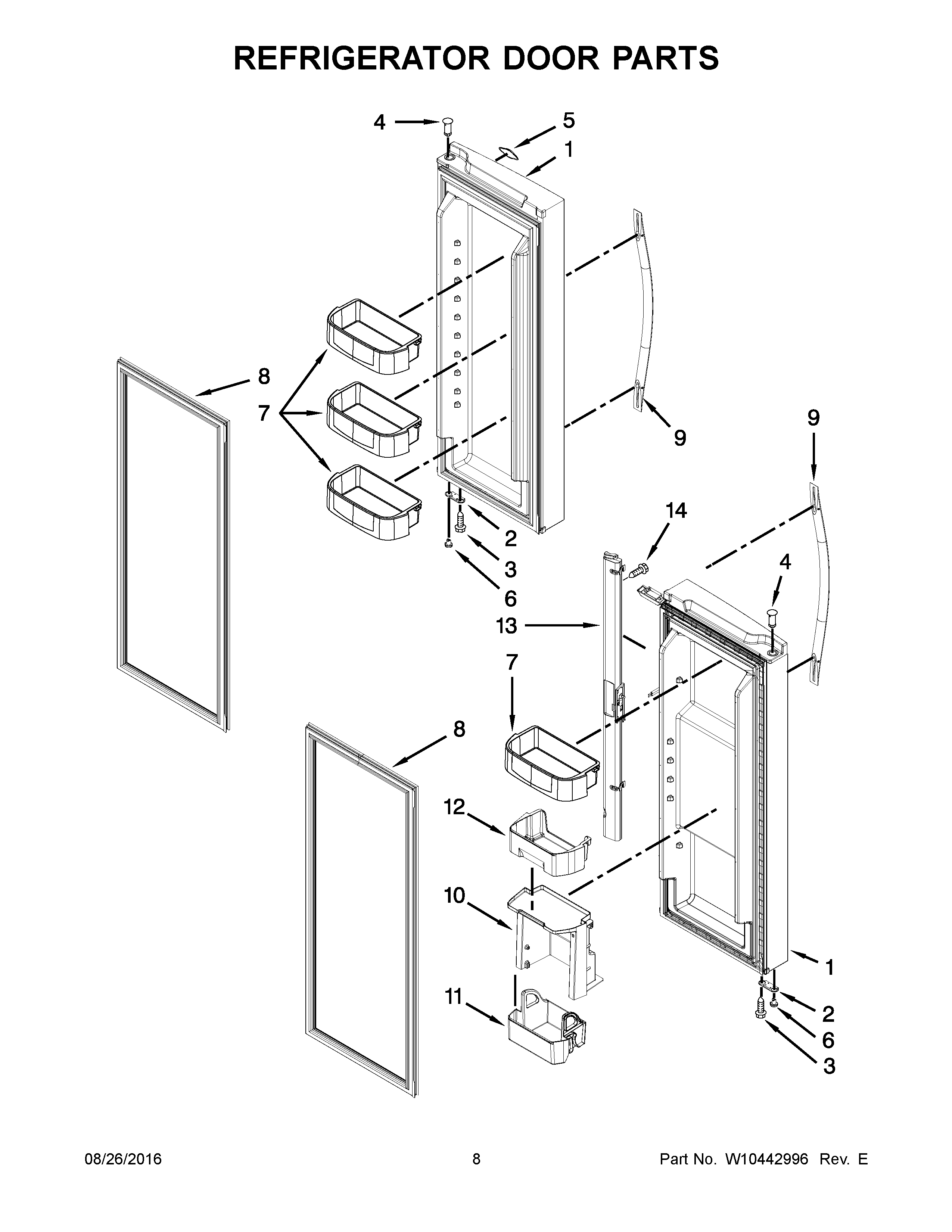

WRF560SEYB00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1D	LW10406934 Whirlpool Refrigerator DOR-FIP MS
1B	LW10406595 Whirlpool Refrigerator Door Right Side FIP
1	DOOR, REFRIGERATOR (INCLUDES #8) (LEFT HAND (WHITE))
1E	LW10413519 Whirlpool Refrigerator Door Flip Right Side, Mono Stainless
1C	LW10413518 Whirlpool Door Right Side Black Foam In Place
1A	LW10353181 Whirlpool Refrigerator Door-Fip White, Right Side
2	W11745278 Whirlpool Bracket
2A	WPW10397055 Whirlpool Refrigerator Hinge Bracket
3	WP681249 Whirlpool Screw Assembly
4	W11544568 Whirlpool Door Thimble
4A	W11189115 Whirlpool Refrigerator Thimble
5A	WPW10393264 Whirlpool Refrigerator Nameplate
5	W11178521 Whirlpool Dishwasher Nameplate
6	WPW10470155 Whirlpool Refrigerator Door Closing Cam
7	WPW10308869 Whirlpool Door Bin
8B	GASKET-FIP
8A	W10460610 Whirlpool Refrigerator FIP Gasket
8	W10460612 Whirlpool Refrigerator Door Gasket
9A	W10830130 Whirlpool Refrigerator Handle
9B	W11459378 Whirlpool Refrigerator Handle
9	W10830136 Whirlpool Refrigerator Handle
10	WPW10317224 Whirlpool Refrigerator Container
11	W11106787 Whirlpool Refrigerator Cantilever Bin
12	WPW10326335 Whirlpool Refrigerator Cantilever Bin
13A	W11692845 Whirlpool Mullen Rail
13B	WPW10624450 Whirlpool Refrigerator Mullion Rail
13	WPW10624451 Whirlpool Refrigerator Mullion Rail
14	W10854958 Whirlpool Refrigerator Screw
