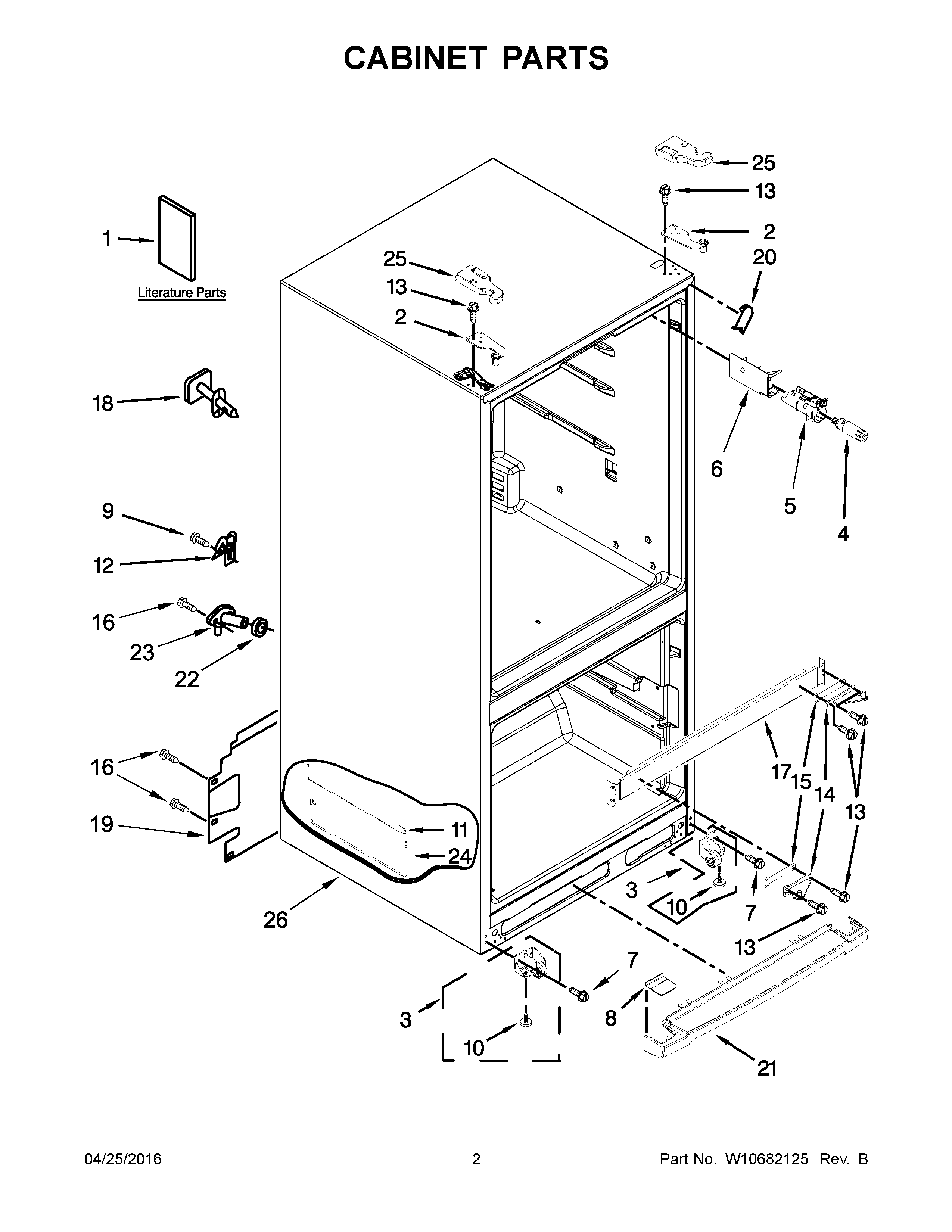

WRF560SEYB02 02 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1C	Modular Icemaker Service Sheet
1A	ENERGY GUIDE
1B	USE AND CARE GUIDE
2A	W11573371 Whirlpool Refrigerator Door Hinge
2	W10546298 Whirlpool Refrigerator Door Hinge
3A	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W10844267 Whirlpool Refrigerator Housing
6	WPW10306392 Whirlpool Refrigerator Filter Cover
8B	WPW10353932 Whirlpool Refrigerator Grille Endcap
8A	W10353930 Whirlpool Refrigerator Grill End Cap
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	WPW10449619 Whirlpool Refrigerator Water Tube
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WPW10521411 Whirlpool Refrigerator Door Hinge
14A	WPW10521409 Whirlpool Door Hinge Assembly
15	WPW10450363 Whirlpool Refrigerator Shim
16	WP488729 Whirlpool Refrigerator Door Screw
19	W10636716 Whirlpool Refrigerator Cover Unit
20A	W11252732 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
20B	W10851579 Whirlpool Refrigerator Filler
21	WPW10300127 Whirlpool Refrigerator Grille
21A	WPW10353933 Whirlpool Refrigerator Grille
21B	WPW10353935 Whirlpool Refrigerator Grille
22	WP1106508 Whirlpool Refrigerator Gasket
23	WPW10601149 Whirlpool Refrigerator Fitting
24	W10801011 Whirlpool Refrigerator Reservoir
25	W10465765 Whirlpool Refrigerator Cover
25A	W10465764 Whirlpool Refrigerator Cover
25B	W10465771 Whirlpool Refrigerator Cover
25D	W10465768 Whirlpool Hinge Cover
25E	W10465767 Whirlpool Refrigerator Cover
25C	W10465770 Whirlpool Hinge Cover
26	CABINET (NOT A SERVICEABLE PART)
