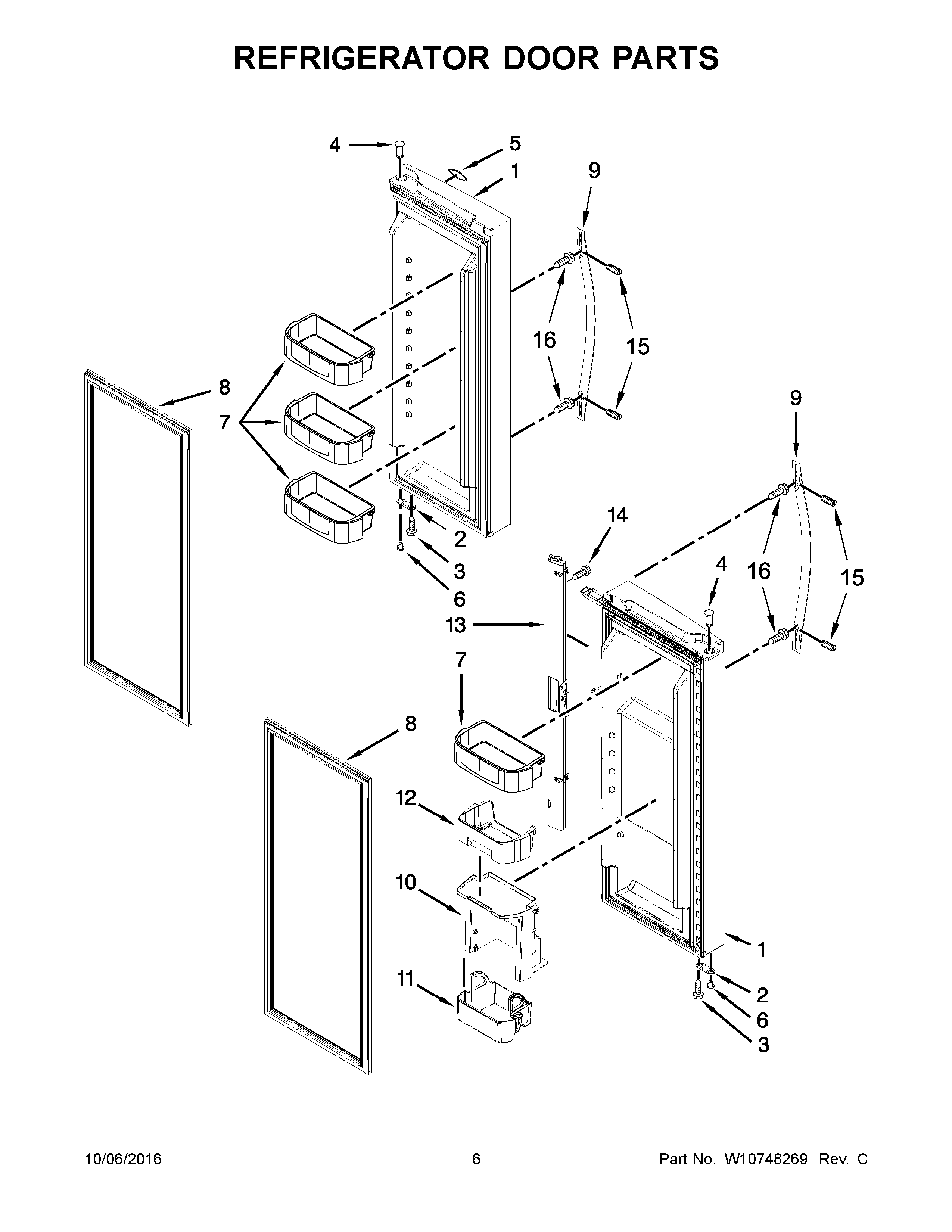

WRF560SEYB04 04 – REFRIGERATOR DOOR PARTS

WRF560SEYB04 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SEYB04 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CLW10413518 Whirlpool Door Right Side Black Foam In Place
1ELW10413519 Whirlpool Refrigerator Door Flip Right Side, Mono Stainless
1DLW10557493 Whirlpool Refrigerator Door FIP
1BLW10557491 Whirlpool Refrigerator DOR-FIP
1ALW10353181 Whirlpool Refrigerator Door-Fip White, Right Side
1LW10557489 Whirlpool Refrigerator Door Frame Insulation Panel
2W11745278 Whirlpool Bracket
2AWPW10397055 Whirlpool Refrigerator Hinge Bracket
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5AW11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8BGASKET-FIP
8AW10460610 Whirlpool Refrigerator FIP Gasket
8W10460612 Whirlpool Refrigerator Door Gasket
9W10830136 Whirlpool Refrigerator Handle
9BW11459378 Whirlpool Refrigerator Handle
9AW10830130 Whirlpool Refrigerator Handle
10WPW10317224 Whirlpool Refrigerator Container
11W11106787 Whirlpool Refrigerator Cantilever Bin
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13AW11692845 Whirlpool Mullen Rail
13WPW10624451 Whirlpool Refrigerator Mullion Rail
13BWPW10624450 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15SCREW
16WPW10170540 Whirlpool Screw
