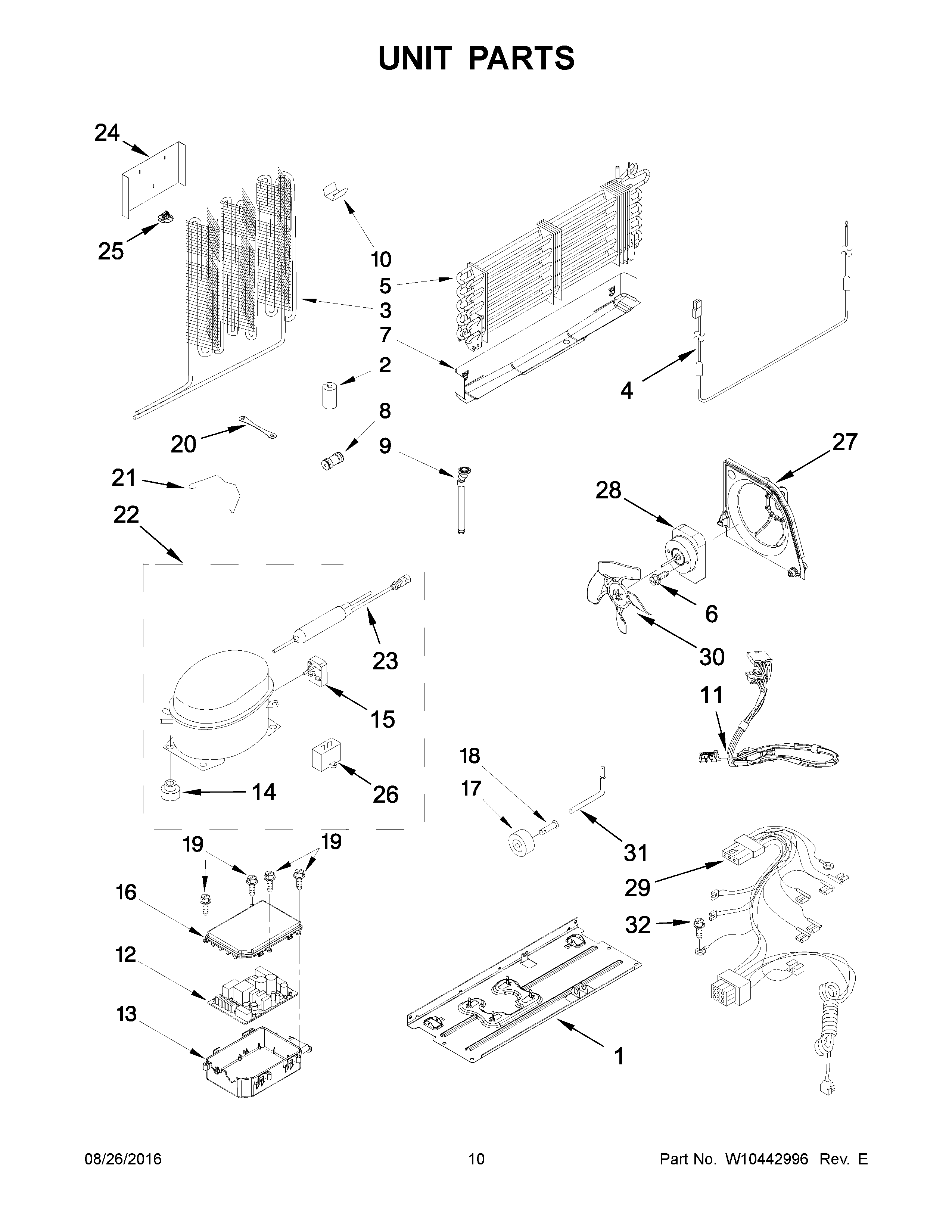

WRF560SEYM00 06 – UNIT PARTS

WRF560SEYM00 06 – UNIT PARTS

Written by

in

WRF560SEYM00 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10852725 Whirlpool Refrigerator Grommet
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10436849 Whirlpool Refrigerator Heater
5	WPW10321158 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	W10890667 Whirlpool Refrigerator Drip Pan
8	WP2300868 Whirlpool Refrigerator Fitting
9	W11190084 Whirlpool Refrigerator Drain Tube
10	W10683556 Whirlpool Refrigerator Clip
11	WPW10424230 Whirlpool Refrigerator Wire Harness
12	W11034366 Whirlpool Refrigerator UI Panel + Core
13	2323186 Whirlpool Refrigerator Housing
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10194431 Whirlpool Start Device
16	W10313215 Whirlpool Refrigerator Box Cover
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10171469 Whirlpool Refrigerator Screw
20	W10236396 Whirlpool Refrigerator Strap
21	W10204187 Whirlpool Refrigerator Retainer
22	WPW10466675 Whirlpool Refrigerator Compressor
23	WPW10143759 Whirlpool Dryer Filter
24	W10349514 Whirlpool Refrigerator Air Baffle
25	W10296661 Whirlpool Refrigerator Clip
26	WPW10662129 Whirlpool Refrigerator Run Capacitor
27	WP2315541 Whirlpool Refrigerator Air Baffle
28	WP2188874 Whirlpool Refrigerator Condenser Motor
29	W10854438 Whirlpool Refrigerator Wire Harness
30	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
31	2154109 Whirlpool Refrigerator Tube
32	WP489128 Whirlpool Refrigerator Screw
