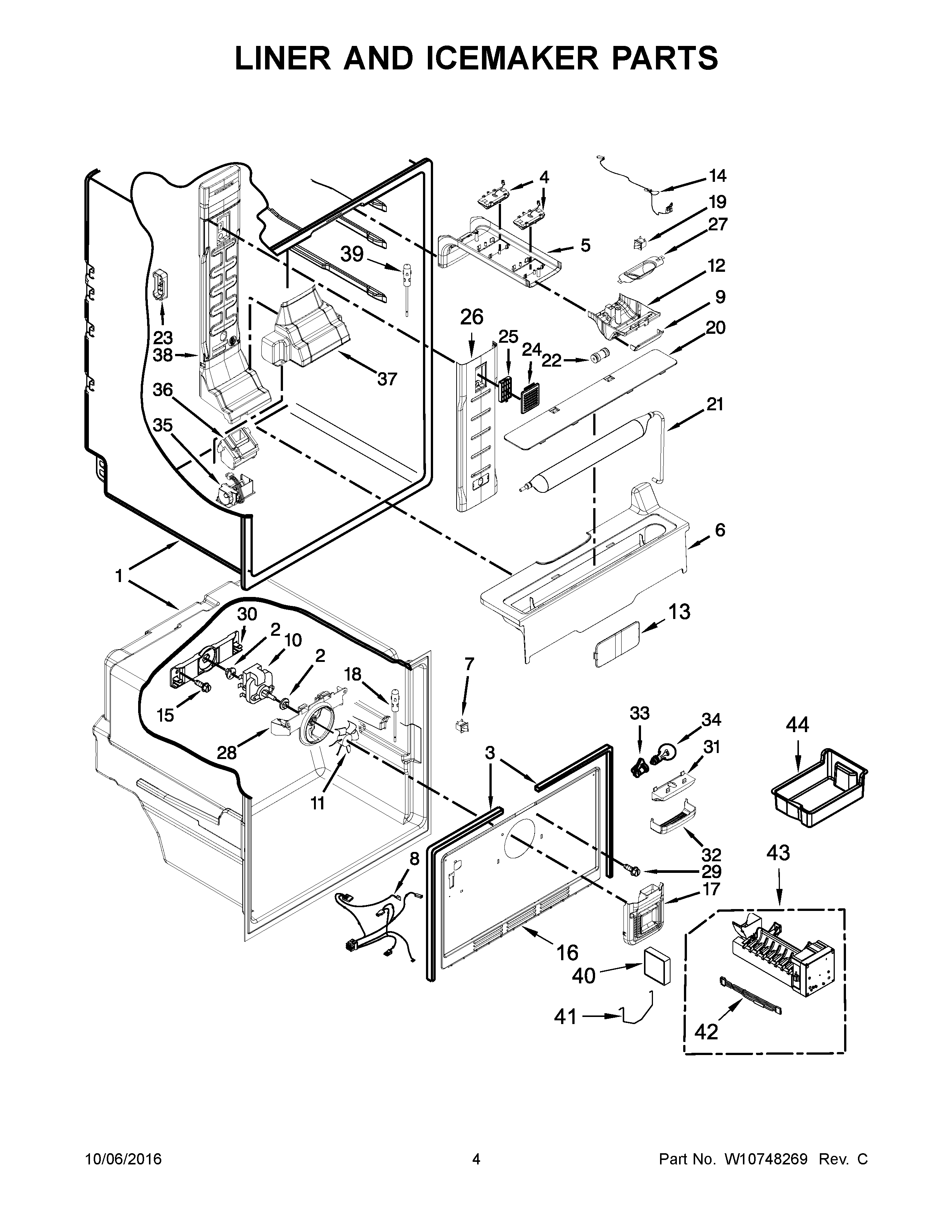

WRF560SEYM04 03 – LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3W10849448 Whirlpool Refrigerator Gasket
4WPW10360497 Whirlpool Refrigerator Module
5W10469878 Whirlpool Refrigerator Housing
6W10798439 Whirlpool Refrigerator Reservoir
7W11396033 Whirlpool Refrigerator Rocker Switch
8WPW10487766 Whirlpool Refrigerator Wire Harness
9W10459385 Whirlpool Refrigerator Front Cover
10MOTOR-EVAP
11WP2163777 Whirlpool Refrigerator Fan Blade
12WPW10453580 Whirlpool Refrigerator Housing
13W10336009 Whirlpool Refrigerator Cover
14W10421353 Whirlpool Refrigerator Wire Harness
15WP488163 Whirlpool Refrigerator Screw
16W10300900 Whirlpool Refrigerator Evaporator Cover
17W11227949 Whirlpool Refrigerator Air Tower
18THERMISTOR-REFRIGERATOR
19W11384469 Whirlpool Door Switch
20W10413160 Whirlpool Refrigerator Cover
21W10801011 Whirlpool Refrigerator Reservoir
22WPW10271543 Whirlpool Refrigerator Connector
23WPW10425252 Whirlpool Refrigerator Cover
24WPW10330850 Whirlpool Refrigerator Grille
25W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26WPW10356895 Whirlpool Refrigerator Cover
27WPW10314195 Whirlpool Refrigerator Shield
28W10850162 Whirlpool Refrigerator Orifice
29WP489478 Whirlpool Refrigerator Screw
302254454 Whirlpool Refrigerator Bracket
31WPW10313917 Whirlpool Refrigerator Housing
32WPW10313918 Whirlpool Refrigerator Light Lens
33W11661565 Whirlpool Refrigerator Socket
34W10914194 Whirlpool Refrigerator Light Bulb
35DAMPER
36W11133099 Whirlpool Refrigerator Cover
37WPW10314204 Whirlpool Refrigerator Housing
38W11508229 Whirlpool Refrigerator Air Tower
39WPW10384183 Whirlpool Thermistor
40WPW10289690 Whirlpool Ice Maker Cover
41WPW10474785 Whirlpool Refrigerator Shut-Off Arm
42W11643622 Whirlpool Wire Harness
434317943 Whirlpool Refrigerator Ice Maker Assembly
44WPW10378263 Whirlpool Refrigerator Ice Pan
