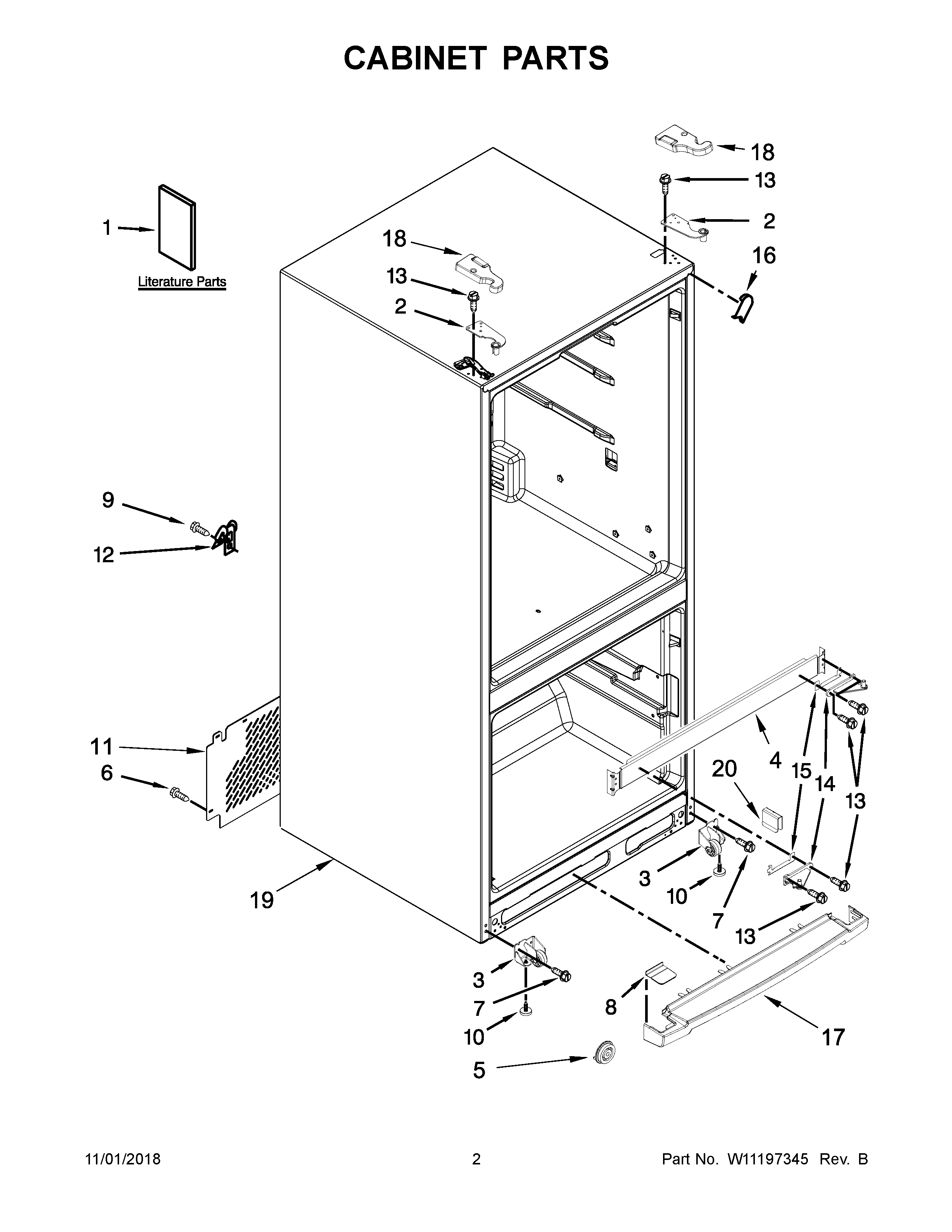

WRF560SFHB00 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	USE & CARE GUIDE
1	TECH SHEET
2A	W11573371 Whirlpool Refrigerator Door Hinge
2	W10546298 Whirlpool Refrigerator Door Hinge
3A	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
5	W10331226 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8A	W10353930 Whirlpool Refrigerator Grill End Cap
8B	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W10636716 Whirlpool Refrigerator Cover Unit
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14A	W11417064 Whirlpool Refrigerator Door Hinge
14	W10770878 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	W11219639 Whirlpool Refrigerator Filler
16A	W11219641 Whirlpool Refrigerator Filler
16B	W11219642 Whirlpool Refrigerator Filler
17A	WPW10353933 Whirlpool Refrigerator Grille
17B	WPW10353935 Whirlpool Refrigerator Grille
17	WPW10300127 Whirlpool Refrigerator Grille
18D	W10465768 Whirlpool Hinge Cover
18E	W10465767 Whirlpool Refrigerator Cover
18C	W10465770 Whirlpool Hinge Cover
18B	W10465771 Whirlpool Refrigerator Cover
18A	W10465764 Whirlpool Refrigerator Cover
18	W10465765 Whirlpool Refrigerator Cover
19	CABINET (NOT A SERVICEABLE PART)
20	WP2174706 Whirlpool Refrigerator Pin Hitch
