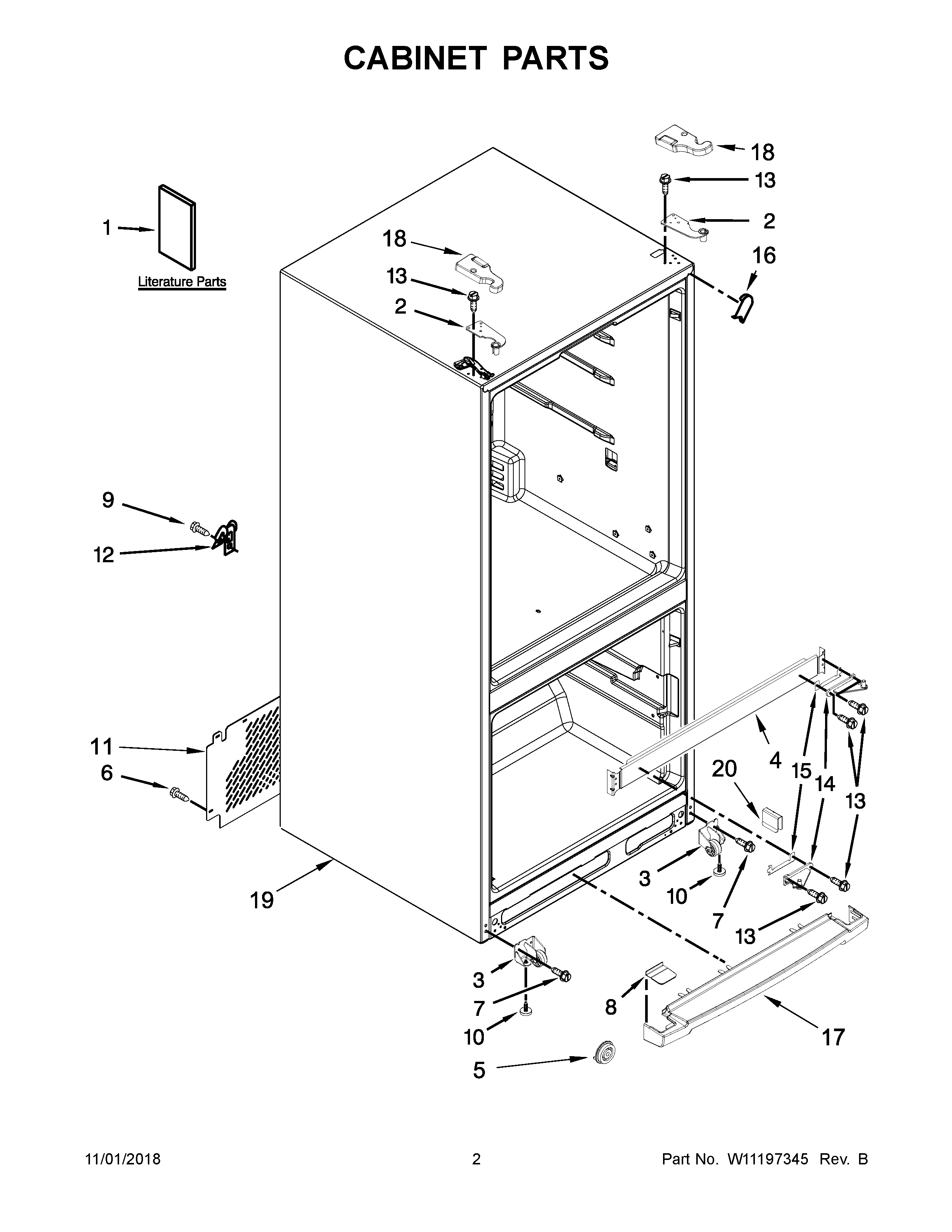

WRF560SFHV00 02 – CABINET PARTS

WRF560SFHV00 02 – CABINET PARTS

Written by

in

WRF560SFHV00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1AUSE & CARE GUIDE
1TECH SHEET
2AW11573371 Whirlpool Refrigerator Door Hinge
2W10546298 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
5W10331226 Whirlpool Refrigerator Clip
6WP488729 Whirlpool Refrigerator Door Screw
8WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8AW10353930 Whirlpool Refrigerator Grill End Cap
8BWPW10353932 Whirlpool Refrigerator Grille Endcap
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11W10636716 Whirlpool Refrigerator Cover Unit
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14AW11417064 Whirlpool Refrigerator Door Hinge
14W10770878 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16W11219639 Whirlpool Refrigerator Filler
16AW11219641 Whirlpool Refrigerator Filler
16BW11219642 Whirlpool Refrigerator Filler
17AWPW10353933 Whirlpool Refrigerator Grille
17BWPW10353935 Whirlpool Refrigerator Grille
17WPW10300127 Whirlpool Refrigerator Grille
18DW10465768 Whirlpool Hinge Cover
18EW10465767 Whirlpool Refrigerator Cover
18CW10465770 Whirlpool Hinge Cover
18BW10465771 Whirlpool Refrigerator Cover
18AW10465764 Whirlpool Refrigerator Cover
18W10465765 Whirlpool Refrigerator Cover
19CABINET (NOT A SERVICEABLE PART)
20WP2174706 Whirlpool Refrigerator Pin Hitch
