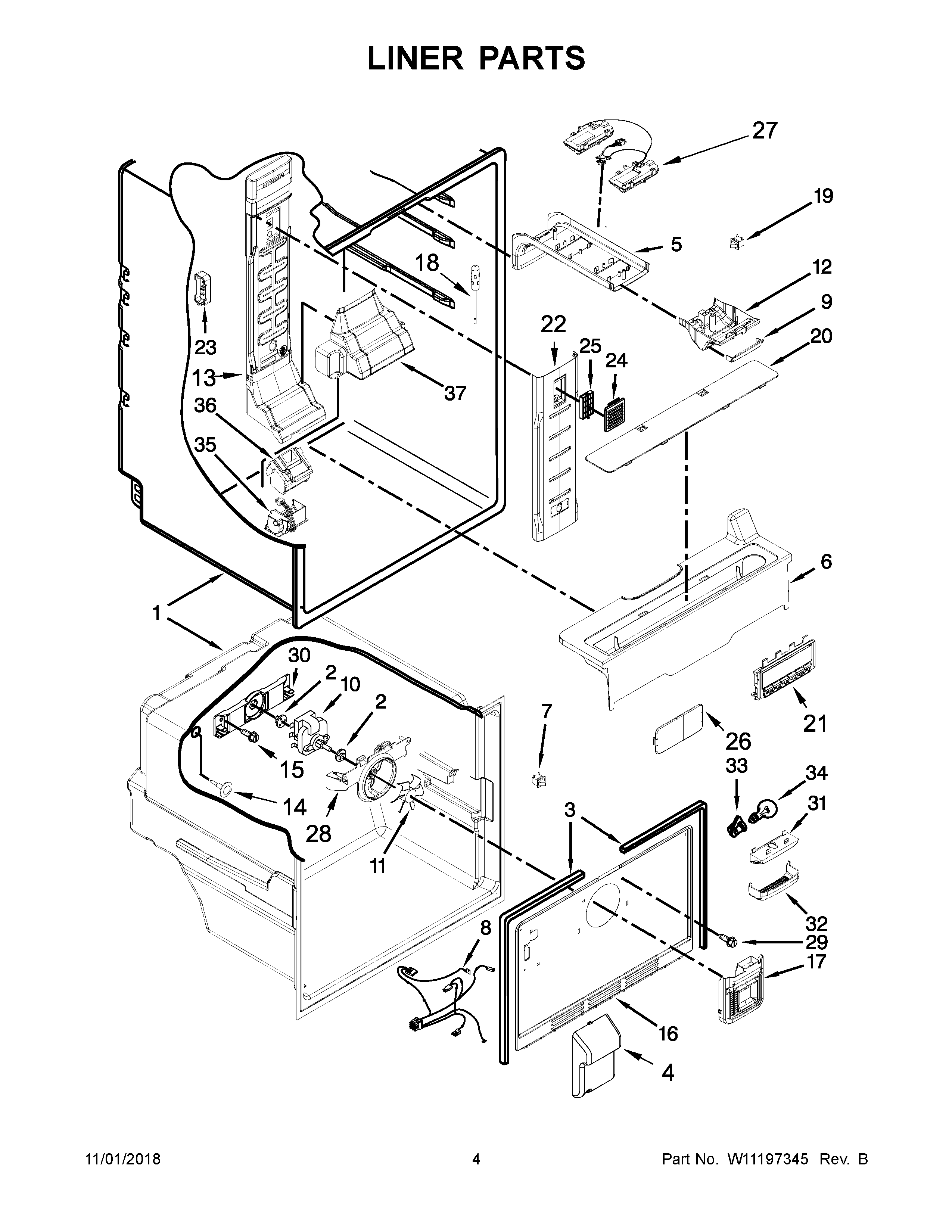

WRF560SFHV00 03 – LINER PARTS

WRF560SFHV00 03 – LINER PARTS

Written by

in

WRF560SFHV00 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	WPW10339203 Whirlpool Refrigerator Tube Cover
5	W10469878 Whirlpool Refrigerator Housing
6	W10798439 Whirlpool Refrigerator Reservoir
7	W11396033 Whirlpool Refrigerator Rocker Switch
8	WPW10487766 Whirlpool Refrigerator Wire Harness
9	W10360550 Whirlpool Refrigerator Front Cover
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	WPW10435634 Whirlpool Refrigerator Housing
13	W11508229 Whirlpool Refrigerator Air Tower
14	WP941839 Whirlpool Refrigerator Button Plug
15	WP488163 Whirlpool Refrigerator Screw
16	W10300900 Whirlpool Refrigerator Evaporator Cover
17	W11227949 Whirlpool Refrigerator Air Tower
18	WPW10384183 Whirlpool Thermistor
19	W11384469 Whirlpool Door Switch
20	W10413160 Whirlpool Refrigerator Cover
21	W11082785-includeCORE Whirlpool W11082785 Refrigerator Electronic Control Board + Core
22	WPW10356895 Whirlpool Refrigerator Cover
23	WPW10425252 Whirlpool Refrigerator Cover
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	W10336009 Whirlpool Refrigerator Cover
27	W10889448 Whirlpool Refrigerator Module
28	W10850162 Whirlpool Refrigerator Orifice
29	WP489478 Whirlpool Refrigerator Screw
30	2254454 Whirlpool Refrigerator Bracket
31	WPW10313917 Whirlpool Refrigerator Housing
32	WPW10313918 Whirlpool Refrigerator Light Lens
33	W11661565 Whirlpool Refrigerator Socket
34	W10914194 Whirlpool Refrigerator Light Bulb
35	DAMPER
36	W11133099 Whirlpool Refrigerator Cover
37	WPW10314204 Whirlpool Refrigerator Housing
