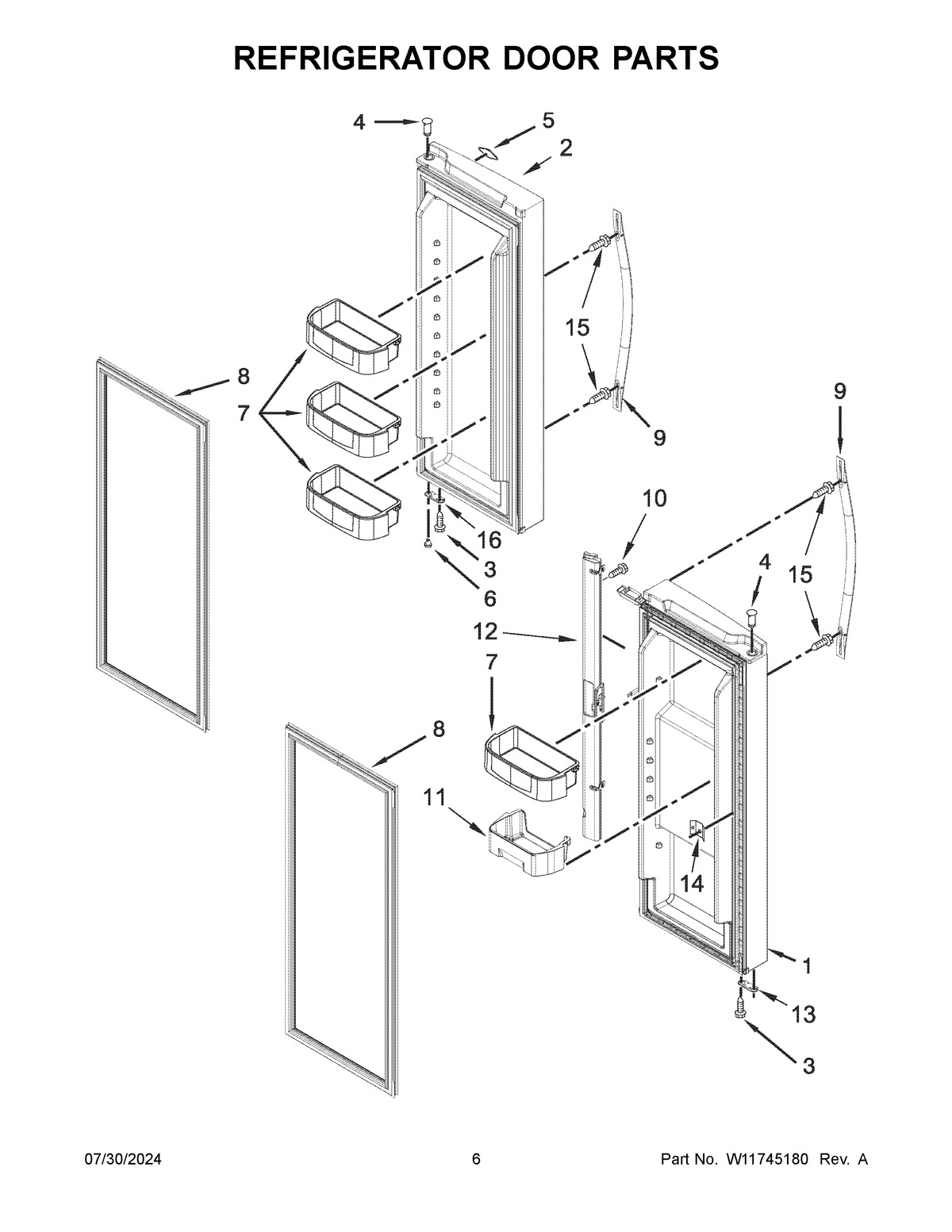

WRF560SFHW05 04 – REFRIGERATOR DOOR PARTS

WRF560SFHW05 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SFHW05 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ALW10858415 Whirlpool Refrigerator FIP Door
1LW10721544 Whirlpool Refrigerator DOR-FIP
2ALW10858417 Whirlpool Refrigerator Door FIP
2LW10721540 Whirlpool Refrigerator Door Assembly
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8AGASKET-FIP
8W10460612 Whirlpool Refrigerator Door Gasket
9W11127179 Whirlpool Refrigerator Handle
9AW11123099 Whirlpool Refrigerator Exterior Door Handle
10W10854958 Whirlpool Refrigerator Screw
11WPW10326335 Whirlpool Refrigerator Cantilever Bin
12AWPW10624450 Whirlpool Refrigerator Mullion Rail
12WPW10624451 Whirlpool Refrigerator Mullion Rail
13W11745278 Whirlpool Bracket
14WP939101 Whirlpool Refrigerator Plate
15WPW10661886 Whirlpool Refrigerator Door Handle Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
