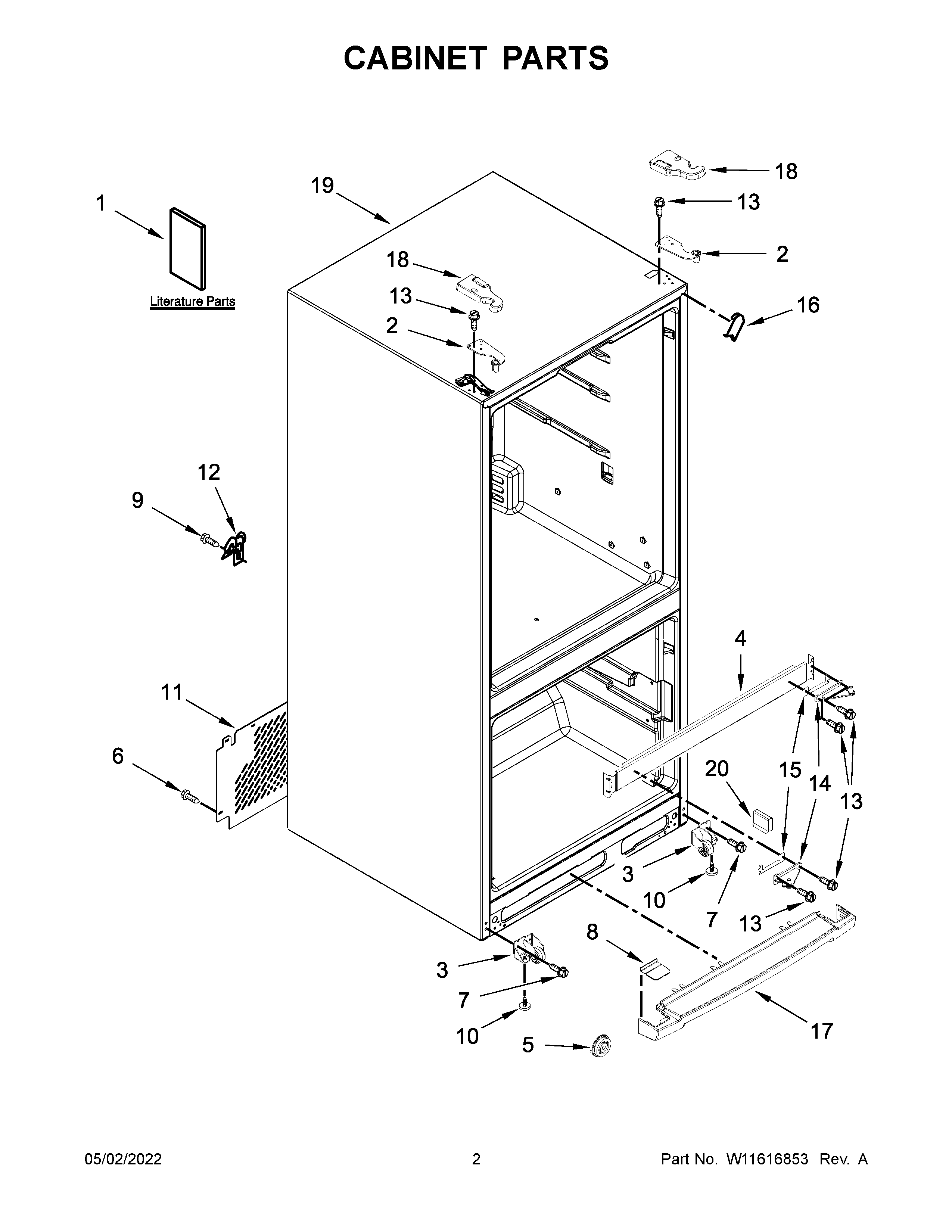

WRF560SFHZ01 02 – CABINET PARTS

WRF560SFHZ01 02 – CABINET PARTS

Written by

in

WRF560SFHZ01 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1BENERGY GUIDE
1AUSE AND CARE GUIDE
2AW11573371 Whirlpool Refrigerator Door Hinge
2W10546298 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
5W10331226 Whirlpool Refrigerator Clip
6WP488729 Whirlpool Refrigerator Door Screw
7W10803534 Whirlpool Screw
8WPW10353932 Whirlpool Refrigerator Grille Endcap
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11W11700600 Whirlpool Unit Cover
12W11234470 Whirlpool Refrigerator Clamp
13WP489497 Whirlpool Screw
14AW11417064 Whirlpool Refrigerator Door Hinge
14W10770878 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16W11219642 Whirlpool Refrigerator Filler
17WPW10353935 Whirlpool Refrigerator Grille
18AW10465767 Whirlpool Refrigerator Cover
18W10465768 Whirlpool Hinge Cover
19CABINET (NOT A SERVICEABLE PART)
20WP2174706 Whirlpool Refrigerator Pin Hitch
