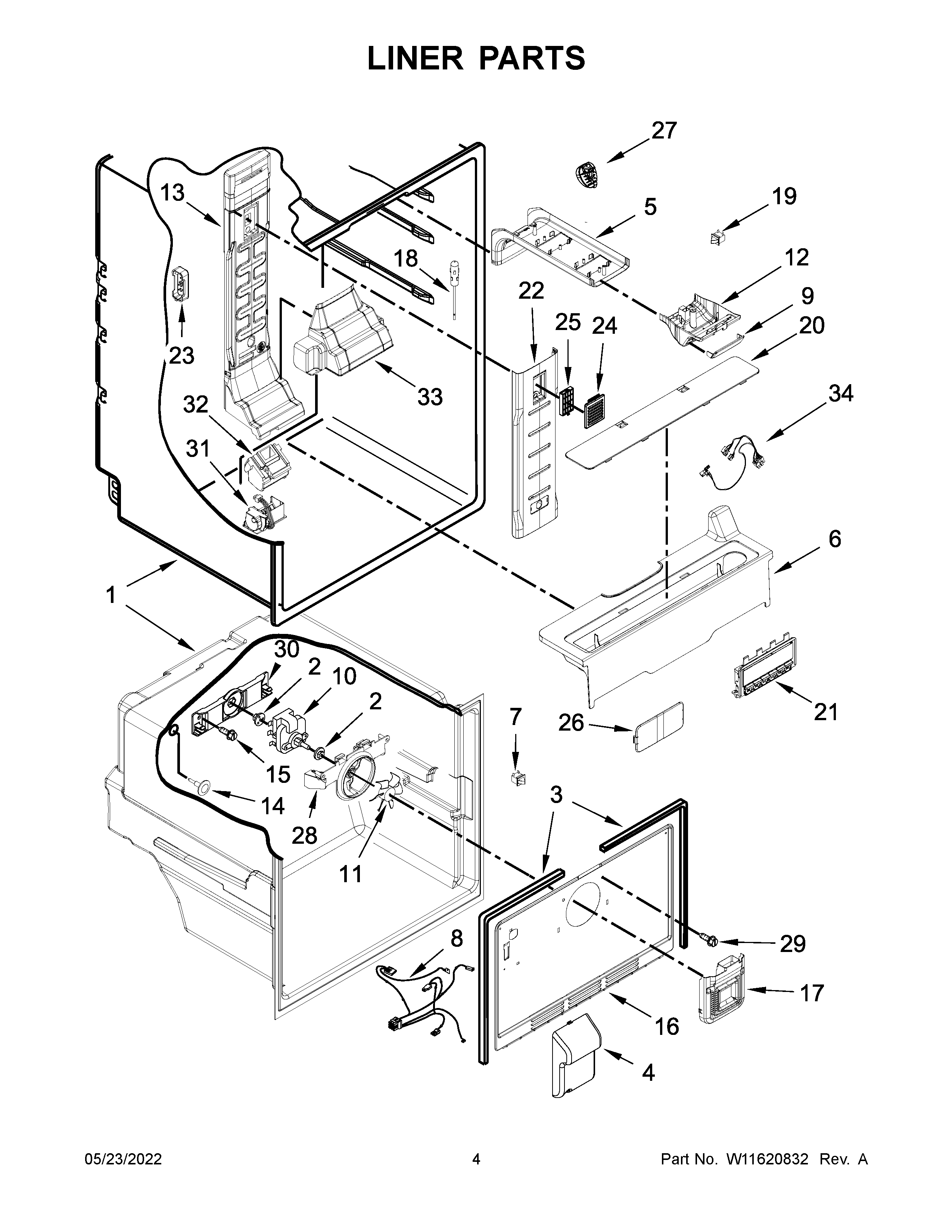

WRF560SFHZ02 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	COVER
5	HOUSING, LIGHT
6	W10798439 Whirlpool Refrigerator Reservoir
7	W11396033 Whirlpool Refrigerator Rocker Switch
8	W11609466 Whirlpool Refrigerator Wire Harness
9	W10360550 Whirlpool Refrigerator Front Cover
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	WPW10435634 Whirlpool Refrigerator Housing
13	W11508229 Whirlpool Refrigerator Air Tower
14	WP941839 Whirlpool Refrigerator Button Plug
15	WP488163 Whirlpool Refrigerator Screw
16	W10300900 Whirlpool Refrigerator Evaporator Cover
17	W11227949 Whirlpool Refrigerator Air Tower
18	WPW10384183 Whirlpool Thermistor
19	W11123941 Whirlpool Refrigerator Switch
20	W10413160 Whirlpool Refrigerator Cover
22	WPW10356895 Whirlpool Refrigerator Cover
23	WPW10425252 Whirlpool Refrigerator Cover
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	W10336009 Whirlpool Refrigerator Cover
27	MODULE
28	W10850162 Whirlpool Refrigerator Orifice
29	WP489478 Whirlpool Refrigerator Screw
30	2254454 Whirlpool Refrigerator Bracket
31	DAMPER
32	W11133099 Whirlpool Refrigerator Cover
33	WPW10314204 Whirlpool Refrigerator Housing
34	ASSEMBLY, REFRIGERATOR LIGHT WIRE
