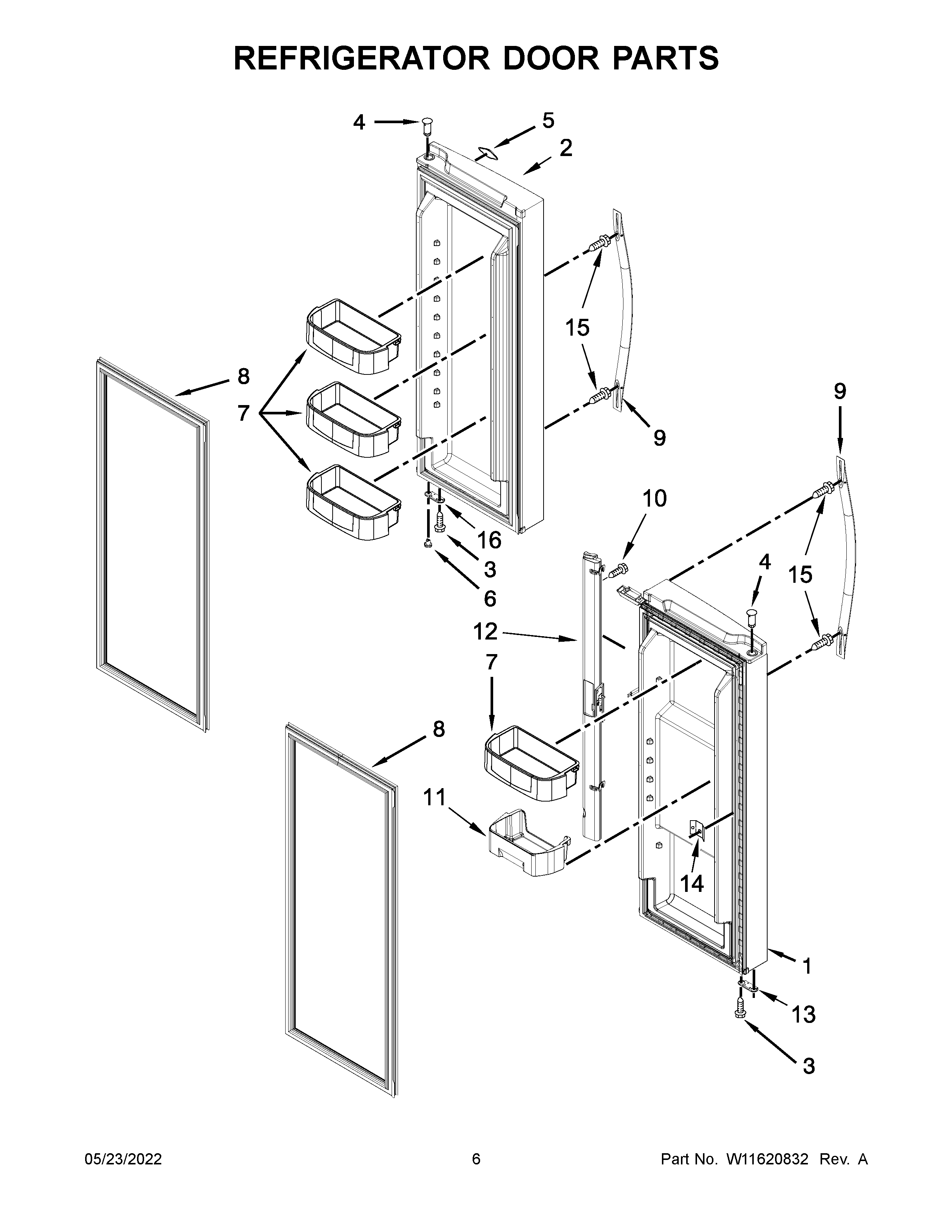

WRF560SFHZ02 04 – REFRIGERATOR DOOR PARTS

WRF560SFHZ02 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SFHZ02 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10858415 Whirlpool Refrigerator FIP Door
2LW10858417 Whirlpool Refrigerator Door FIP
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8GASKET-FIP
9W11123099 Whirlpool Refrigerator Exterior Door Handle
10W10854958 Whirlpool Refrigerator Screw
11WPW10326335 Whirlpool Refrigerator Cantilever Bin
12WPW10624450 Whirlpool Refrigerator Mullion Rail
13W11745278 Whirlpool Bracket
14WP939101 Whirlpool Refrigerator Plate
15WPW10661886 Whirlpool Refrigerator Door Handle Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
