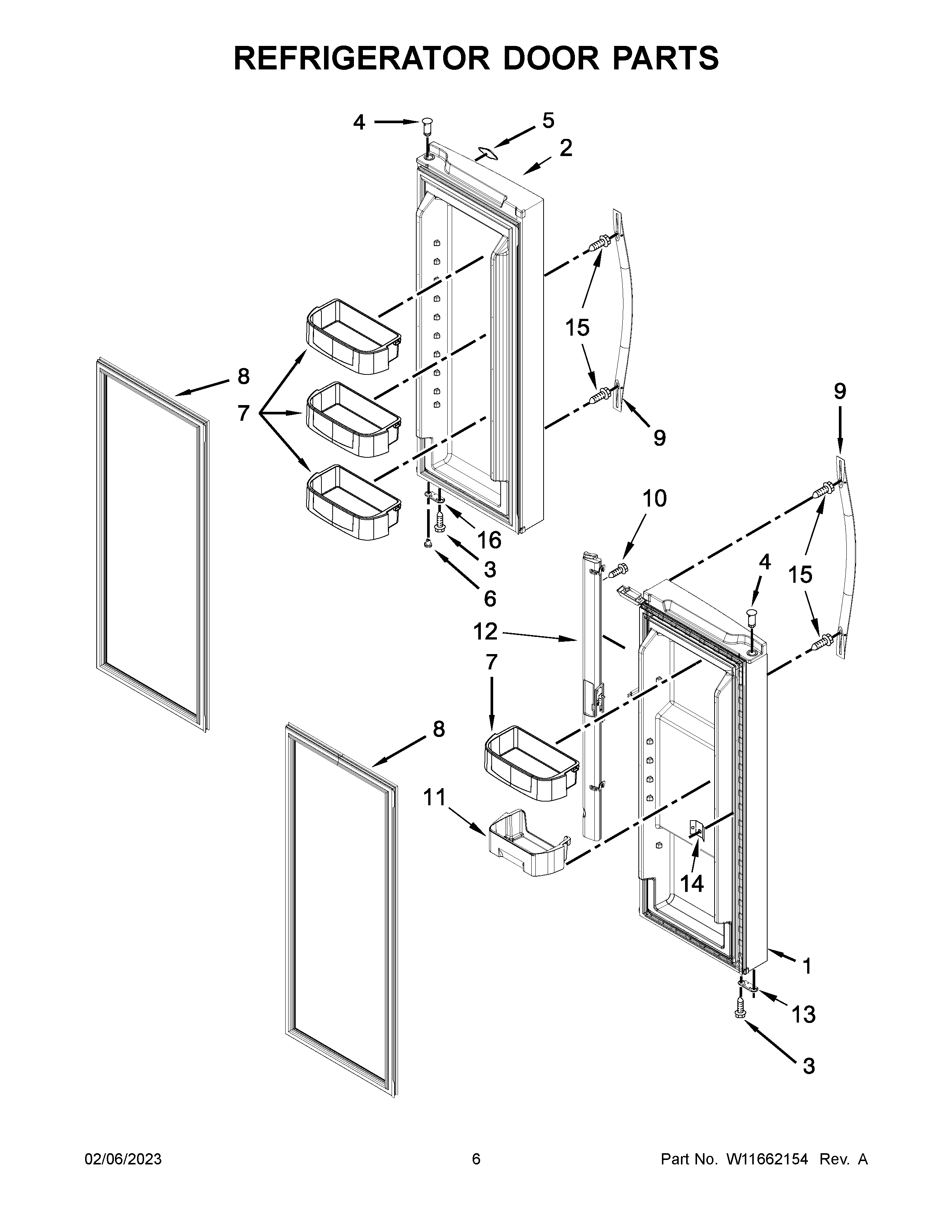

WRF560SFHZ03 04 – REFRIGERATOR DOOR PARTS

WRF560SFHZ03 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SFHZ03 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BLW10858415 Whirlpool Refrigerator FIP Door
1ALW10865734 Whirlpool Refrigerator DOR-FIP
1LW10721544 Whirlpool Refrigerator DOR-FIP
2BLW10858417 Whirlpool Refrigerator Door FIP
2ALW10865738 Whirlpool Refrigerator DOR FIP
2LW10721540 Whirlpool Refrigerator Door Assembly
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8W10460612 Whirlpool Refrigerator Door Gasket
8BGASKET-FIP
8AW10460610 Whirlpool Refrigerator FIP Gasket
9BW11123099 Whirlpool Refrigerator Exterior Door Handle
9AW11125624 Whirlpool Door Handle
9W11127179 Whirlpool Refrigerator Handle
10W10854958 Whirlpool Refrigerator Screw
11WPW10326335 Whirlpool Refrigerator Cantilever Bin
12BWPW10624450 Whirlpool Refrigerator Mullion Rail
12AW11692845 Whirlpool Mullen Rail
12WPW10624451 Whirlpool Refrigerator Mullion Rail
13W11745278 Whirlpool Bracket
14WP939101 Whirlpool Refrigerator Plate
15WPW10661886 Whirlpool Refrigerator Door Handle Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
