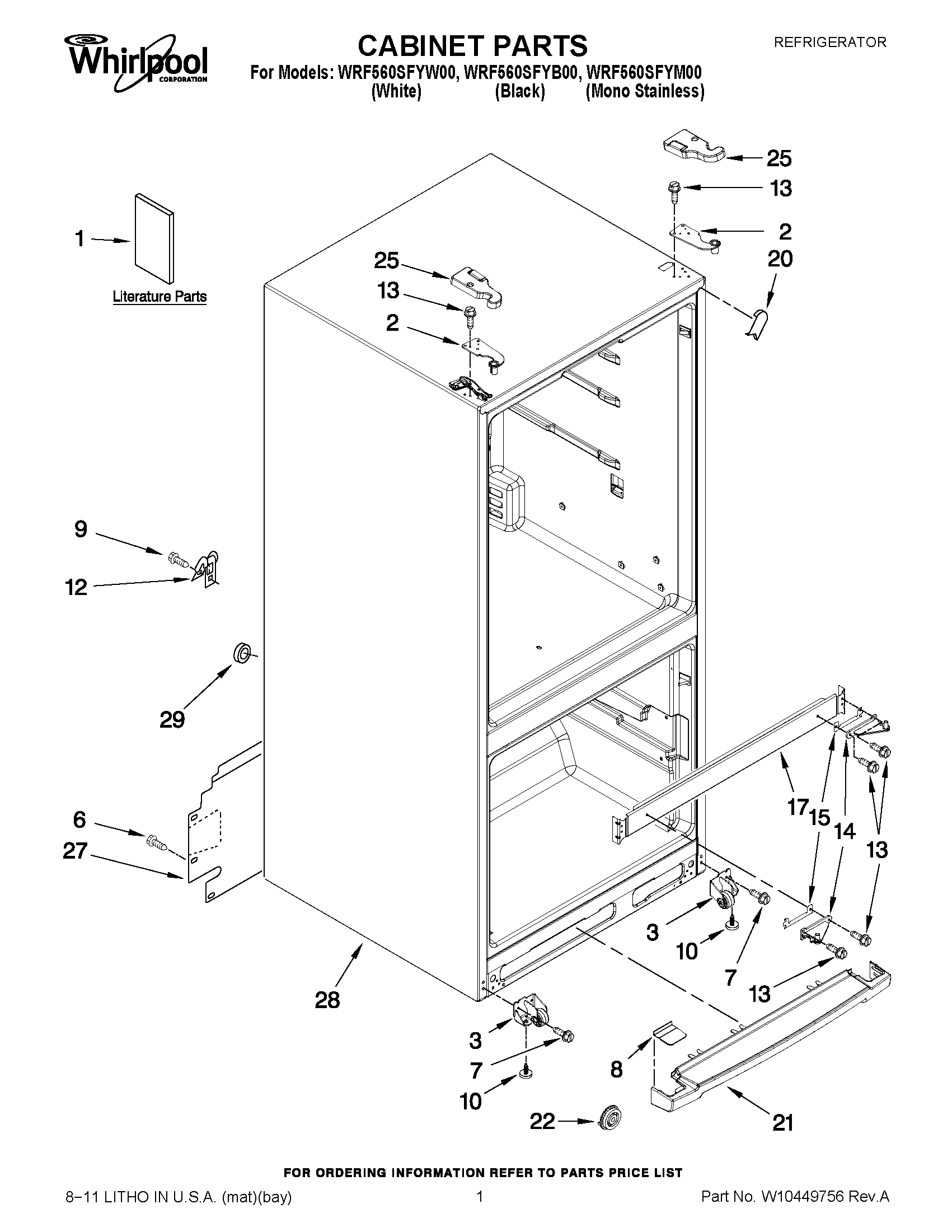

WRF560SFYB00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY LABEL
2	W10546298 Whirlpool Refrigerator Door Hinge
2	W11573371 Whirlpool Refrigerator Door Hinge
3	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
6	WP489427 Whirlpool Refrigerator Screw
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8	W10353930 Whirlpool Refrigerator Grill End Cap
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WPW10521411 Whirlpool Refrigerator Door Hinge
14	WPW10521409 Whirlpool Door Hinge Assembly
15	WP2183852 Whirlpool Refrigerator Shim
20	W11252732 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
20	W10851579 Whirlpool Refrigerator Filler
21	WPW10300127 Whirlpool Refrigerator Grille
21	WPW10353933 Whirlpool Refrigerator Grille
21	WPW10353935 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
25	W10406928 Whirlpool Refrigerator Cover
25	W10465770 Whirlpool Hinge Cover
25	W10465764 Whirlpool Refrigerator Cover
25	W10465765 Whirlpool Refrigerator Cover
25	W10406590 Whirlpool Refrigerator Cover
25	W10465768 Whirlpool Hinge Cover
27	COVER, UNIT
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
