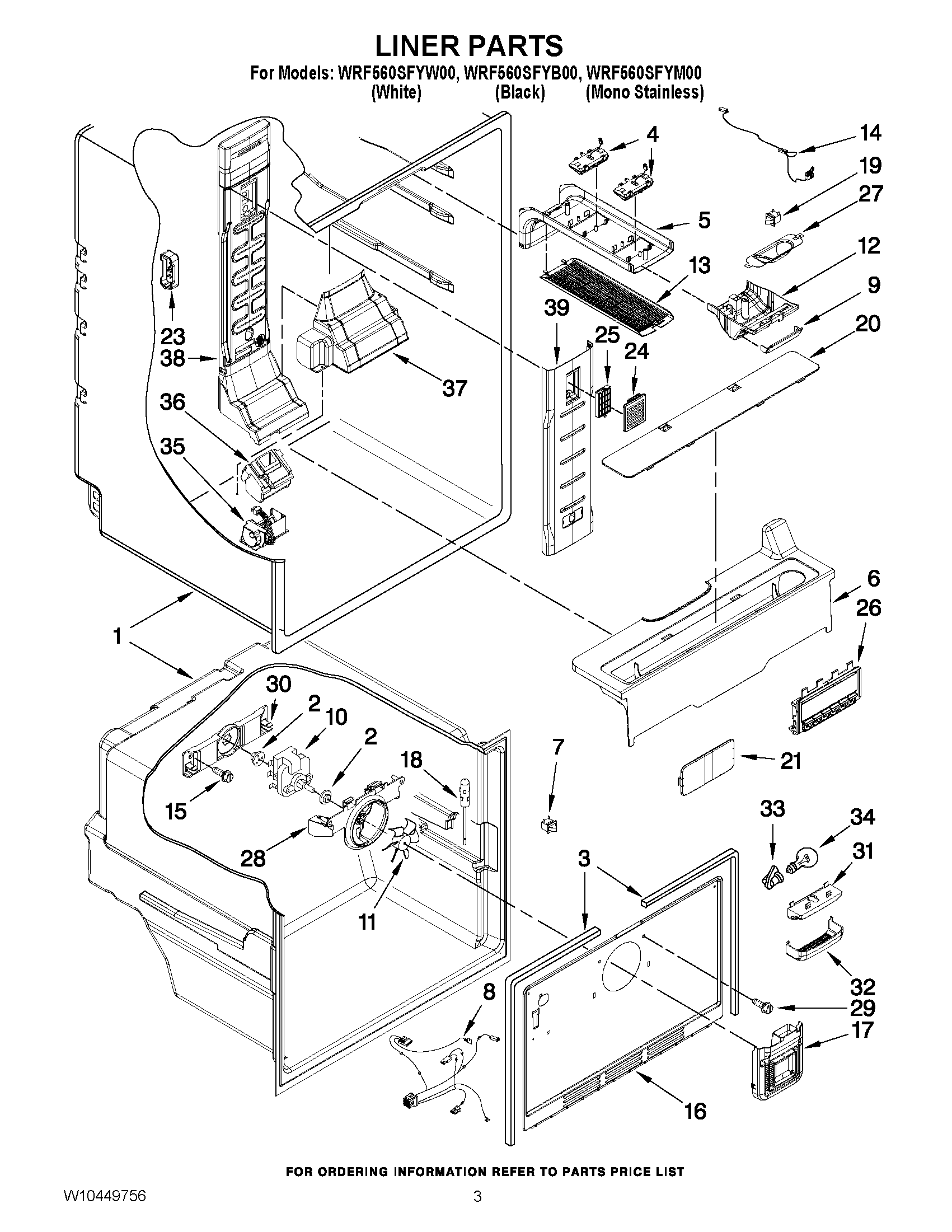

WRF560SFYB00 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WPW10360497 Whirlpool Refrigerator Module
5	W10469878 Whirlpool Refrigerator Housing
6	W10798439 Whirlpool Refrigerator Reservoir
7	W11396033 Whirlpool Refrigerator Rocker Switch
8	WPW10283809 Whirlpool Refrigerator Wire Harness
9	W10360550 Whirlpool Refrigerator Front Cover
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	WPW10435634 Whirlpool Refrigerator Housing
13	W10404442 Whirlpool Cover Assembly
14	W10421350 Whirlpool Refrigerator Wire Harness
15	WP488163 Whirlpool Refrigerator Screw
16	W10300900 Whirlpool Refrigerator Evaporator Cover
17	W11227949 Whirlpool Refrigerator Air Tower
18	THERMISTOR-REFRIGERATOR
19	W11384469 Whirlpool Door Switch
20	W10413160 Whirlpool Refrigerator Cover
21	W11082834-includeCORE Whirlpool W11082834 Refrigerator Electronic Control Board + Core
23	WPW10425252 Whirlpool Refrigerator Cover
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	W10336009 Whirlpool Refrigerator Cover
27	WPW10314195 Whirlpool Refrigerator Shield
28	W10850162 Whirlpool Refrigerator Orifice
29	WP489478 Whirlpool Refrigerator Screw
30	2254454 Whirlpool Refrigerator Bracket
31	WPW10313917 Whirlpool Refrigerator Housing
32	WPW10313918 Whirlpool Refrigerator Light Lens
33	WPW10191429 Whirlpool Refrigerator Socket
34	WPA3073101 Whirlpool Light Bulb
35	WPW10257451 Whirlpool Refrigerator Damper
36	W11133099 Whirlpool Refrigerator Cover
37	WPW10314204 Whirlpool Refrigerator Housing
38	W11508229 Whirlpool Refrigerator Air Tower
39	WPW10356895 Whirlpool Refrigerator Cover
