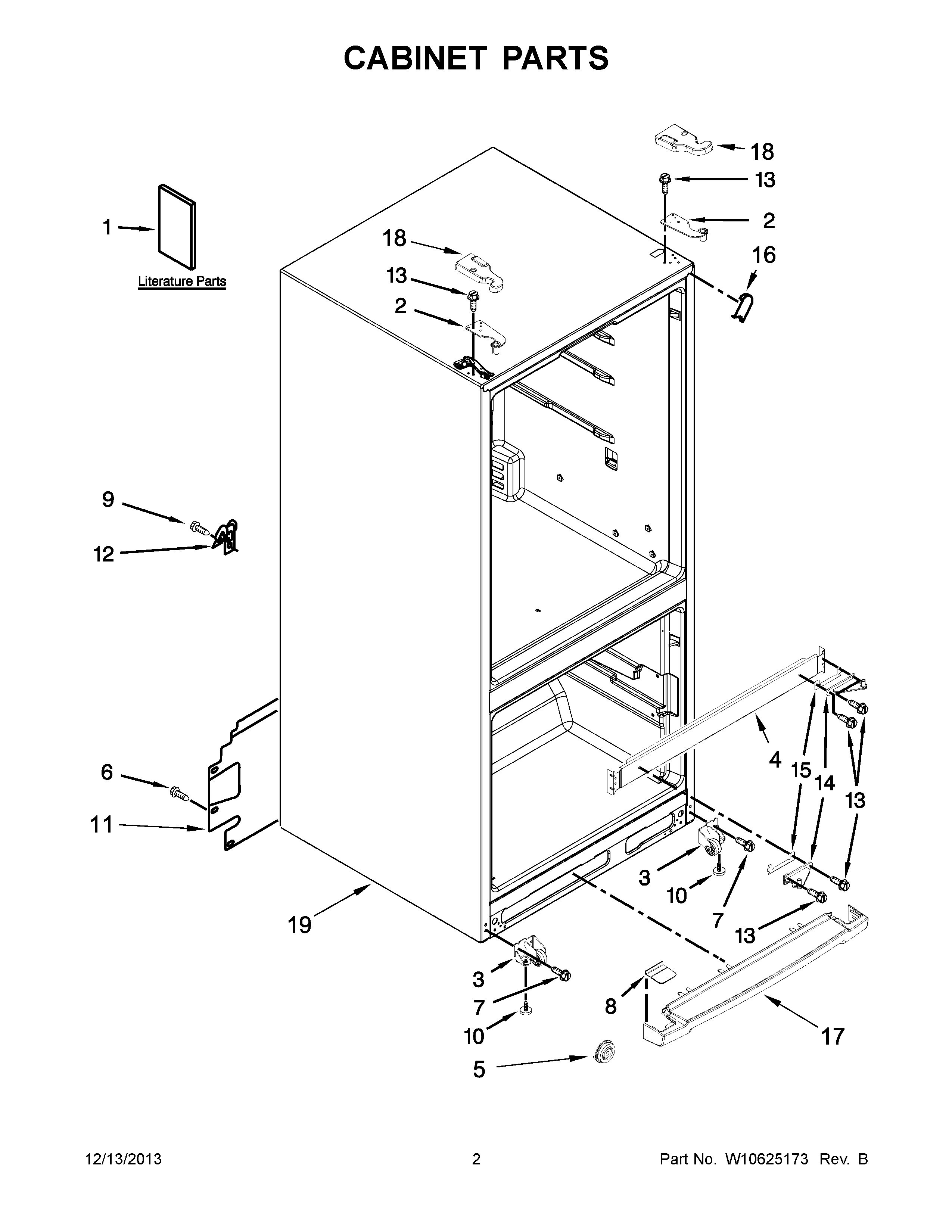

WRF560SFYB01 02 – CABINET PARTS

WRF560SFYB01 02 – CABINET PARTS

Written by

in

WRF560SFYB01 02 – CABINET PARTS

Products

PositionProduct
1SERVICE AND WIRING SHEET
1ENERGY LABEL
1USE & CARE GUIDE
2W11573371 Whirlpool Refrigerator Door Hinge
2W10546298 Whirlpool Refrigerator Door Hinge
3WPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
5W10331226 Whirlpool Refrigerator Clip
6WP488729 Whirlpool Refrigerator Door Screw
8W10353930 Whirlpool Refrigerator Grill End Cap
8WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8WPW10353932 Whirlpool Refrigerator Grille Endcap
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11W10636716 Whirlpool Refrigerator Cover Unit
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14WPW10521409 Whirlpool Door Hinge Assembly
14WPW10521411 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16WPW10283959 Whirlpool Refrigerator Filler
16W11252732 Whirlpool Refrigerator Filler
16W10851579 Whirlpool Refrigerator Filler
17WPW10353935 Whirlpool Refrigerator Grille
17WPW10353933 Whirlpool Refrigerator Grille
17WPW10300127 Whirlpool Refrigerator Grille
18W10465765 Whirlpool Refrigerator Cover
18W10465764 Whirlpool Refrigerator Cover
18W10465771 Whirlpool Refrigerator Cover
18W10465770 Whirlpool Hinge Cover
18W10465767 Whirlpool Refrigerator Cover
18W10465768 Whirlpool Hinge Cover
19CABINET (NOT A SERVICEABLE PART)
