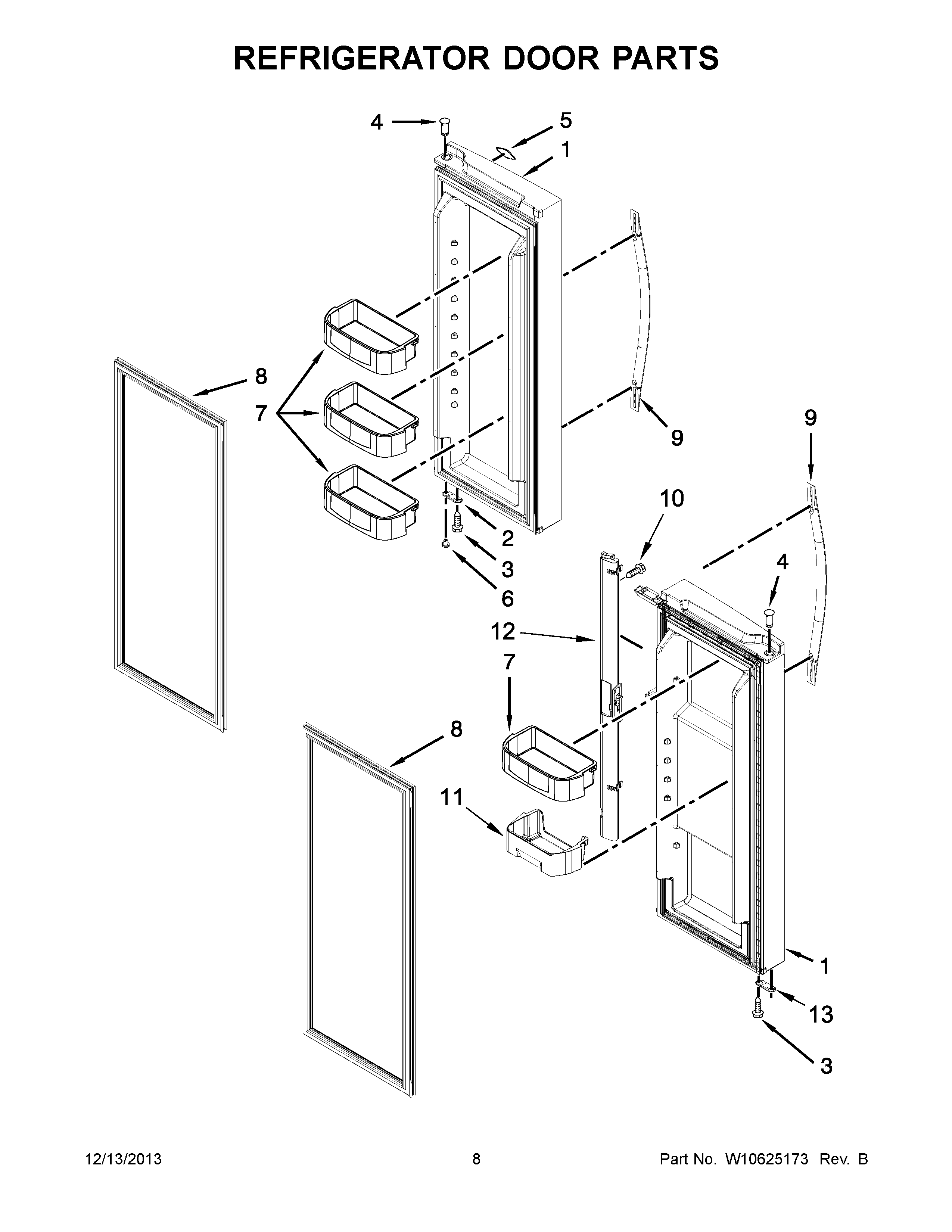

WRF560SFYB01 05 – REFRIGERATOR DOOR PARTS

WRF560SFYB01 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SFYB01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10413524 Whirlpool Refrigerator Dor-Fip Left Side
1LW10393587 Whirlpool Dishwasher Left Side DOR-FIP White
1LW10413522 Whirlpool Dishwasher Foam In Place Left Side Black
1LW10413519 Whirlpool Refrigerator Door Flip Right Side, Mono Stainless
1LW10413518 Whirlpool Door Right Side Black Foam In Place
1LW10353181 Whirlpool Refrigerator Door-Fip White, Right Side
2WPW10397055 Whirlpool Refrigerator Hinge Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8GASKET-FIP
8W10460610 Whirlpool Refrigerator FIP Gasket
8W10460612 Whirlpool Refrigerator Door Gasket
9W10830130 Whirlpool Refrigerator Handle
9W10830136 Whirlpool Refrigerator Handle
9W11459378 Whirlpool Refrigerator Handle
10W10854958 Whirlpool Refrigerator Screw
11WPW10326335 Whirlpool Refrigerator Cantilever Bin
12WPW10624451 Whirlpool Refrigerator Mullion Rail
12W11692845 Whirlpool Mullen Rail
12WPW10624450 Whirlpool Refrigerator Mullion Rail
13W11745278 Whirlpool Bracket
