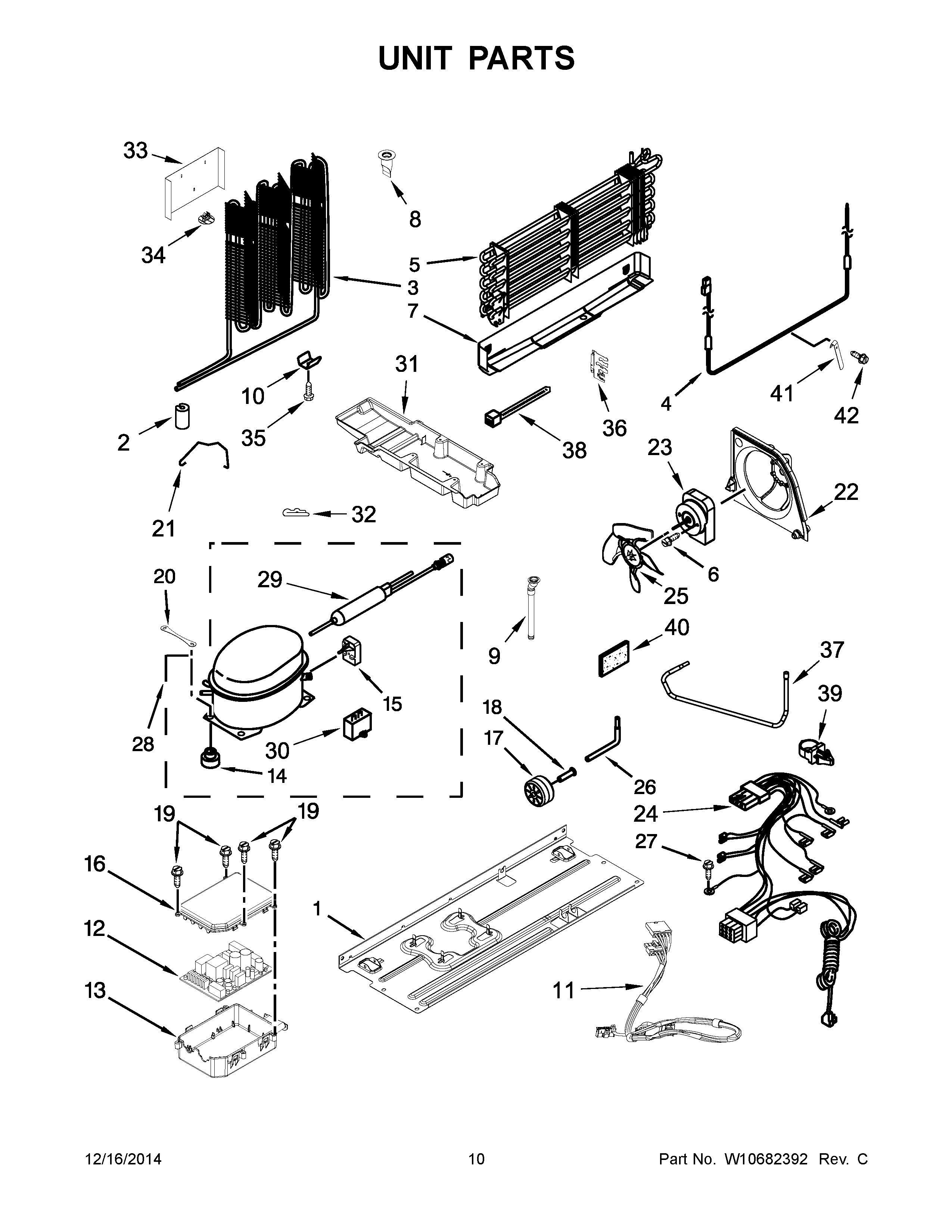

WRF560SFYB02 06 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10852725 Whirlpool Refrigerator Grommet
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10436849 Whirlpool Refrigerator Heater
5	WPW10321158 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
9	W11190084 Whirlpool Refrigerator Drain Tube
10	W10683556 Whirlpool Refrigerator Clip
11	WPW10424230 Whirlpool Refrigerator Wire Harness
12	W11035836-includeCORE Whirlpool W11035836 Refrigerator Electronic Control Board + Core
13	2323186 Whirlpool Refrigerator Housing
14	WPW10169124 Whirlpool Refrigerator Grommet
15	START-DEV
16	W10313215 Whirlpool Refrigerator Box Cover
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10171469 Whirlpool Refrigerator Screw
20	W10236396 Whirlpool Refrigerator Strap
21	W11661170 Whirlpool Clip
22	WP2315541 Whirlpool Refrigerator Air Baffle
23	W11563806 Whirlpool Refrigerator Condenser Motor
24	W10390445 Whirlpool Refrigerator Wire Harness
25	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
26	W11676464 Whirlpool Tube
27	WP489128 Whirlpool Refrigerator Screw
28	WPW10507886 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10662129 Whirlpool Refrigerator Run Capacitor
31	W10890667 Whirlpool Refrigerator Drip Pan
32	W11501419 Whirlpool Refrigerator Clip
33	W10349514 Whirlpool Refrigerator Air Baffle
34	W10296661 Whirlpool Refrigerator Clip
35	W11544659 Whirlpool Refrigerator Screw
36	W10314197 Whirlpool Refrigerator Bracket
37	W10510988 Whirlpool Refrigerator Tube
38	WPW10339879 Whirlpool Wire Tie
39	2219077 Whirlpool Refrigerator Clip
40	W11553819 Whirlpool Refrigerator Insulation
41	W10856574 Whirlpool Refrigerator Heat Probe
42	WP489478 Whirlpool Refrigerator Screw
