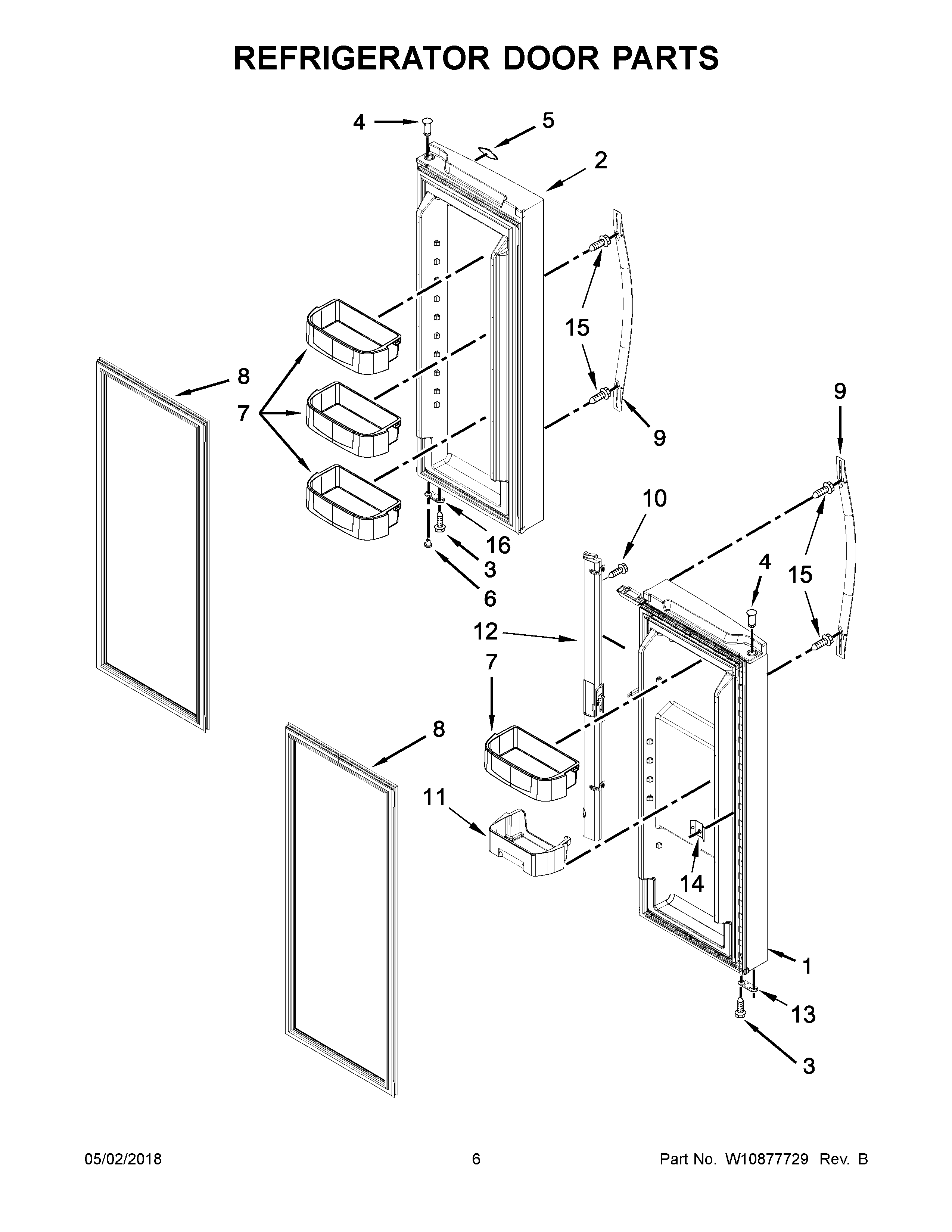

WRF560SFYB05 04 – REFRIGERATOR DOOR PARTS

WRF560SFYB05 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SFYB05 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BLW10413524 Whirlpool Refrigerator Dor-Fip Left Side
1LW10393587 Whirlpool Dishwasher Left Side DOR-FIP White
1ALW10413522 Whirlpool Dishwasher Foam In Place Left Side Black
2BLW10413519 Whirlpool Refrigerator Door Flip Right Side, Mono Stainless
2ALW10413518 Whirlpool Door Right Side Black Foam In Place
2LW10353181 Whirlpool Refrigerator Door-Fip White, Right Side
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8BGASKET-FIP
8AW10460610 Whirlpool Refrigerator FIP Gasket
8W10460612 Whirlpool Refrigerator Door Gasket
9AW10830130 Whirlpool Refrigerator Handle
9W10830136 Whirlpool Refrigerator Handle
9BW11459378 Whirlpool Refrigerator Handle
10W10854958 Whirlpool Refrigerator Screw
11WPW10326335 Whirlpool Refrigerator Cantilever Bin
12BWPW10624450 Whirlpool Refrigerator Mullion Rail
12AW11692845 Whirlpool Mullen Rail
12WPW10624451 Whirlpool Refrigerator Mullion Rail
13W11745278 Whirlpool Bracket
14WP939101 Whirlpool Refrigerator Plate
15WPW10170540 Whirlpool Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
