WRF560SFYE03 02 – CABINET PARTS

WRF560SFYE03 02 – CABINET PARTS

Written by

in

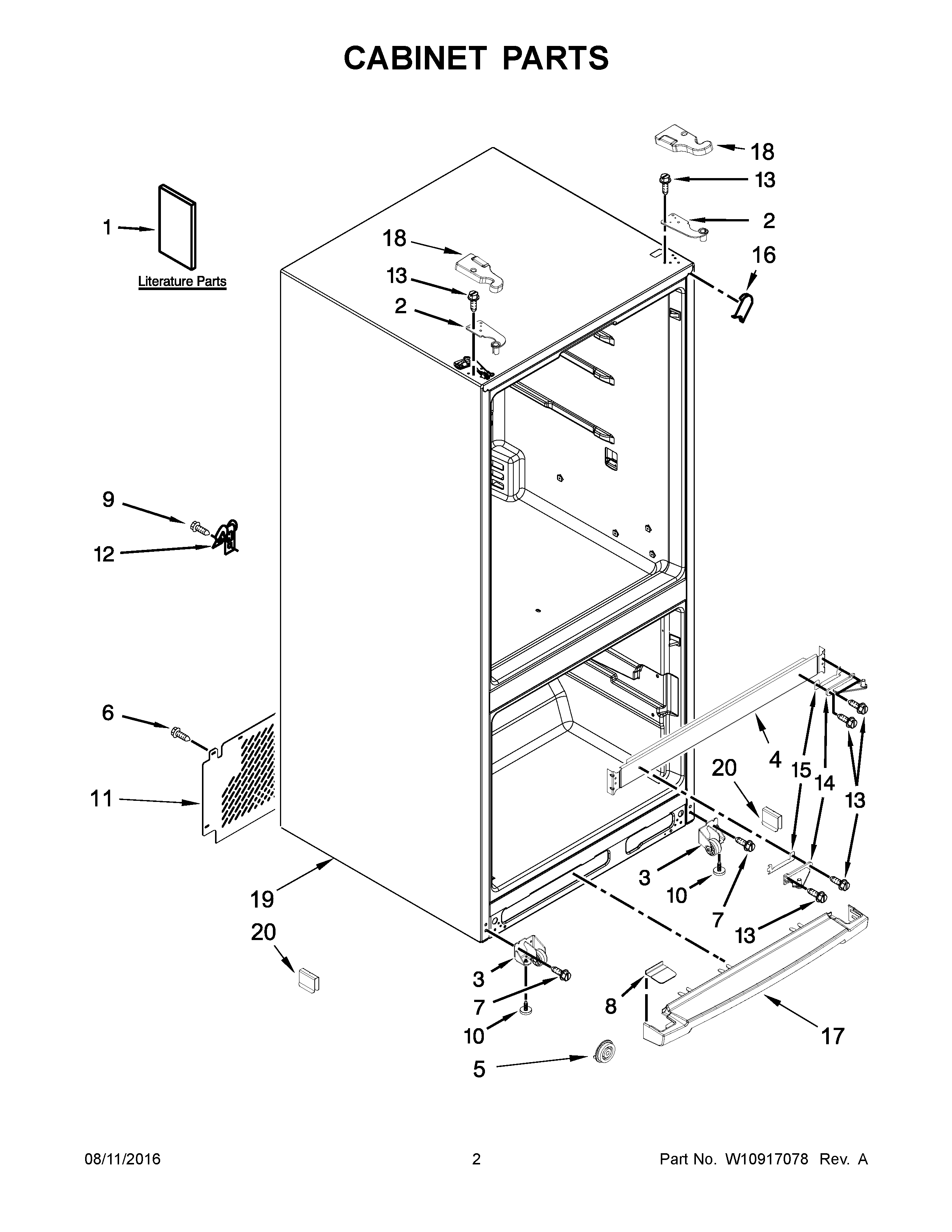

WRF560SFYE03 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1BUSE & CARE GUIDE
1TECH SHEET
2AW11573371 Whirlpool Refrigerator Door Hinge
2W10546298 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
5W10331226 Whirlpool Refrigerator Clip
6WP488729 Whirlpool Refrigerator Door Screw
8W10353930 Whirlpool Refrigerator Grill End Cap
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11W10636716 Whirlpool Refrigerator Cover Unit
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14W10770878 Whirlpool Refrigerator Door Hinge
14AW11417064 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16W11252732 Whirlpool Refrigerator Filler
17WPW10353933 Whirlpool Refrigerator Grille
18AW10465770 Whirlpool Hinge Cover
18W10465771 Whirlpool Refrigerator Cover
19CABINET (NOT A SERVICEABLE PART)
20WP2174706 Whirlpool Refrigerator Pin Hitch
