WRF560SFYH03 02 – CABINET PARTS

WRF560SFYH03 02 – CABINET PARTS

Written by

in

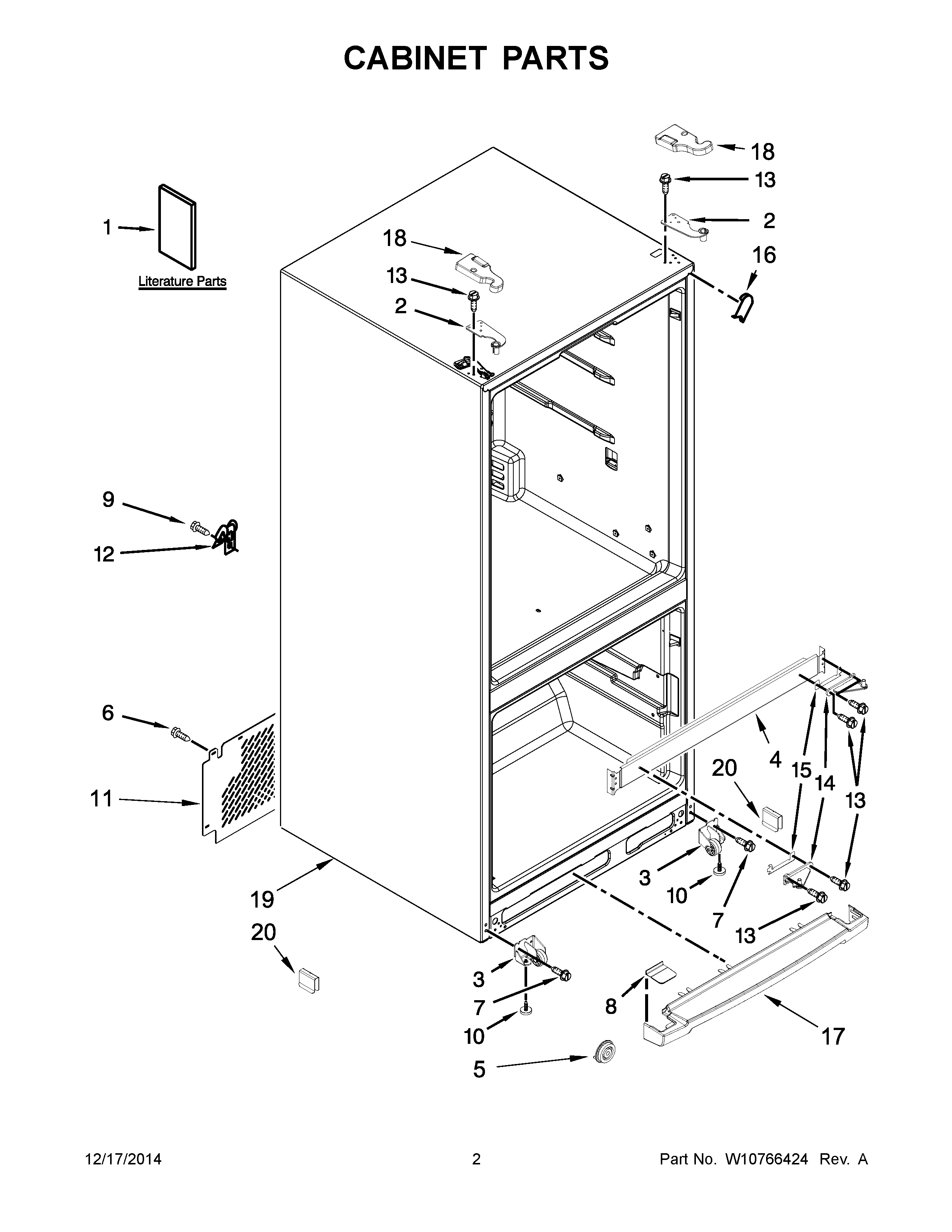

WRF560SFYH03 02 – CABINET PARTS

Products

PositionProduct
1SERVICE AND WIRING SHEET
1AENERGY GUIDE
1BUSE & CARE GUIDE
2AW11573371 Whirlpool Refrigerator Door Hinge
2W10546298 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
5W10331226 Whirlpool Refrigerator Clip
6WP488729 Whirlpool Refrigerator Door Screw
8WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11W10636716 Whirlpool Refrigerator Cover Unit
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14AWPW10521409 Whirlpool Door Hinge Assembly
14WPW10521411 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16WPW10283959 Whirlpool Refrigerator Filler
17WPW10300127 Whirlpool Refrigerator Grille
18AW10465764 Whirlpool Refrigerator Cover
18W10465765 Whirlpool Refrigerator Cover
19CABINET (NOT A SERVICEABLE PART)
20WP2174706 Whirlpool Refrigerator Pin Hitch
