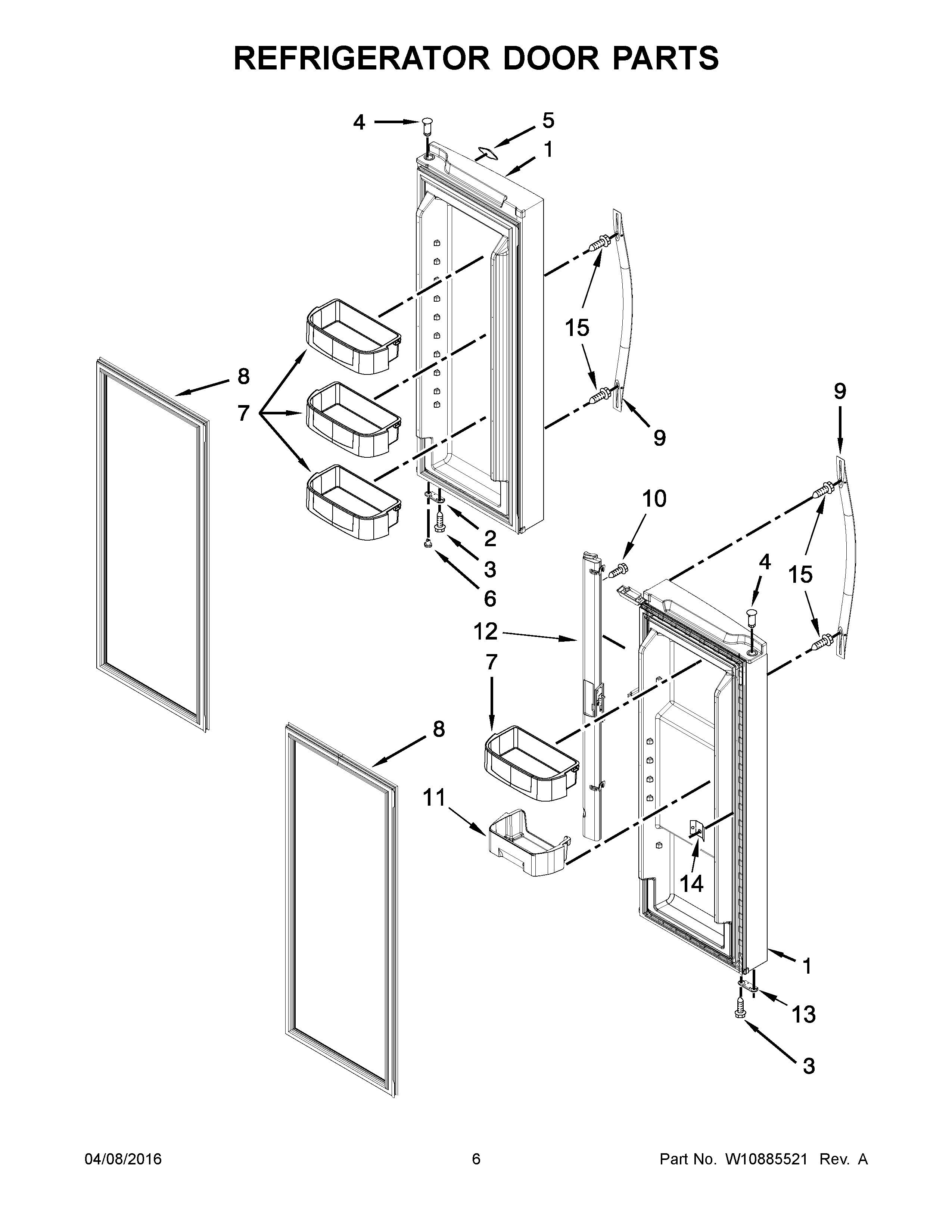

WRF560SFYH04 04 – REFRIGERATOR DOOR PARTS

WRF560SFYH04 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SFYH04 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10393587 Whirlpool Dishwasher Left Side DOR-FIP White
1ALW10353181 Whirlpool Refrigerator Door-Fip White, Right Side
2WPW10397055 Whirlpool Refrigerator Hinge Bracket
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8W10460612 Whirlpool Refrigerator Door Gasket
9W11459378 Whirlpool Refrigerator Handle
10W10854958 Whirlpool Refrigerator Screw
11WPW10326335 Whirlpool Refrigerator Cantilever Bin
12WPW10624451 Whirlpool Refrigerator Mullion Rail
13W11745278 Whirlpool Bracket
14WP939101 Whirlpool Refrigerator Plate
15WPW10170540 Whirlpool Screw
