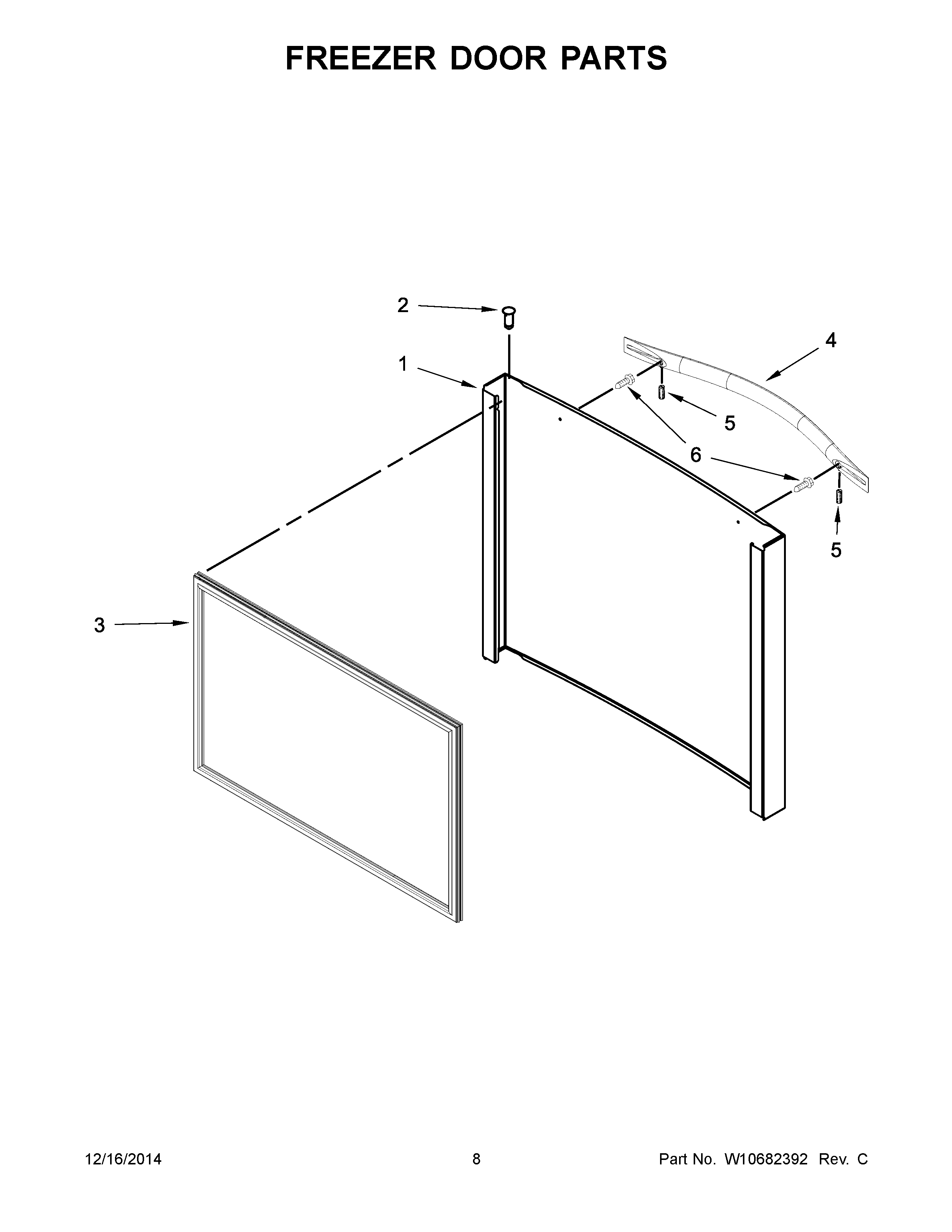

WRF560SFYM02 05 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEMS 2 & 3) (WHITE)
1ADOOR, FREEZER (INCLUDES ITEMS 2 & 3) (BLACK)
1BLW10433608 Whirlpool Refrigerator Door FIP MS
2W11189115 Whirlpool Refrigerator Thimble
3BW10836785 Whirlpool Door Gasket
3AW11625017 Whirlpool Refrigerator FIP Gasket
3W10460611 Whirlpool Door Gasket
4W10865840 Whirlpool Refrigerator Handle
4AW10686483 Whirlpool Refrigerator Handle
4BW10830683 Whirlpool Refrigerator Door Handle
5WP3400203 Whirlpool Screw
6WPW10170540 Whirlpool Screw
