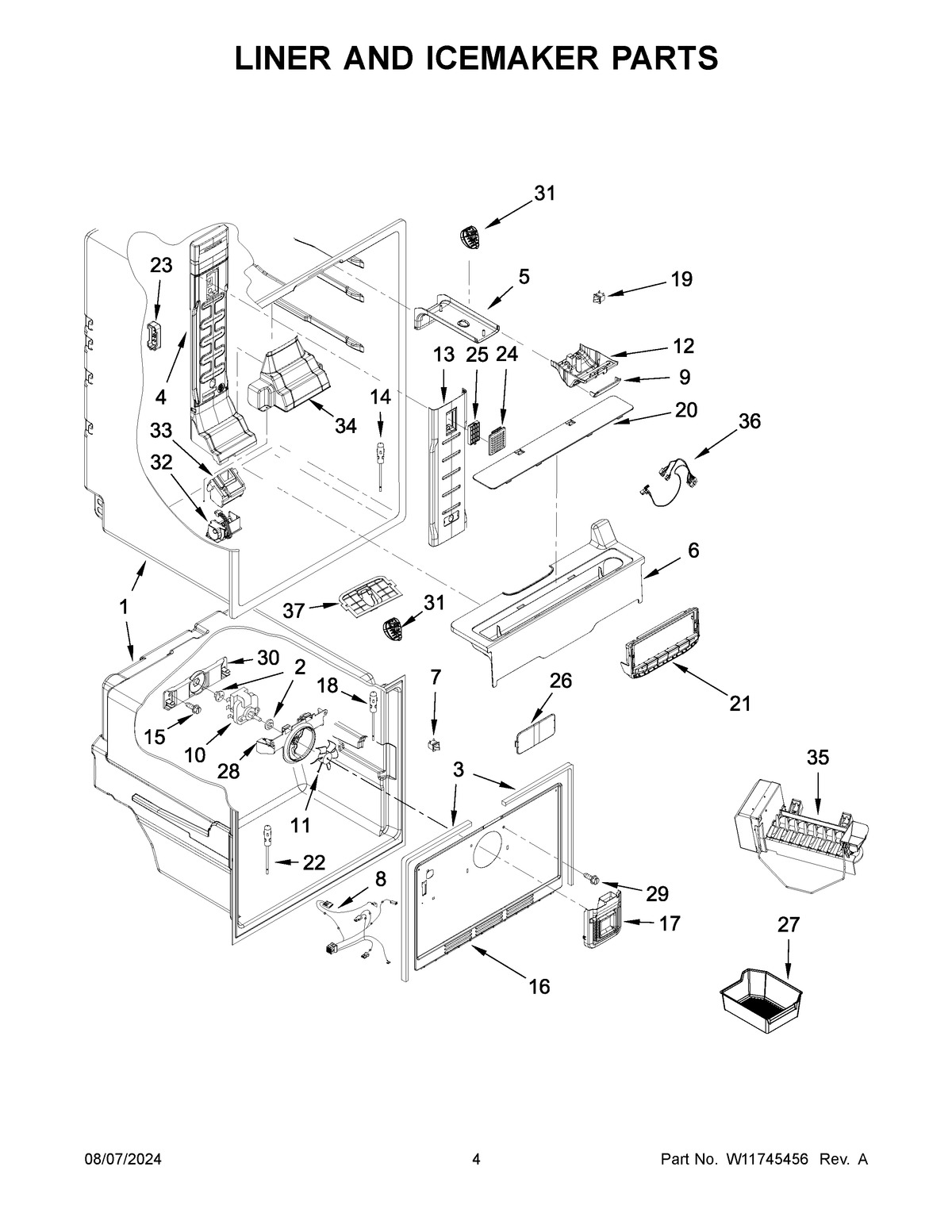

WRF560SMHB05 03 – LINER AND ICEMAKER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	W11508229 Whirlpool Refrigerator Air Tower
5	HOUSING, LIGHT
6	W10798439 Whirlpool Refrigerator Reservoir
7	W11123941 Whirlpool Refrigerator Switch
8	W11609466 Whirlpool Refrigerator Wire Harness
9	W10360550 Whirlpool Refrigerator Front Cover
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	WPW10435577 Whirlpool Refrigerator Housing
13	WPW10356895 Whirlpool Refrigerator Cover
14	THERMISTOR
15	WP488163 Whirlpool Refrigerator Screw
16	W10300900 Whirlpool Refrigerator Evaporator Cover
17	W11227949 Whirlpool Refrigerator Air Tower
18	WPW10384183 Whirlpool Thermistor
19	W11396033 Whirlpool Refrigerator Rocker Switch
20	W10413160 Whirlpool Refrigerator Cover
21	W11655737 Whirlpool Electronic Control Board + Core
23	WPW10425252 Whirlpool Refrigerator Cover
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	W10336009 Whirlpool Refrigerator Cover
27	WPW10378263 Whirlpool Refrigerator Ice Pan
28	W10850162 Whirlpool Refrigerator Orifice
29	WP489478 Whirlpool Refrigerator Screw
30	2254454 Whirlpool Refrigerator Bracket
31	MODULE
32	DAMPER
33	W11133099 Whirlpool Refrigerator Cover
34	WPW10314204 Whirlpool Refrigerator Housing
35	W11592795 Whirlpool Refrigerator Ice Maker
36	ASSEMBLY, REFRIGERATOR LIGHT WIRE
37	HOUSING, LIGHT
