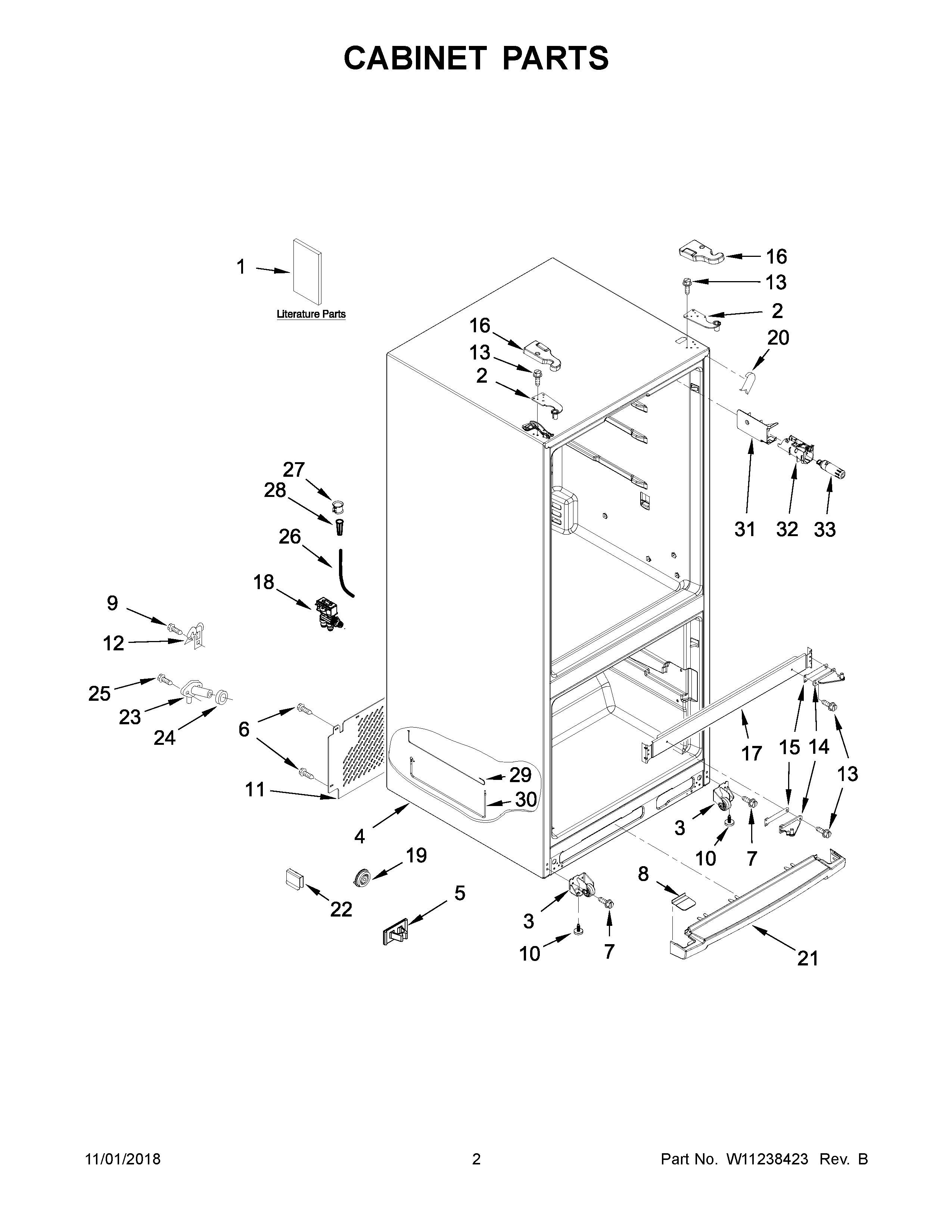

WRF560SMHM00 02 – CABINET PARTS

Products

Position	Product
1C	Modular Icemaker Service Sheet
1	TECH SHEET
1A	ENERGY GUIDE
1B	USE AND CARE GUIDE
2	W10546298 Whirlpool Refrigerator Door Hinge
2A	W11573371 Whirlpool Refrigerator Door Hinge
3	WPW10359256 Whirlpool Cabinet Roller
3A	WPW10359255 Whirlpool Cabinet Wheel
5	W11501419 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8B	WPW10353932 Whirlpool Refrigerator Grille Endcap
8A	W10353930 Whirlpool Refrigerator Grill End Cap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W10636716 Whirlpool Refrigerator Cover Unit
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14A	W11417064 Whirlpool Refrigerator Door Hinge
14	W10770878 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16E	W10465767 Whirlpool Refrigerator Cover
16D	W10465768 Whirlpool Hinge Cover
16B	W10465771 Whirlpool Refrigerator Cover
16A	W10465764 Whirlpool Refrigerator Cover
16	W10465765 Whirlpool Refrigerator Cover
16C	W10465770 Whirlpool Hinge Cover
17	CABINET (NOT A SERVICEABLE PART)
18	WPW10279909 Whirlpool Refrigerator Inlet Valve
19	W10331226 Whirlpool Refrigerator Clip
20B	W11219642 Whirlpool Refrigerator Filler
20A	W11219641 Whirlpool Refrigerator Filler
20	W11219639 Whirlpool Refrigerator Filler
21	WPW10300127 Whirlpool Refrigerator Grille
21A	WPW10353933 Whirlpool Refrigerator Grille
21B	WPW10353935 Whirlpool Refrigerator Grille
22	WP2174706 Whirlpool Refrigerator Pin Hitch
23	WPW10601149 Whirlpool Refrigerator Fitting
24	WP1106508 Whirlpool Refrigerator Gasket
25	WP489478 Whirlpool Refrigerator Screw
26	WPW10496649 Whirlpool Refrigerator Water Tube
27	W10861184 Whirlpool Refrigerator Clamp
28	4387491 Whirlpool Refrigerator Insert
29	W10449880 Whirlpool Microwave Water Tube
30	WPW10449611 Whirlpool Refrigerator Water Tube
31	WPW10306392 Whirlpool Refrigerator Filter Cover
32	W10844267 Whirlpool Refrigerator Housing
33	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
