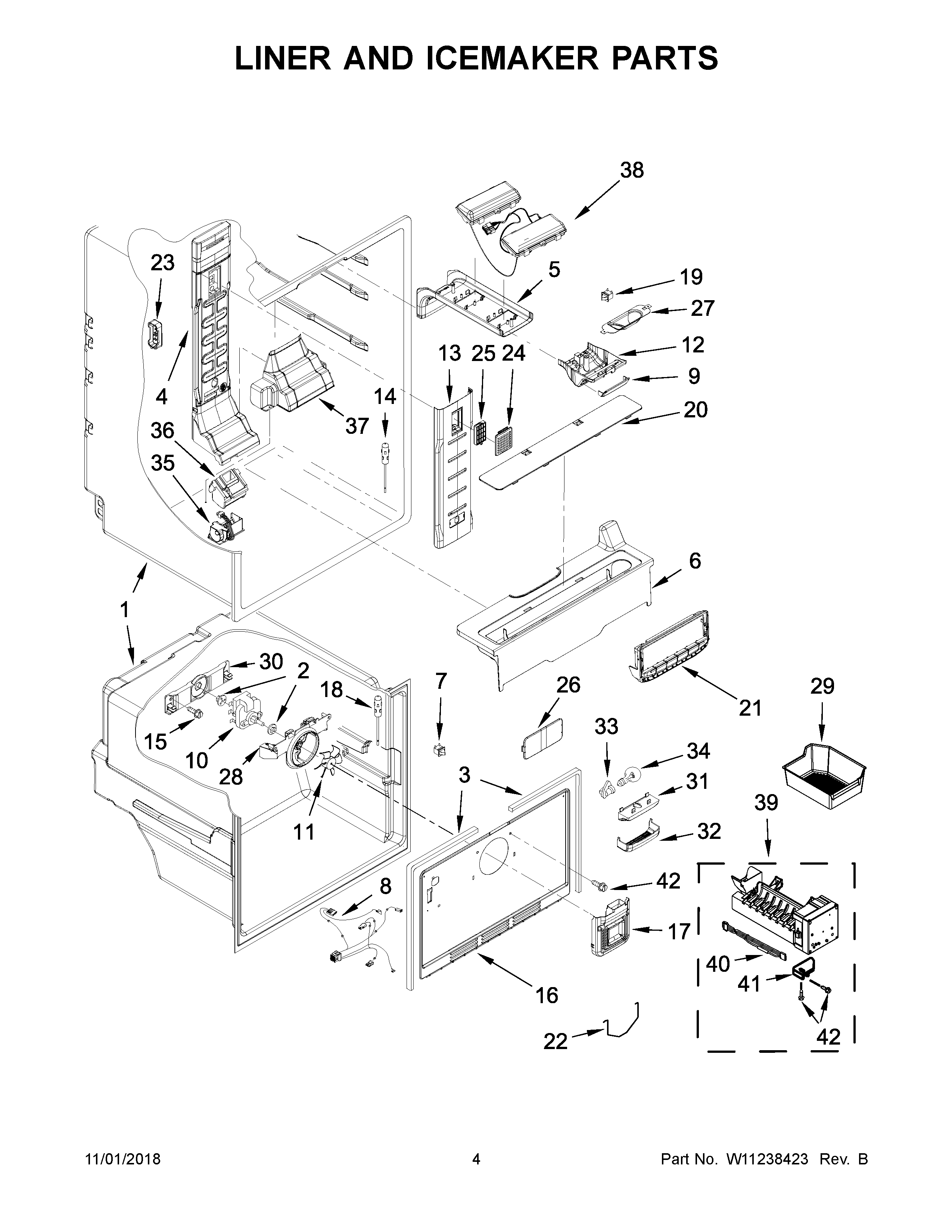

WRF560SMHV00 03 – LINER AND ICEMAKER PARTS

WRF560SMHV00 03 – LINER AND ICEMAKER PARTS

Written by

in

WRF560SMHV00 03 – LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3W10849448 Whirlpool Refrigerator Gasket
4W11508229 Whirlpool Refrigerator Air Tower
5W10469878 Whirlpool Refrigerator Housing
6W10798439 Whirlpool Refrigerator Reservoir
7W11396033 Whirlpool Refrigerator Rocker Switch
8WPW10487766 Whirlpool Refrigerator Wire Harness
9W10360550 Whirlpool Refrigerator Front Cover
10MOTOR-EVAP
11WP2163777 Whirlpool Refrigerator Fan Blade
12WPW10435577 Whirlpool Refrigerator Housing
13WPW10356895 Whirlpool Refrigerator Cover
14WPW10384183 Whirlpool Thermistor
15WP488163 Whirlpool Refrigerator Screw
16W10300900 Whirlpool Refrigerator Evaporator Cover
17W11227949 Whirlpool Refrigerator Air Tower
18THERMISTOR-REFRIGERATOR
19W11384469 Whirlpool Door Switch
20W10413160 Whirlpool Refrigerator Cover
21W11082837-includeCORE Whirlpool W11082837 Refrigerator Electronic Control Board + Core
22WPW10474785 Whirlpool Refrigerator Shut-Off Arm
23WPW10425252 Whirlpool Refrigerator Cover
24WPW10330850 Whirlpool Refrigerator Grille
25W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26W10336009 Whirlpool Refrigerator Cover
27WPW10314195 Whirlpool Refrigerator Shield
28W10850162 Whirlpool Refrigerator Orifice
29WPW10378263 Whirlpool Refrigerator Ice Pan
302254454 Whirlpool Refrigerator Bracket
31WPW10313917 Whirlpool Refrigerator Housing
32WPW10313918 Whirlpool Refrigerator Light Lens
33W11661565 Whirlpool Refrigerator Socket
34W10914194 Whirlpool Refrigerator Light Bulb
35DAMPER
36W11133099 Whirlpool Refrigerator Cover
37WPW10314204 Whirlpool Refrigerator Housing
38W10889448 Whirlpool Refrigerator Module
394317943 Whirlpool Refrigerator Ice Maker Assembly
40W11643622 Whirlpool Wire Harness
41W11500948 Whirlpool Refrigerator Bracket
42WP489478 Whirlpool Refrigerator Screw
