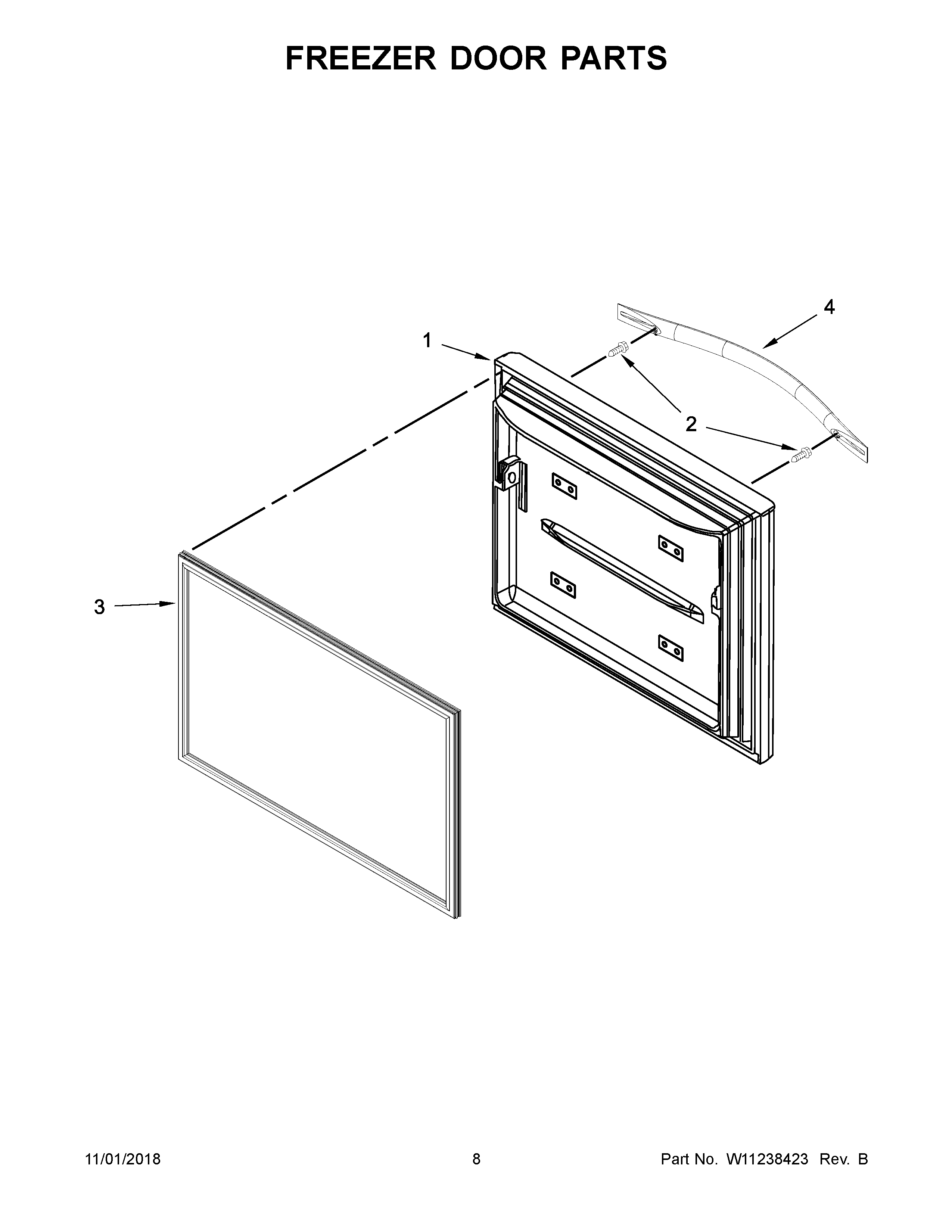

WRF560SMHV00 05 – FREEZER DOOR PARTS

WRF560SMHV00 05 – FREEZER DOOR PARTS

Written by

in

WRF560SMHV00 05 – FREEZER DOOR PARTS

Products

PositionProduct
1CFREEZER DOOR (INCLUDES ITEMS 2 & 3) (STAINLESS)
1LW10353182 Whirlpool Refrigerator Door FIP White
1ALW10413530 Whirlpool Refrigerator Black Foam In Place Doorack
1BLW10865766 Whirlpool Refrigerator Door FIP
2WPW10170540 Whirlpool Screw
3AW11625017 Whirlpool Refrigerator FIP Gasket
3W10460611 Whirlpool Door Gasket
3BW10836785 Whirlpool Door Gasket
4AW11125500 Whirlpool Refrigerator Handle
4BW11199708 Whirlpool Refrigerator Handle
4CW11199711 Whirlpool Refrigerator Door Handle
4W11125499 Whirlpool Refrigerator Handle
