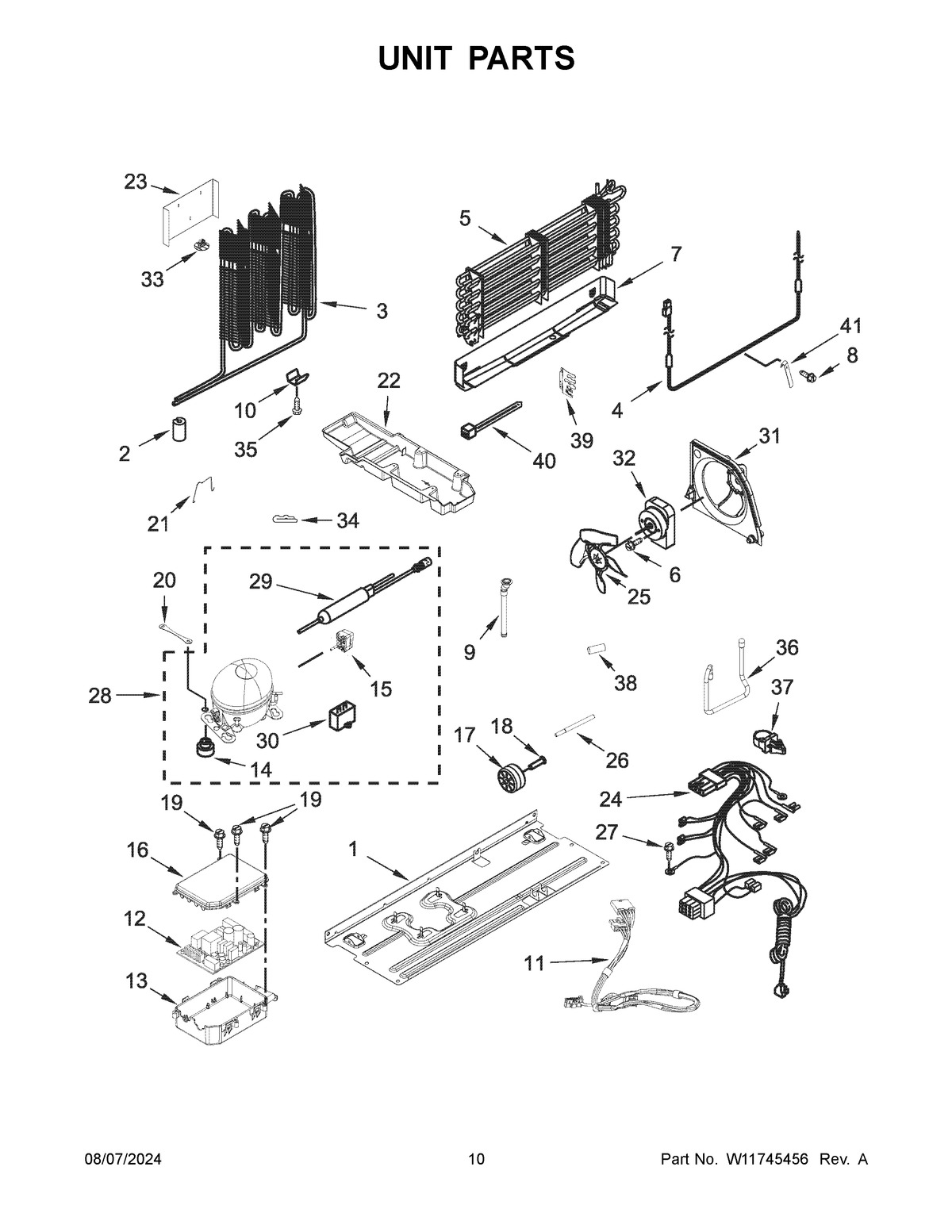

WRF560SMHV05 06 – UNIT PARTS

Products

PositionProduct
NIREFRIGERANT CHARGE 43 GRAMS (R
1W10300116 Whirlpool Refrigerator Base Plate
2W10852725 Whirlpool Refrigerator Grommet
3WPW10342567 Whirlpool Refrigerator Condenser
3BW11506624 Whirlpool Refrigerator Coupler
4W11562215 Whirlpool Refrigerator Heater
5W11611030 Whirlpool Evaporator Assembly
5AW11504450 Whirlpool Refrigerator Coupler
6W11501418 Whirlpool Refrigerator Screw
7W11562216 Whirlpool Shield
8WP489478 Whirlpool Refrigerator Screw
9W11284510 Whirlpool Refrigerator Drain Tube
10W10683556 Whirlpool Refrigerator Clip
11W11632351 Whirlpool Wire Harness
12W11035836-includeCORE Whirlpool W11035836 Refrigerator Electronic Control Board + Core
132323186 Whirlpool Refrigerator Housing
14W11678963 Whirlpool Grommet
15W11547180 Whirlpool Refrigerator Start Device
16W10313215 Whirlpool Refrigerator Box Cover
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19WPW10171469 Whirlpool Refrigerator Screw
20W10236396 Whirlpool Refrigerator Strap
21W11577799 Whirlpool Refrigerator Clip
22W10890667 Whirlpool Refrigerator Drip Pan
23W10349514 Whirlpool Refrigerator Air Baffle
24ASSEMBLY, UNIT WIRE HARNESS
25W11193484 Whirlpool Fan Blade
26W11661102 Whirlpool Tube
27WP489128 Whirlpool Refrigerator Screw
28BW11578570 Whirlpool Refrigerator Coupler
28COMPRESSOR
28CCOUPLER
29W11109499 Whirlpool Refrigerator Tube
29BW11504447 Whirlpool Refrigerator Coupler
29AW11504445 Whirlpool Refrigerator Coupler
30WPW10662129 Whirlpool Refrigerator Run Capacitor
31W11605794 Whirlpool Air Baffle
32W11563806 Whirlpool Refrigerator Condenser Motor
33W10815861 Whirlpool Refrigerator Clip
34W11501419 Whirlpool Refrigerator Clip
35W11544659 Whirlpool Refrigerator Screw
36W11741026 Whirlpool Tube Assembly
372219077 Whirlpool Refrigerator Clip
38W11553819 Whirlpool Refrigerator Insulation
39WPL W11466555
40WPW10339879 Whirlpool Wire Tie
41W11611126 Whirlpool Heat Probe
