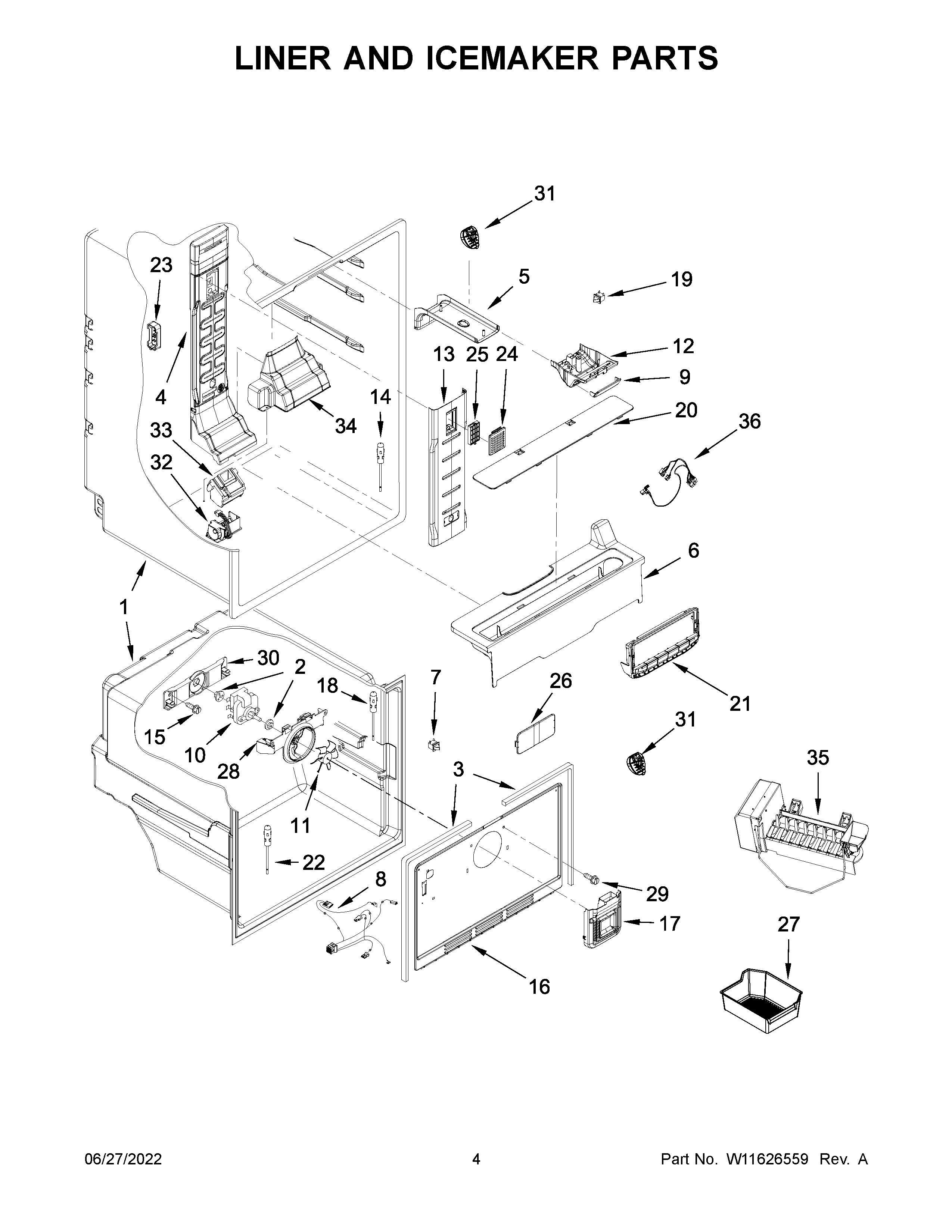

WRF560SMHW02 03 – LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2264462 Whirlpool Refrigerator Grommet
3W10849448 Whirlpool Refrigerator Gasket
4W11508229 Whirlpool Refrigerator Air Tower
5HOUSING, LIGHT
6W10798439 Whirlpool Refrigerator Reservoir
7W11123941 Whirlpool Refrigerator Switch
8W11609466 Whirlpool Refrigerator Wire Harness
9W10360550 Whirlpool Refrigerator Front Cover
10MOTOR-EVAP
11WP2163777 Whirlpool Refrigerator Fan Blade
12WPW10435577 Whirlpool Refrigerator Housing
13WPW10356895 Whirlpool Refrigerator Cover
14THERMISTOR
15WP488163 Whirlpool Refrigerator Screw
16W10300900 Whirlpool Refrigerator Evaporator Cover
17W11227949 Whirlpool Refrigerator Air Tower
18WPW10384183 Whirlpool Thermistor
19W11396033 Whirlpool Refrigerator Rocker Switch
20W10413160 Whirlpool Refrigerator Cover
21W11655737 Whirlpool Electronic Control Board + Core
23WPW10425252 Whirlpool Refrigerator Cover
24WPW10330850 Whirlpool Refrigerator Grille
25W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26W10336009 Whirlpool Refrigerator Cover
27WPW10378263 Whirlpool Refrigerator Ice Pan
28W10850162 Whirlpool Refrigerator Orifice
29WP489478 Whirlpool Refrigerator Screw
302254454 Whirlpool Refrigerator Bracket
31MODULE
32DAMPER
33W11133099 Whirlpool Refrigerator Cover
34WPW10314204 Whirlpool Refrigerator Housing
35W11592795 Whirlpool Refrigerator Ice Maker
36ASSEMBLY, REFRIGERATOR LIGHT WIRE
