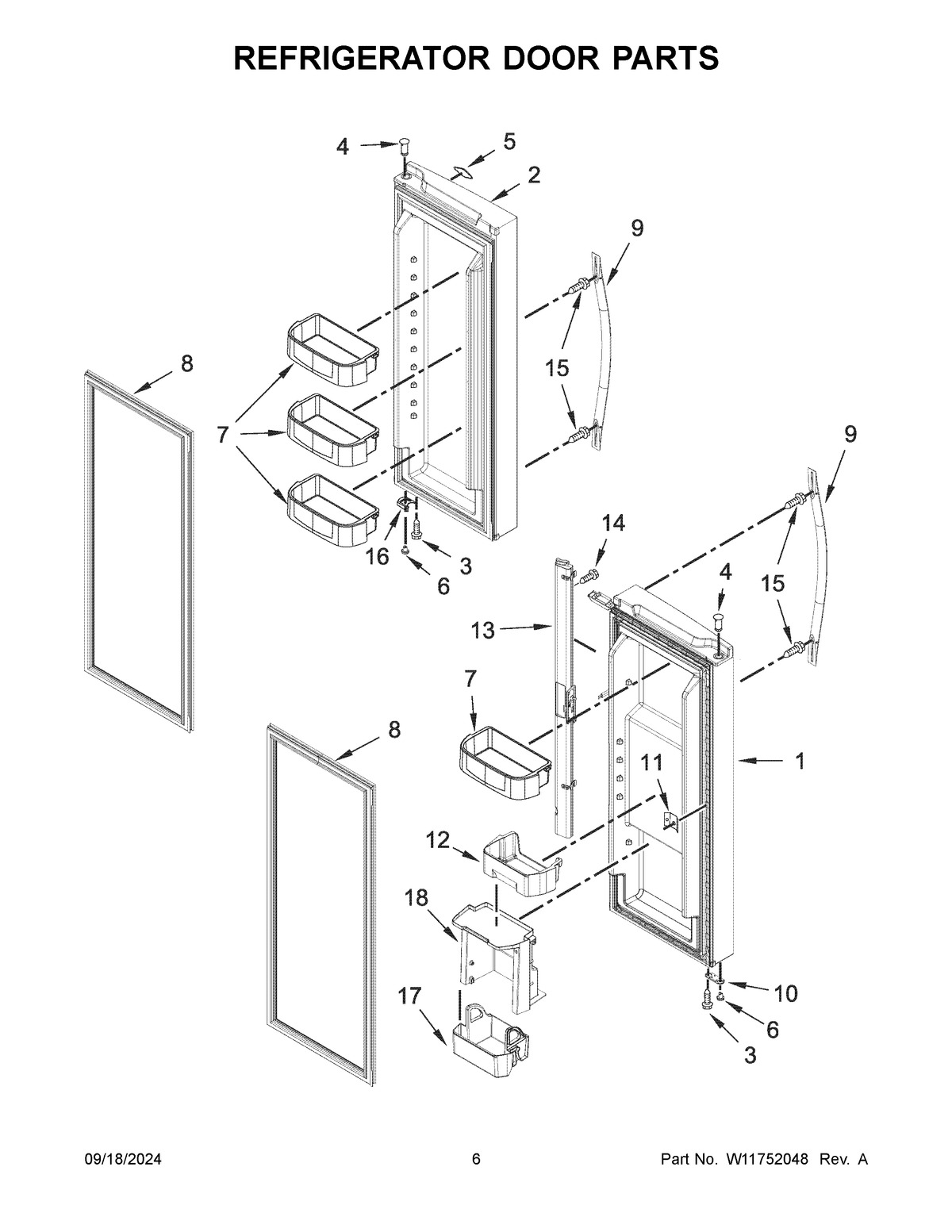

WRF560SMHZ05 04 – REFRIGERATOR DOOR PARTS

WRF560SMHZ05 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SMHZ05 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10858415 Whirlpool Refrigerator FIP Door
2LW10858417 Whirlpool Refrigerator Door FIP
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8GASKET-FIP
9W11123099 Whirlpool Refrigerator Exterior Door Handle
10W11745278 Whirlpool Bracket
11WP939101 Whirlpool Refrigerator Plate
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13WPW10624450 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10661886 Whirlpool Refrigerator Door Handle Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17W11106787 Whirlpool Refrigerator Cantilever Bin
18WPW10317224 Whirlpool Refrigerator Container
