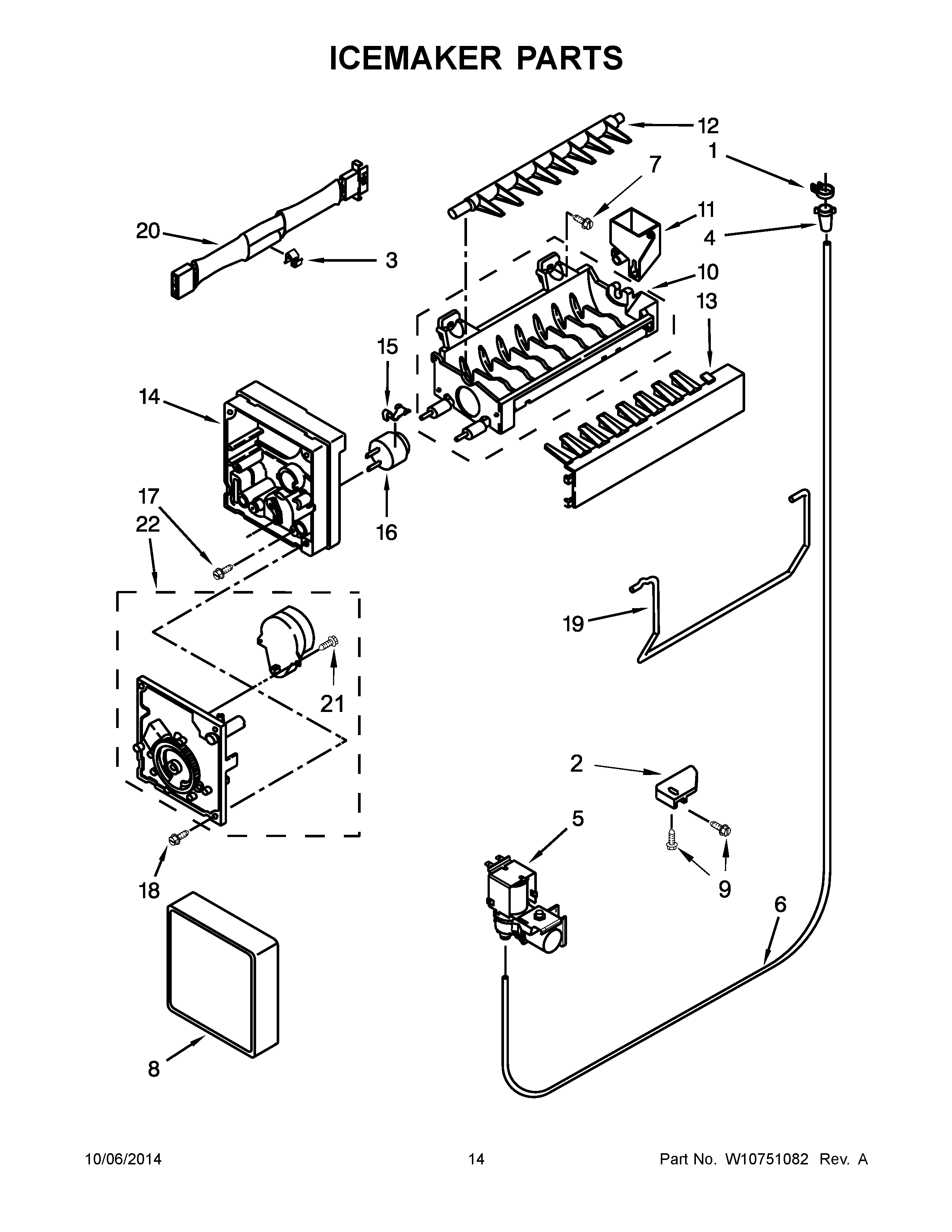

WRF560SMYB04 08 – ICEMAKER PARTSadmin2025-04-26T11:23:40+00:00WRF560SMYB04 08 – ICEMAKER PARTS ProductsPositionProduct1W10861184 Whirlpool Refrigerator Clamp2W11500948 Whirlpool Refrigerator Bracket3WP628379 Whirlpool Refrigerator Clip44387491 Whirlpool Refrigerator Insert5WPW10279909 Whirlpool Refrigerator Inlet Valve6WPW10496649 Whirlpool Refrigerator Water Tube7WP488163 Whirlpool Refrigerator Screw8WPW10289690 Whirlpool Ice Maker Cover9WP489478 Whirlpool Refrigerator Screw10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11W11676540 Whirlpool Refrigerator Cup Fill12WP627843 Whirlpool Refrigerator Ejector Arm13WPW10122563 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP627985 Whirlpool Icemaker Cycling Thermostat17W10001280 Whirlpool Refrigerator Screw18WP681249 Whirlpool Screw Assembly19WPW10474785 Whirlpool Refrigerator Shut-Off Arm20W11643622 Whirlpool Wire Harness21489136 Whirlpool Refrigerator Screw228201515 Whirlpool Refrigerator Motor and Gear Module Kit1004317943 Whirlpool Refrigerator Ice Maker Assembly
