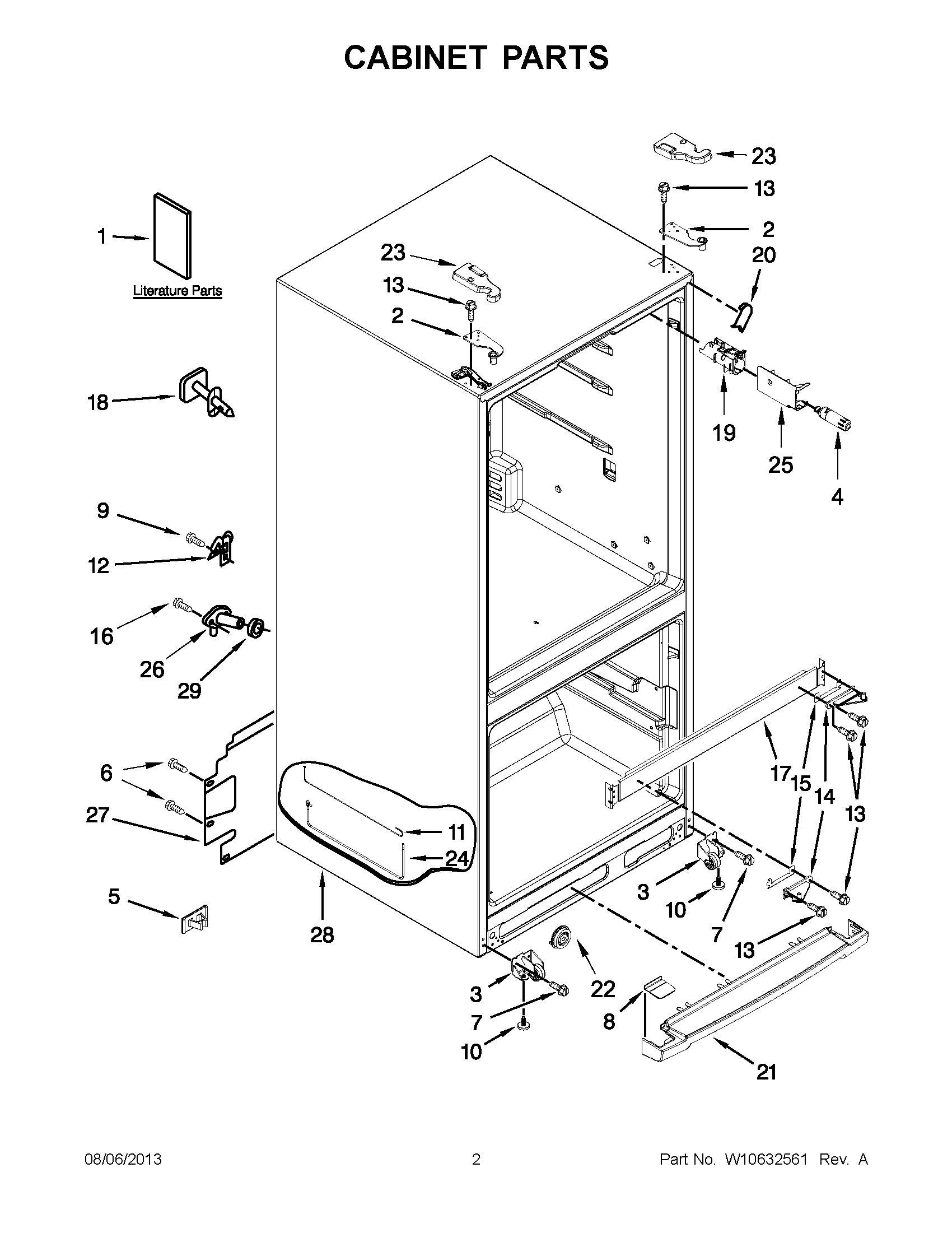

WRF560SMYE00 01 – CABINET PARTS

WRF560SMYE00 01 – CABINET PARTS

Written by

in

WRF560SMYE00 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	SERVICE AND WIRING SHEET
1	ENERGY GUIDE
1	USE AND CARE GUIDE
2	W11573371 Whirlpool Refrigerator Door Hinge
2	W10546298 Whirlpool Refrigerator Door Hinge
3	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W11501419 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
8	W10353930 Whirlpool Refrigerator Grill End Cap
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W10449880 Whirlpool Microwave Water Tube
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WPW10521409 Whirlpool Door Hinge Assembly
14	WPW10521411 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WP489478 Whirlpool Refrigerator Screw
19	W10844267 Whirlpool Refrigerator Housing
20	WPW10283959 Whirlpool Refrigerator Filler
20	W11252732 Whirlpool Refrigerator Filler
21	WPW10300127 Whirlpool Refrigerator Grille
21	WPW10353933 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	W10465765 Whirlpool Refrigerator Cover
23	W10465770 Whirlpool Hinge Cover
23	W10465771 Whirlpool Refrigerator Cover
23	W10465764 Whirlpool Refrigerator Cover
24	WPW10449611 Whirlpool Refrigerator Water Tube
25	WPW10306392 Whirlpool Refrigerator Filter Cover
26	WPW10601149 Whirlpool Refrigerator Fitting
27	W10636716 Whirlpool Refrigerator Cover Unit
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
