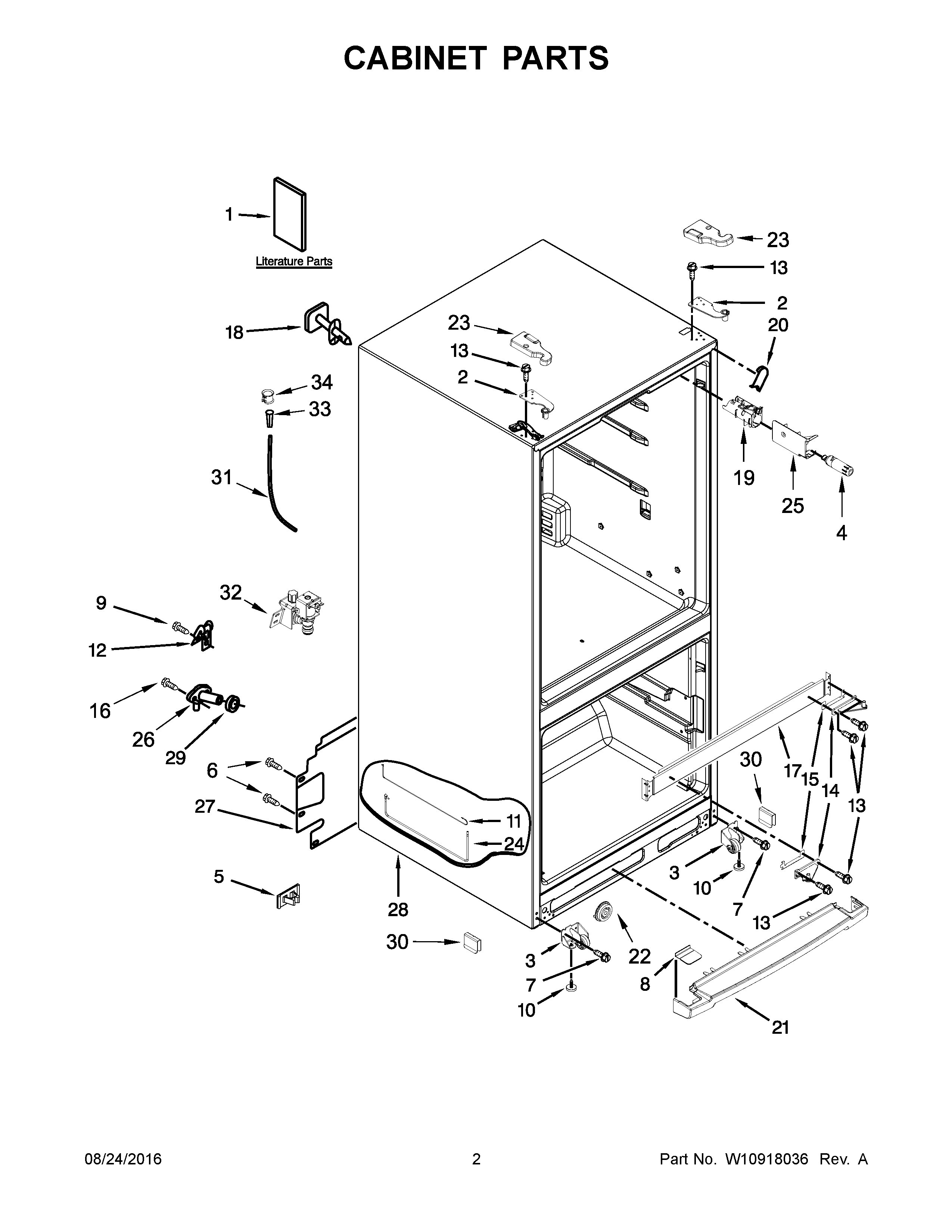

WRF560SMYE04 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1B	USE AND CARE GUIDE
1	TECH SHEET
1C	Modular Icemaker Service Sheet
2	W10546298 Whirlpool Refrigerator Door Hinge
2A	W11573371 Whirlpool Refrigerator Door Hinge
3	WPW10359256 Whirlpool Cabinet Roller
3A	WPW10359255 Whirlpool Cabinet Wheel
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W11501419 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
8	W10353930 Whirlpool Refrigerator Grill End Cap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W10449880 Whirlpool Microwave Water Tube
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	W10770878 Whirlpool Refrigerator Door Hinge
14A	W11417064 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WP489478 Whirlpool Refrigerator Screw
19	W10844267 Whirlpool Refrigerator Housing
20	W11252732 Whirlpool Refrigerator Filler
21	WPW10353933 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	W10465771 Whirlpool Refrigerator Cover
23A	W10465770 Whirlpool Hinge Cover
24	WPW10449611 Whirlpool Refrigerator Water Tube
25	WPW10306392 Whirlpool Refrigerator Filter Cover
26	WPW10601149 Whirlpool Refrigerator Fitting
27	W10636716 Whirlpool Refrigerator Cover Unit
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	WP2174706 Whirlpool Refrigerator Pin Hitch
31	WPW10496649 Whirlpool Refrigerator Water Tube
32	WPW10279909 Whirlpool Refrigerator Inlet Valve
33	4387491 Whirlpool Refrigerator Insert
34	W10861184 Whirlpool Refrigerator Clamp
