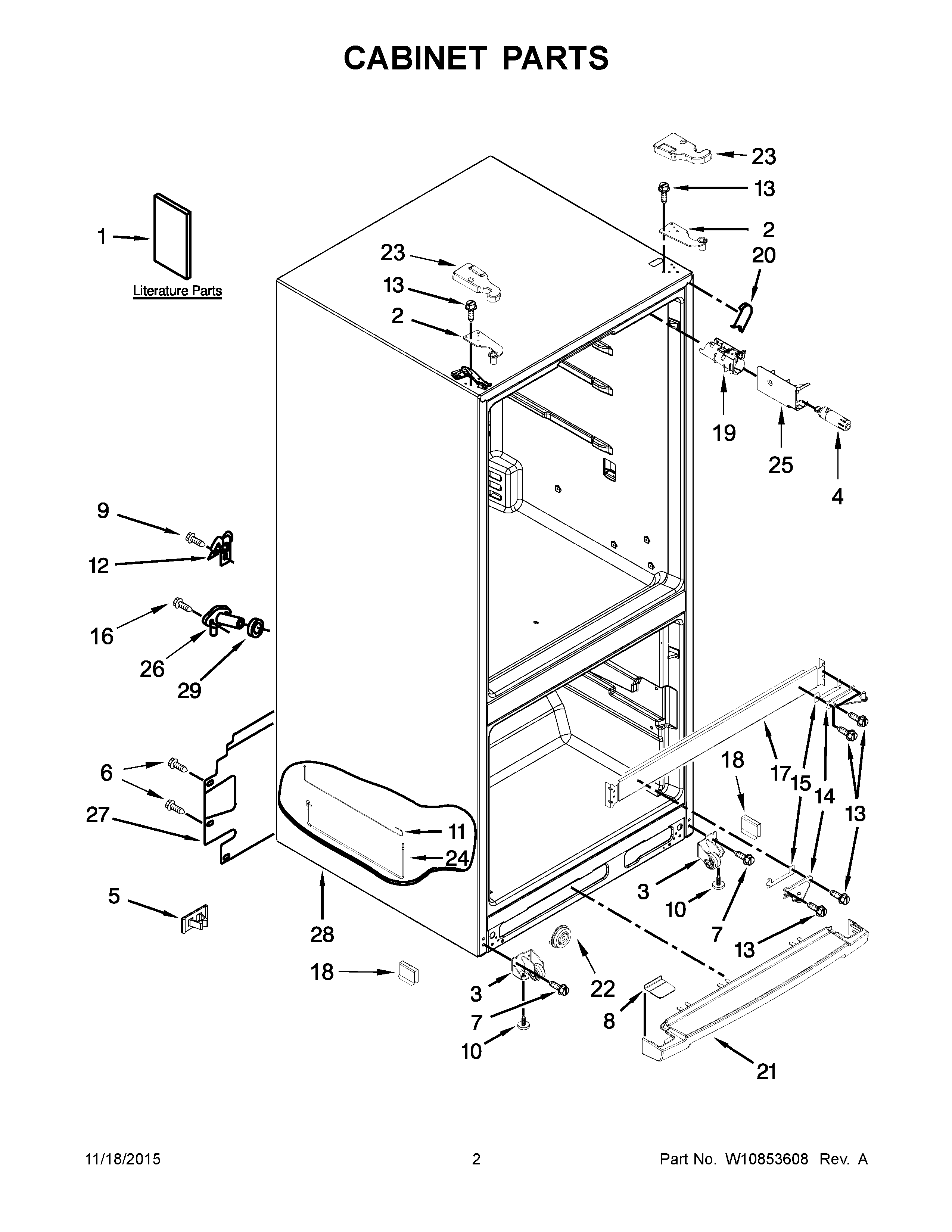

WRF560SMYH04 02 – CABINET PARTS

WRF560SMYH04 02 – CABINET PARTS

Written by

in

WRF560SMYH04 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1BUSE AND CARE GUIDE
1CModular Icemaker Service Sheet
1TECH SHEET
2AW11573371 Whirlpool Refrigerator Door Hinge
2W10546298 Whirlpool Refrigerator Door Hinge
3WPW10359256 Whirlpool Cabinet Roller
3AWPW10359255 Whirlpool Cabinet Wheel
4EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5W11501419 Whirlpool Refrigerator Clip
6WP488729 Whirlpool Refrigerator Door Screw
8WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11W10449880 Whirlpool Microwave Water Tube
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14AW11417064 Whirlpool Refrigerator Door Hinge
14W10770878 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16WP489478 Whirlpool Refrigerator Screw
18WP2174706 Whirlpool Refrigerator Pin Hitch
19W10844267 Whirlpool Refrigerator Housing
20WPW10283959 Whirlpool Refrigerator Filler
21WPW10300127 Whirlpool Refrigerator Grille
22W10331226 Whirlpool Refrigerator Clip
23AW10465764 Whirlpool Refrigerator Cover
23W10465765 Whirlpool Refrigerator Cover
24WPW10449611 Whirlpool Refrigerator Water Tube
25WPW10306392 Whirlpool Refrigerator Filter Cover
26WPW10601149 Whirlpool Refrigerator Fitting
27W10636716 Whirlpool Refrigerator Cover Unit
28CABINET (NOT A SERVICEABLE PART)
29WP1106508 Whirlpool Refrigerator Gasket
