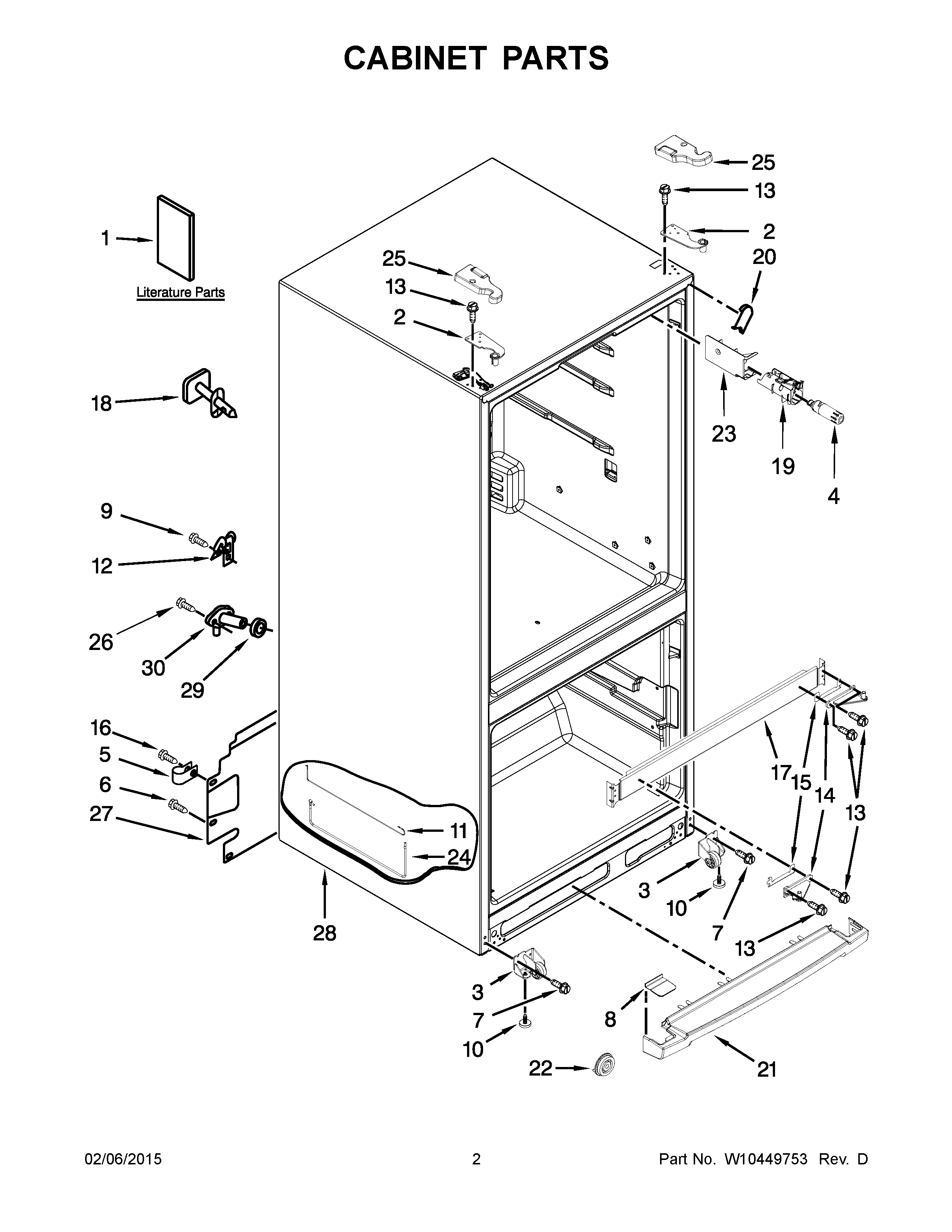

WRF560SMYM00 02 – CABINET PARTS

WRF560SMYM00 02 – CABINET PARTS

Written by

in

WRF560SMYM00 02 – CABINET PARTS

Products

Position	Product
1C	Modular Icemaker Service Sheet
1	SERVICE AND WIRING SHEET
1A	ENERGY GUIDE
1B	USE AND CARE GUIDE
2	W10546298 Whirlpool Refrigerator Door Hinge
2A	W11573371 Whirlpool Refrigerator Door Hinge
3A	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W11456069 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
8A	W10353930 Whirlpool Refrigerator Grill End Cap
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8B	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W10449880 Whirlpool Microwave Water Tube
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14A	WPW10521409 Whirlpool Door Hinge Assembly
14	WPW10521411 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WP489464 Whirlpool Refrigerator Screw
19	W10844267 Whirlpool Refrigerator Housing
20B	W10851579 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
20A	W11252732 Whirlpool Refrigerator Filler
21B	WPW10353935 Whirlpool Refrigerator Grille
21A	WPW10353933 Whirlpool Refrigerator Grille
21	WPW10300127 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	WPW10306392 Whirlpool Refrigerator Filter Cover
24	WPW10449611 Whirlpool Refrigerator Water Tube
25	W10465765 Whirlpool Refrigerator Cover
25A	W10465764 Whirlpool Refrigerator Cover
25C	W10465770 Whirlpool Hinge Cover
25D	W10465768 Whirlpool Hinge Cover
25E	W10465767 Whirlpool Refrigerator Cover
25B	W10465771 Whirlpool Refrigerator Cover
26	WP488729 Whirlpool Refrigerator Door Screw
27	W10636716 Whirlpool Refrigerator Cover Unit
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	WPW10601149 Whirlpool Refrigerator Fitting
