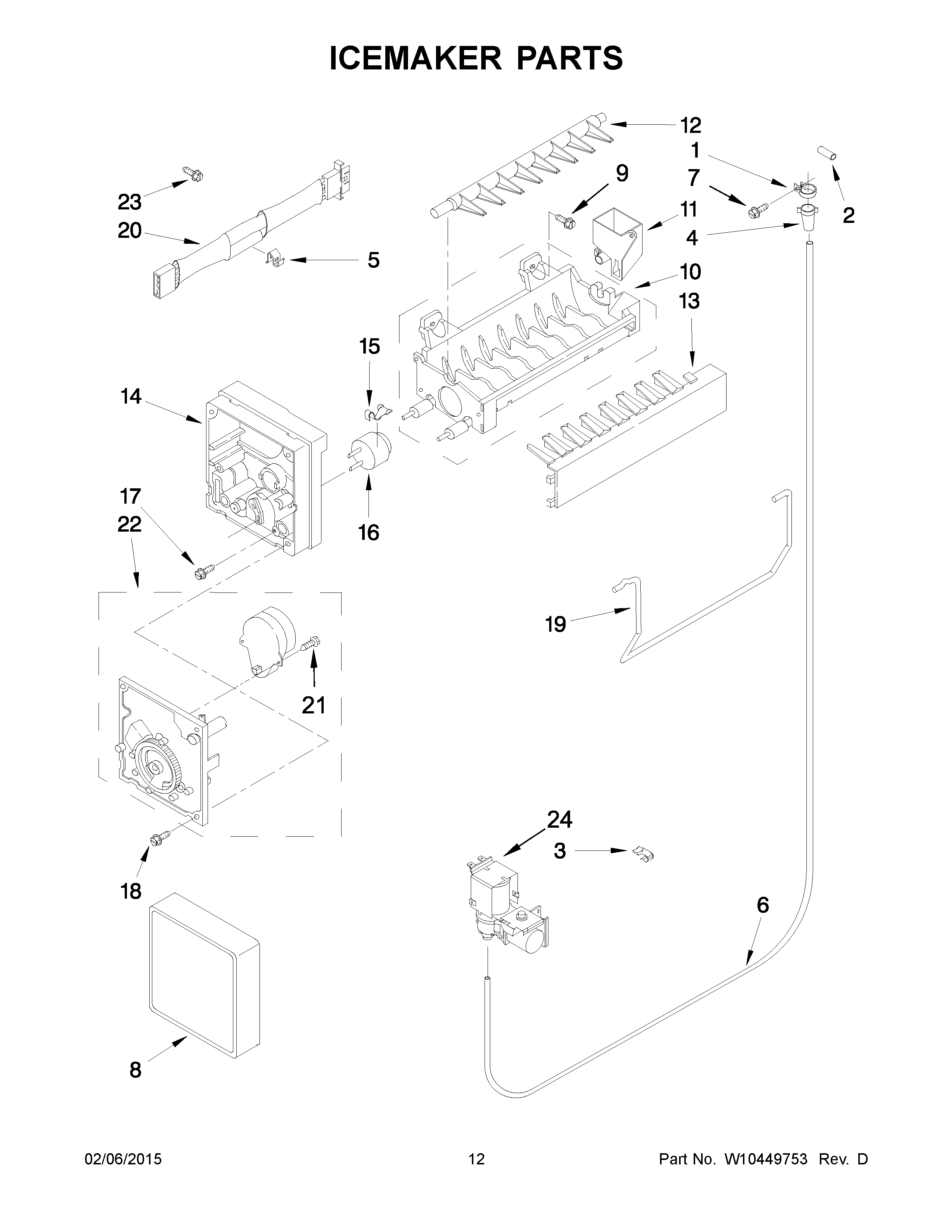

WRF560SMYM00 07 – ICEMAKER PARTS

Products

Position	Product
1	WP488878 Whirlpool Refrigerator Tube Clamp
2	Tube, Water Inlet
3	2210495 Whirlpool Refrigerator Clip
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WPW10426709 Whirlpool Refrigerator Water Tube
7	WP488787 Whirlpool Refrigerator Screw
8	WPW10289690 Whirlpool Ice Maker Cover
9	WP488163 Whirlpool Refrigerator Screw
10	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11	W11676540 Whirlpool Refrigerator Cup Fill
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WPW10122563 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP627985 Whirlpool Icemaker Cycling Thermostat
17	8533917 Whirlpool Refrigerator Screw
18	WP681249 Whirlpool Screw Assembly
19	WPW10474785 Whirlpool Refrigerator Shut-Off Arm
20	W11643622 Whirlpool Wire Harness
21	489136 Whirlpool Refrigerator Screw
22	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
23	WP489478 Whirlpool Refrigerator Screw
24	WPW10279909 Whirlpool Refrigerator Inlet Valve
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
