WRF736SDAB10 08 – FREEZER DOOR PARTS
Written by
in

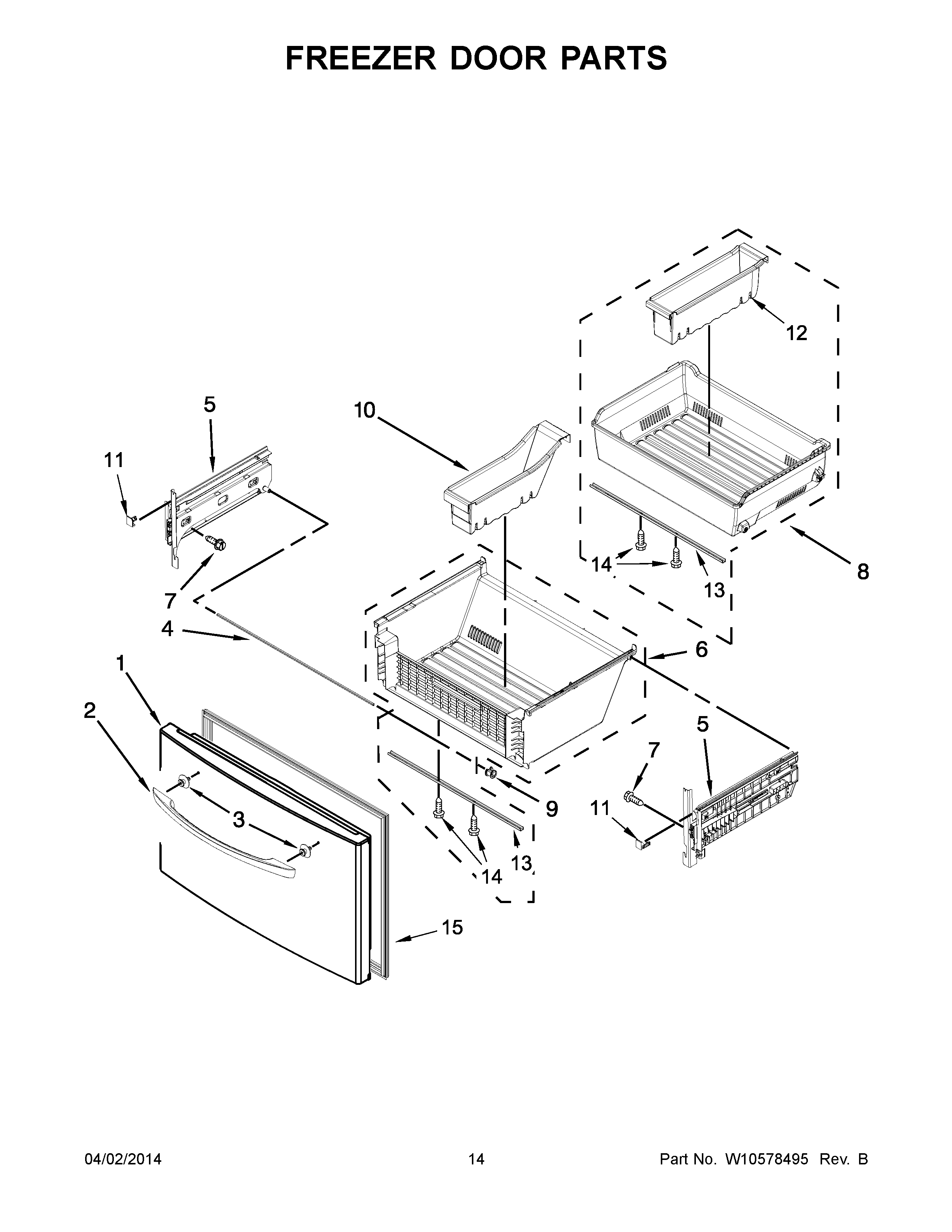

WRF736SDAB10 08 – FREEZER DOOR PARTS
Products
Position
Product
1
DOOR, FREEZER (SPARKLE STEEL)
1
DOOR, FREEZER (WHITE)
1
FREEZER DOOR (STAINLESS)
1
DOOR, FREEZER (INCLUDES ITEM 15) (BLACK)
2
W10719668 Whirlpool Refrigerator Handle
2
W10548944 Whirlpool Refrigerator Handle
2
W10827046 Whirlpool Door Handle
3
WPW10661886 Whirlpool Refrigerator Door Handle Screw
4
W10503521 Whirlpool Refrigerator Shaft Assembly
5
W11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6
ASSEMBLY, LOWER PAN
7
WP67006908 Whirlpool Refrigerator Screw
8
PAN ASSEMBLY, UPPER
9
W10852685 Whirlpool Clip Assembly
10
W10507444 Whirlpool Refrigerator Divider
11
WPW10485096 Whirlpool Refrigerator Pan Stop
11
WPW10485089 Whirlpool Refrigerator Pan Stop
12
WPW10485654 Whirlpool Refrigerator Divider
13
W11677723 Whirlpool Support
14
WP489443 Whirlpool Refrigerator Screw
15
W10407215 Whirlpool Door Gasket
15
GASKET-FIP GRAY
15
W10638486 Whirlpool Refrigerator Door Gasket
←
