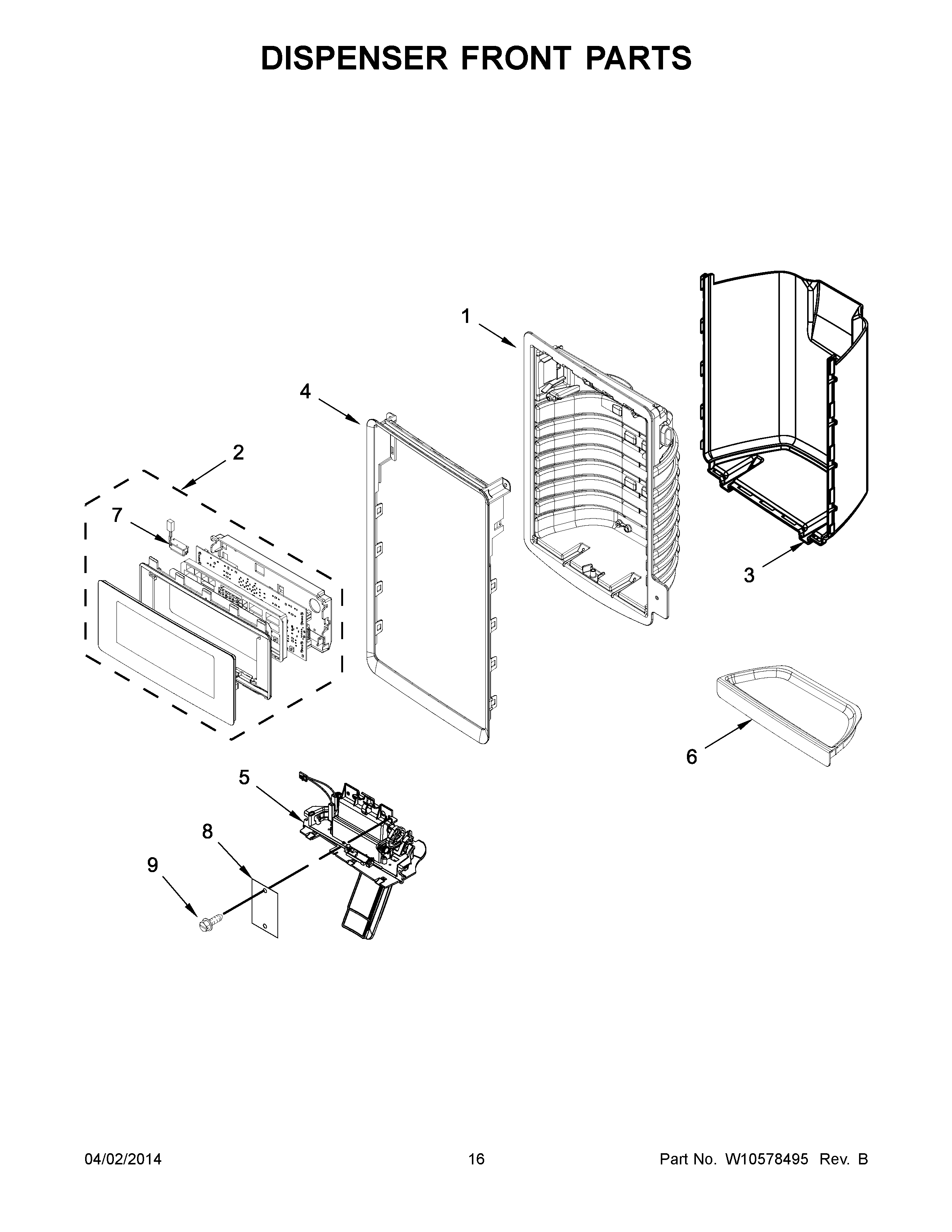

WRF736SDAB10 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10865870 Whirlpool Refrigerator Electronic Control Board + Core
2W10864261-includeCORE Whirlpool W10864261 Refrigerator Electronic Control Board + Core
3FALSE WALL, DISPENSER (GREY)
3W10488322 Whirlpool Refrigerator Separator
3WALL, DISPENSER FALSE (WHITE)
4W10462438 Whirlpool Refrigerator Ring Connector
4W10462439 Whirlpool Refrigerator Trim
4W10424567 Whirlpool Refrigerator Display Trim
5W11175839 Whirlpool Refrigerator Ice Door
5WPW10616133 Whirlpool Refrigerator Separator
5WPW10616134 Whirlpool Refrigerator Ice Door
6W10606644 Whirlpool Refrigerator Drip Tray
6TRAY, DRIP (BLACK)
6WPW10606639 Whirlpool Refrigerator Drip Tray
7W11290115 Whirlpool Refrigerator Light
8SHIELD, SEPARATOR
9WPW10272364 Whirlpool Refrigerator Screw
