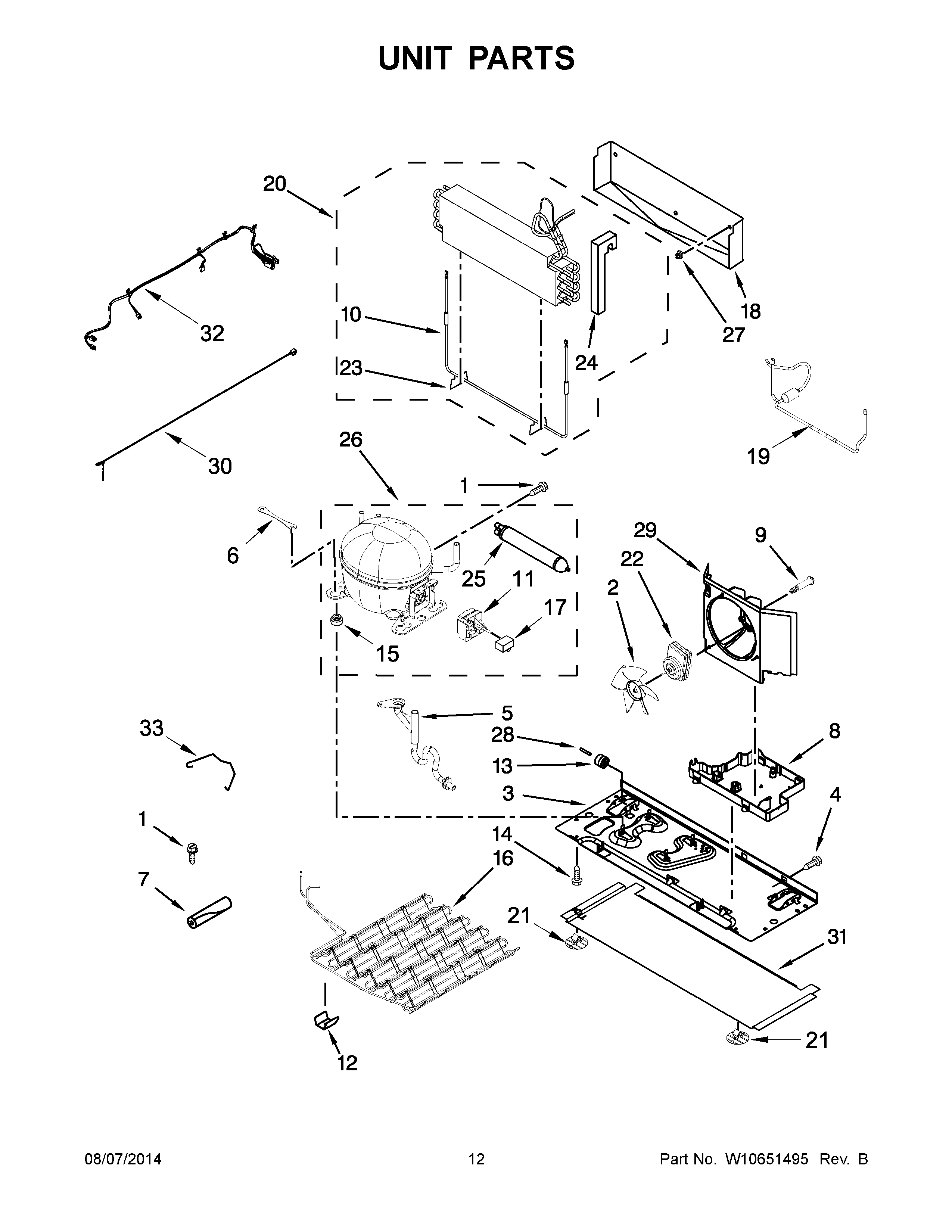

WRF736SDAB12 07 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
2	WP2188935 Whirlpool Refrigerator Fan Blade
3	W10570074 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W11712703 Whirlpool Extension Assembly
6	W10236396 Whirlpool Refrigerator Strap
7	SLEEVE
8	W11225840 Whirlpool Refrigerator Evaporator Tray
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	WPW10197428 Whirlpool Start Device
12	W10683556 Whirlpool Refrigerator Clip
13	WP67005149 Whirlpool Roller
14	Screw
15	WPW10169124 Whirlpool Refrigerator Grommet
16	W11673437 Whirlpool Condenser Assembly
17	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
18	WPW10512220 Whirlpool Refrigerator Drip Tray
19	WPW10463542 Whirlpool Refrigerator Tube
20	WPW10608485 Whirlpool Refrigerator Evaporator
21	W10296661 Whirlpool Refrigerator Clip
22	W11578915 Whirlpool Condenser Motor
23	W11673433 Whirlpool Clip
24	W10491355 Whirlpool Refrigerator Air Gasket
25	WPW10143759 Whirlpool Dryer Filter
26	WPW10466675 Whirlpool Refrigerator Compressor
27	W11544659 Whirlpool Refrigerator Screw
28	67006434 Whirlpool Axle Pin
29	WPW10406719 Whirlpool Refrigerator Shroud
30	CORD-POWER
31	W10278140 Whirlpool Refrigerator Unit Cover
32	W10528619 Whirlpool Refrigerator Wire Harness
33	W10204187 Whirlpool Refrigerator Retainer
