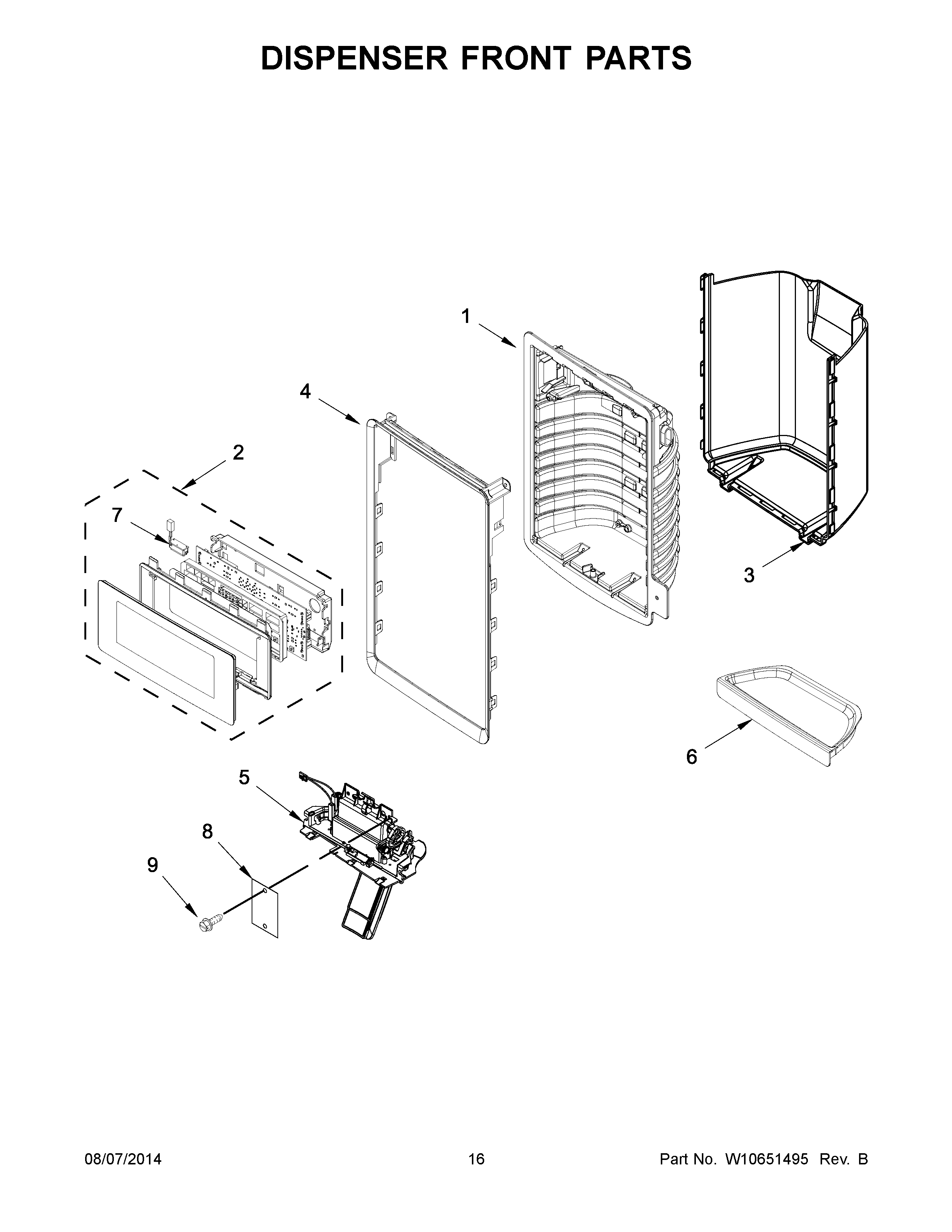

WRF736SDAB12 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW10865870 Whirlpool Refrigerator Electronic Control Board + Core
2W10864261-includeCORE Whirlpool W10864261 Refrigerator Electronic Control Board + Core
3BFALSE WALL, DISPENSER (GREY)
3AW10488322 Whirlpool Refrigerator Separator
3WALL, DISPENSER FALSE (WHITE)
4W10462438 Whirlpool Refrigerator Ring Connector
4AW10462439 Whirlpool Refrigerator Trim
4BWPW10402180 Whirlpool Refrigerator Trim
5AWPW10616133 Whirlpool Refrigerator Separator
5BWPW10616134 Whirlpool Refrigerator Ice Door
5W11175839 Whirlpool Refrigerator Ice Door
6ADRIP TRAY (BLACK)
6BWPW10606639 Whirlpool Refrigerator Drip Tray
6W10606644 Whirlpool Refrigerator Drip Tray
7W11290115 Whirlpool Refrigerator Light
8SHIELD, SEPARATOR
9WPW10272364 Whirlpool Refrigerator Screw
