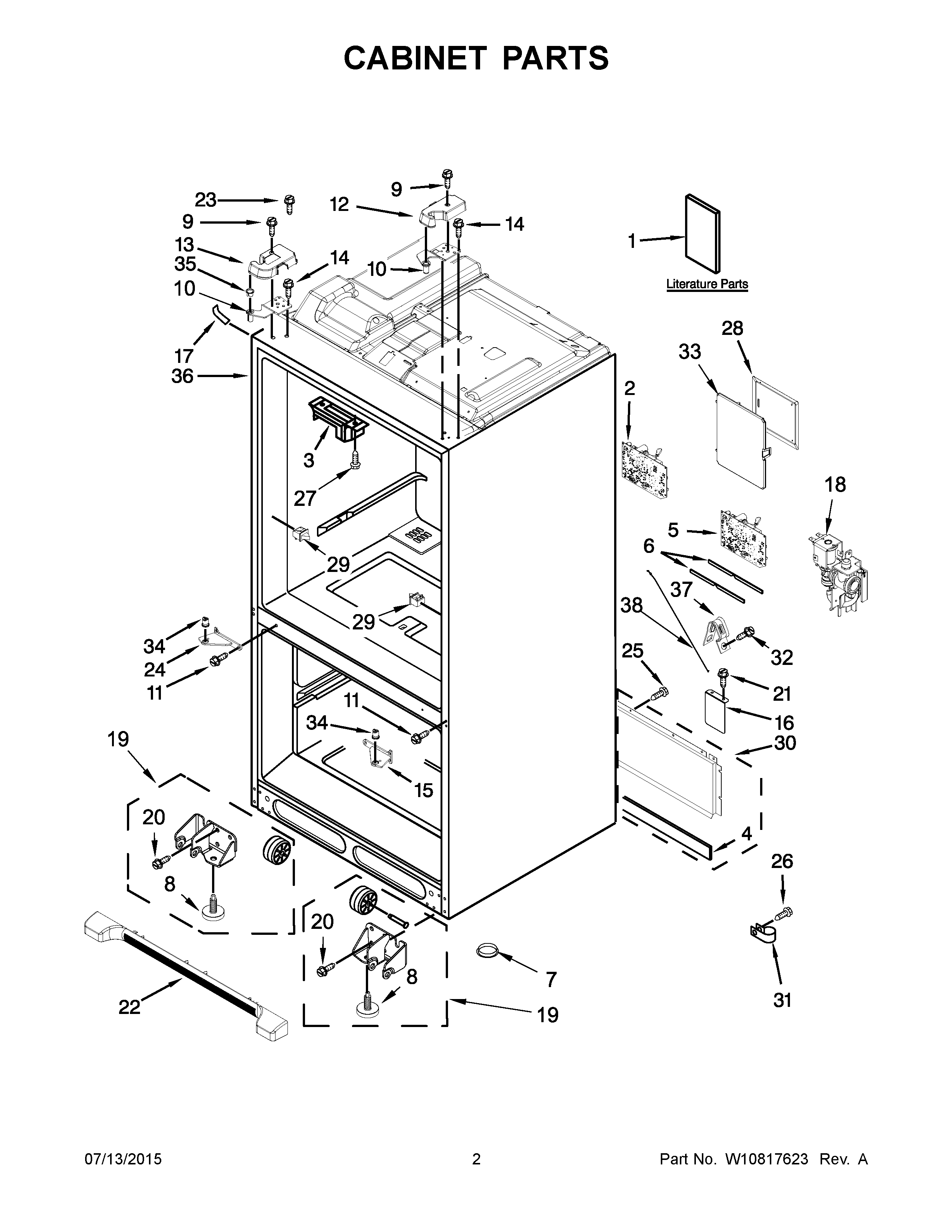

WRF736SDAB13 02 – CABINET PARTS

WRF736SDAB13 02 – CABINET PARTS

Written by

in

WRF736SDAB13 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2WPW10453401 Whirlpool Refrigerator Electronic Control Board
3WPW10344432 Whirlpool Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5WPW10589838-includeCORE Whirlpool WPW10589838 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10AW11592404 Whirlpool Refrigerator Door Hinge
10W11592405 Whirlpool Door Hinge
11W10403211 Whirlpool Refrigerator Screw
12COVER, TOP HINGE RIGHT HAND (BLACK)
13W10471617 Whirlpool Refrigerator Cover
14WPW10308751 Whirlpool Screw
15W10407275 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WP33001882 Whirlpool Screw
22WPW10637669 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10407279 Whirlpool Refrigerator Door Hinge
2667006425 Whirlpool Refrigerator Screw
27W10854958 Whirlpool Refrigerator Screw
28WPW10485658 Whirlpool Cover Assembly
29W11396033 Whirlpool Refrigerator Rocker Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32SCREW
33W10277839 Whirlpool Refrigerator Cover
34COUPLER, DOOR
35W10212137 Whirlpool Refrigerator Grommet
36CABINET (NOT A SERVICEABLE PART)
37549193 Whirlpool Refrigerator Power Clamp
38W11308813 Whirlpool Refrigerator Water Tube
