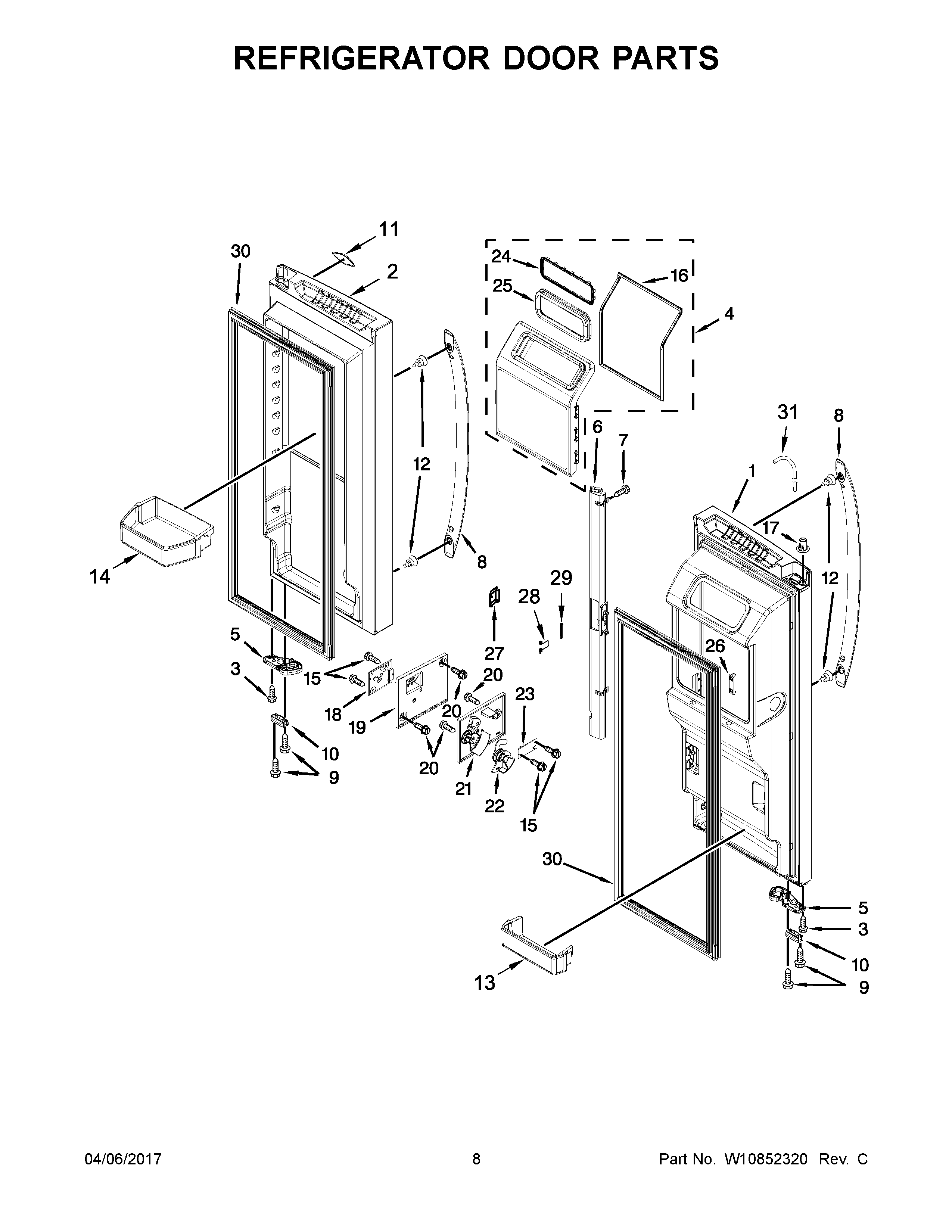

WRF736SDAB14 05 – REFRIGERATOR DOOR PARTS

WRF736SDAB14 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF736SDAB14 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BDOOR, LEFT (STAINLESS)
1ADOOR, LEFT (INCLUDES ITEM 30) (BLACK)
1DOOR, LEFT (INCLUDES ITEM 30) (WHITE)
2DOOR, RIGHT (INCLUDES ITEM 30) (WHITE)
2BDOOR, RIGHT (STAINLESS)
2ADOOR, RIGHT (INCLUDES ITEM 30) (BLACK)
4W11171728 Whirlpool Refrigerator Ice Door
5AW11212164 Whirlpool Refrigerator Door Closer
5W10904595 Whirlpool Refrigerator Closer
6BW10806457 Whirlpool Refrigerator Mullion Rail
6W10846151 Whirlpool Refrigerator Mullion Rail
6AW10698196 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8BW10899551 Whirlpool Door Handle
8W10848410 Whirlpool Refrigerator Handle
8AWPW10548947 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10BUMPER, DOOR (WHITE)
10AW10407187 Whirlpool Refrigerator Door Bumper
10BW11573367 Whirlpool Refrigerator Door Bumper
11WPW10391355 Whirlpool Refrigerator Nameplate
11AWPW10393265 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10555822 Whirlpool Refrigerator Trivet
14WPW10493524 Whirlpool Refrigerator Cantilever Bin
152006254 Whirlpool Refrigerator Screw
16W11624997 Whirlpool Refrigerator Gasket
17W10562834 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19COVER, RECEIVER
20WP3400065 Whirlpool Refrigerator Screw
21W10258502 Whirlpool Refrigerator Cover
22W10258540 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24WPW10400825 Whirlpool Refrigerator Retainer
25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26VENT, THERMISTOR
27FLIPPER
28WP2198635 Whirlpool Refrigerator Spring
29WP2198634 Whirlpool Door Pin
30W11678967 Whirlpool Refrigerator Gasket FIP
30BW10407212 Whirlpool Door Gasket
30AW10861004 Whirlpool Refrigerator FIP Gasket
31WPW10499015 Whirlpool Refrigerator Water Tube
