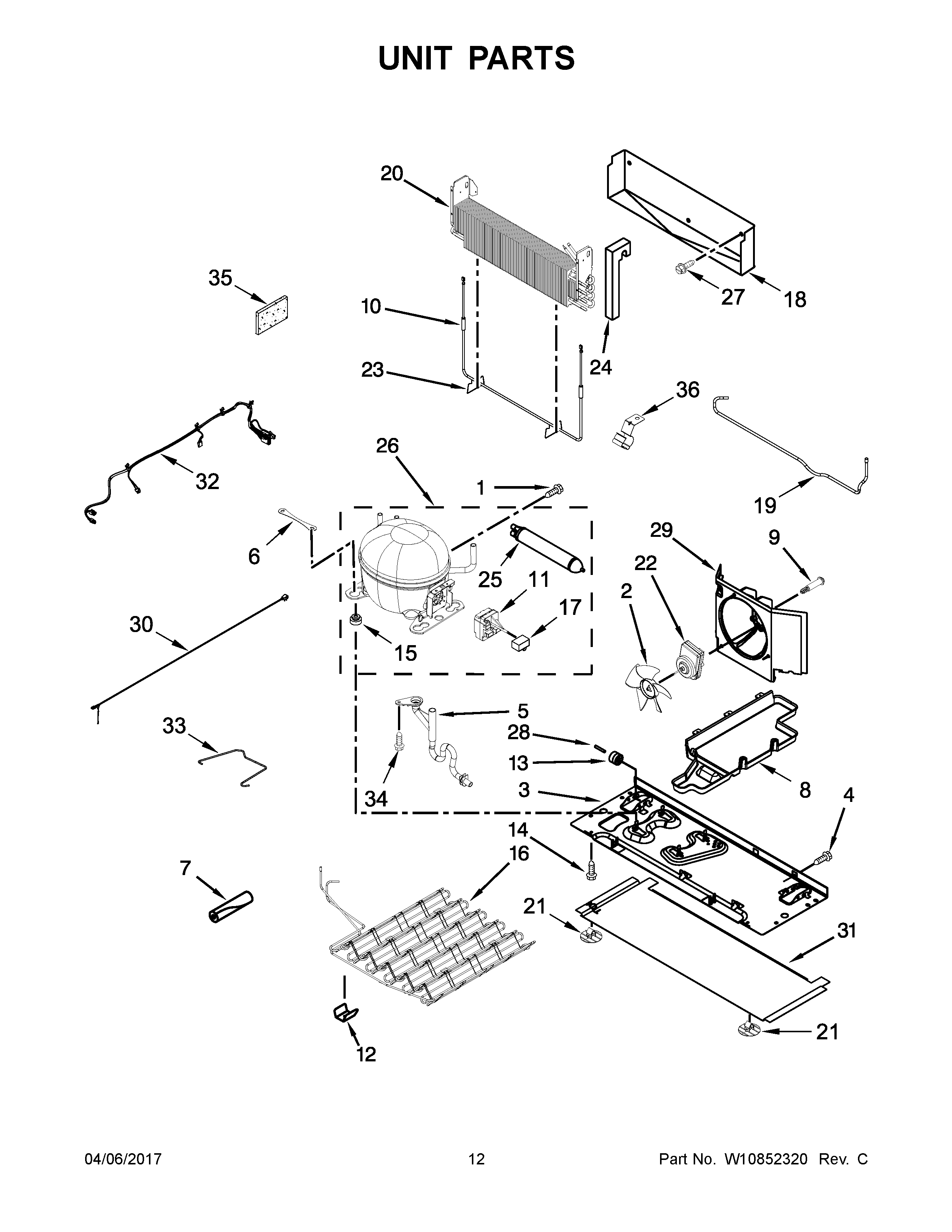

WRF736SDAB14 07 – UNIT PARTS

WRF736SDAB14 07 – UNIT PARTS

Written by

in

WRF736SDAB14 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W10570074 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W11712703 Whirlpool Extension Assembly
6	W10236396 Whirlpool Refrigerator Strap
7	SLEEVE
8	W11225840 Whirlpool Refrigerator Evaporator Tray
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	W10873801 Whirlpool Start Device
12	W10683556 Whirlpool Refrigerator Clip
13	WP67005149 Whirlpool Roller
14	Screw
15	WPW10169124 Whirlpool Refrigerator Grommet
16	W11673437 Whirlpool Condenser Assembly
17	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
18	WPW10512220 Whirlpool Refrigerator Drip Tray
19	WPW10463542 Whirlpool Refrigerator Tube
20	WPW10608485 Whirlpool Refrigerator Evaporator
21	W10815861 Whirlpool Refrigerator Clip
22	W11578915 Whirlpool Condenser Motor
23	W11673433 Whirlpool Clip
24	W10491355 Whirlpool Refrigerator Air Gasket
25	WPW10143759 Whirlpool Dryer Filter
26	W10309988 Whirlpool Refrigerator Compressor
27	W11544659 Whirlpool Refrigerator Screw
28	67006434 Whirlpool Axle Pin
29	WPW10406719 Whirlpool Refrigerator Shroud
30	CORD-POWER
31	W10278140 Whirlpool Refrigerator Unit Cover
32	W10747515 Whirlpool Refrigerator Wire Harness
33	STRAP, BALE
34	W10141518 Whirlpool Refrigerator Screw
35	W11553819 Whirlpool Refrigerator Insulation
36	W10281329 Whirlpool Clamp
