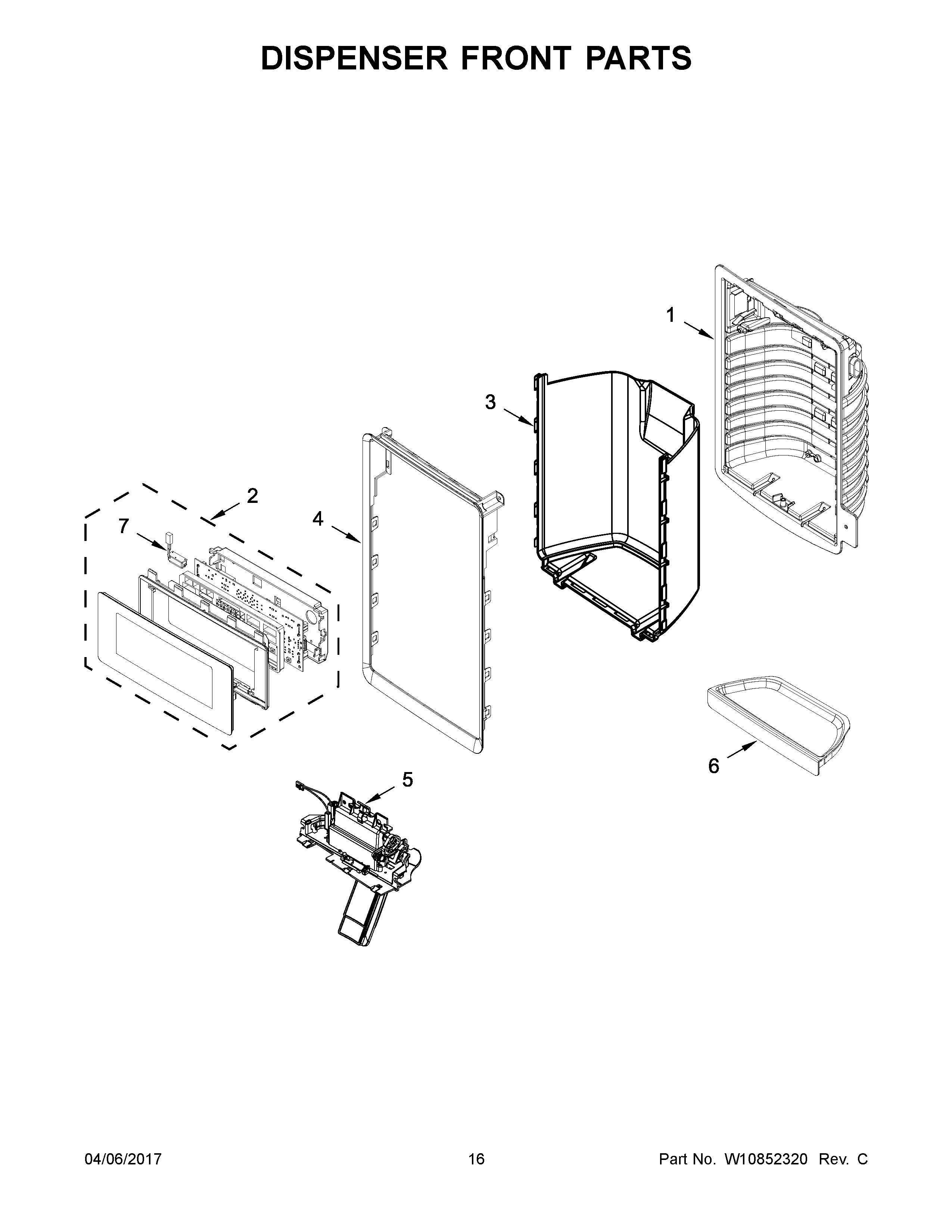

WRF736SDAB14 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10852669 Whirlpool Refrigerator Electronic Control Board + Core
2AW10865869 Whirlpool Refrigerator Electronic Control Board + Core
3AW10488322 Whirlpool Refrigerator Separator
3WALL, DISPENSER FALSE (WHITE)
3BWALL, DISPENSER FALSE (GREY)
4BWPW10402180 Whirlpool Refrigerator Trim
4AW10462439 Whirlpool Refrigerator Trim
4W10462438 Whirlpool Refrigerator Ring Connector
5AWPW10616133 Whirlpool Refrigerator Separator
5W11175839 Whirlpool Refrigerator Ice Door
5BWPW10616134 Whirlpool Refrigerator Ice Door
6ATRAY, DRIP (BLACK)
6BTRAY, DRIP (GREY)
6W10606644 Whirlpool Refrigerator Drip Tray
7W11290115 Whirlpool Refrigerator Light
