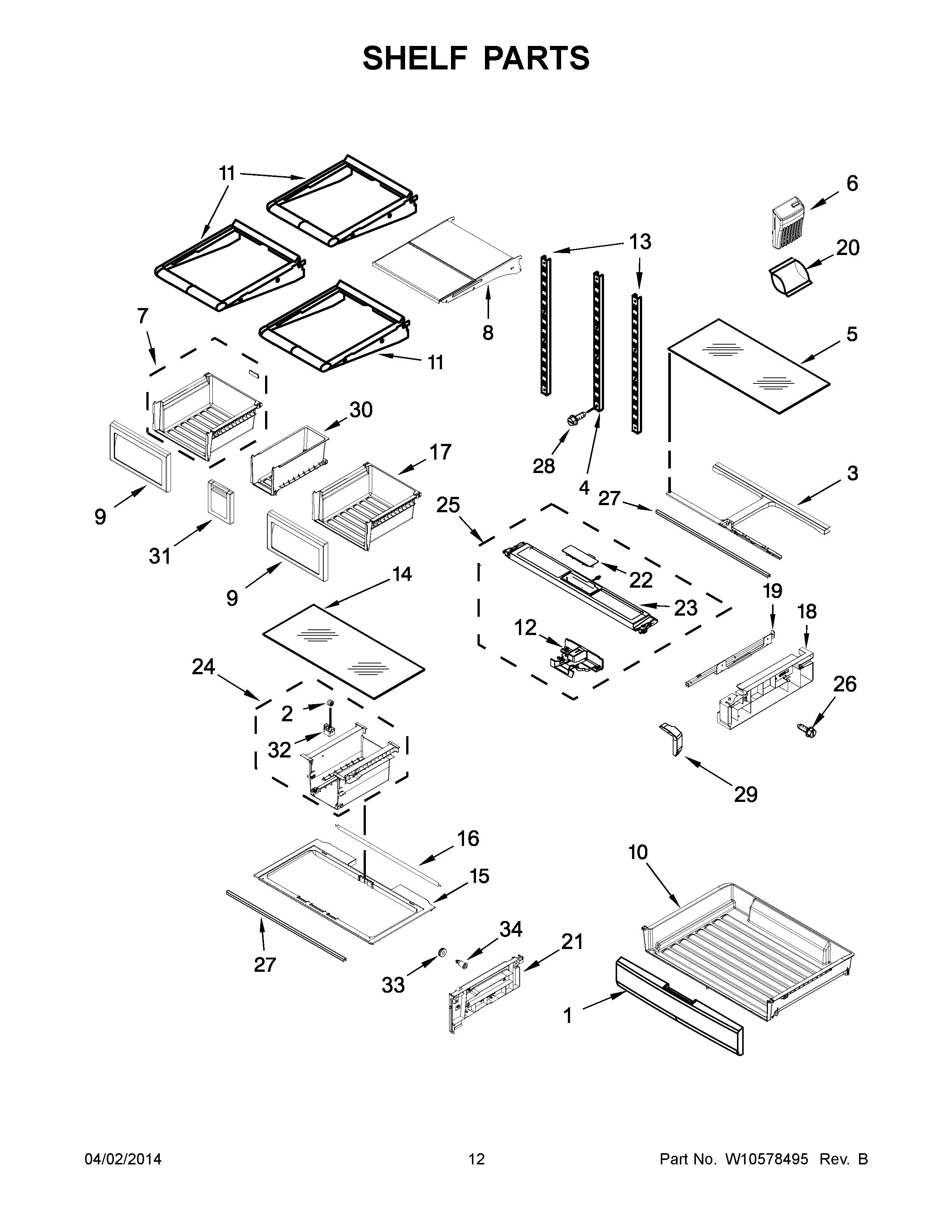

WRF736SDAF10 07 – SHELF PARTS

Products

Position	Product
1	WPW10510417 Whirlpool Refrigerator Front Pan
2	W10248789 Whirlpool Refrigerator Roller
3	W10515051 Whirlpool Refrigerator Support
4	W11690685 Whirlpool Ladder
5	WPW10628815 Whirlpool Refrigerator Glass Shelf
6	WPW10408747 Whirlpool Refrigerator Housing
8	TOP SHELF ASSEMBLY
9	WPW10688114 Whirlpool Drawer Front
10	PAN, PANTRY
11	W11540779 Whirlpool Glass Shelf
12	W10512596 Whirlpool Refrigerator Knob
13	LADDER
14	GLASS, CRISPER
15	WPW10423799 Whirlpool Refrigerator Crisper Cover
16	WPW10248967 Whirlpool Refrigerator Support
17	PAN-CRISPR
18	W10248796 Whirlpool Refrigerator Plate
18	PLATE, SIDE PANTRY (LEFT HAND)
19	W10508327 Whirlpool Refrigerator Slide
19	W10508326 Whirlpool Refrigerator Slide
20	W10346771A Whirlpool Fresh Flow Produce Preserver
21	W11173721 Whirlpool Refrigerator Plate
21	W11209881 Whirlpool Support Drawer
22	HOUSING, PANTRY TEMP CONTROL
23	WPW10554285 Whirlpool Refrigerator Cover
24	W10662015 Whirlpool Drawer Support Assembly
25	W10554293 Whirlpool Refrigerator Cover
26	W10185612 Whirlpool Screw
27	WPW10236512 Whirlpool Refrigerator Support
28	W10423560 Whirlpool Refrigerator Screw
29	W10248852 Whirlpool Refrigerator Trim
29	W10248851 Whirlpool Refrigerator Trim
30	WPW10387778 Whirlpool Refrigerator Crisper Pan
31	W11218695 Whirlpool Refrigerator Front Pan
32	W10530314 Whirlpool Refrigerator Housing
33	WPW10248544 Whirlpool Refrigerator Roller
34	WPW10257246 Whirlpool Refrigerator Axle
