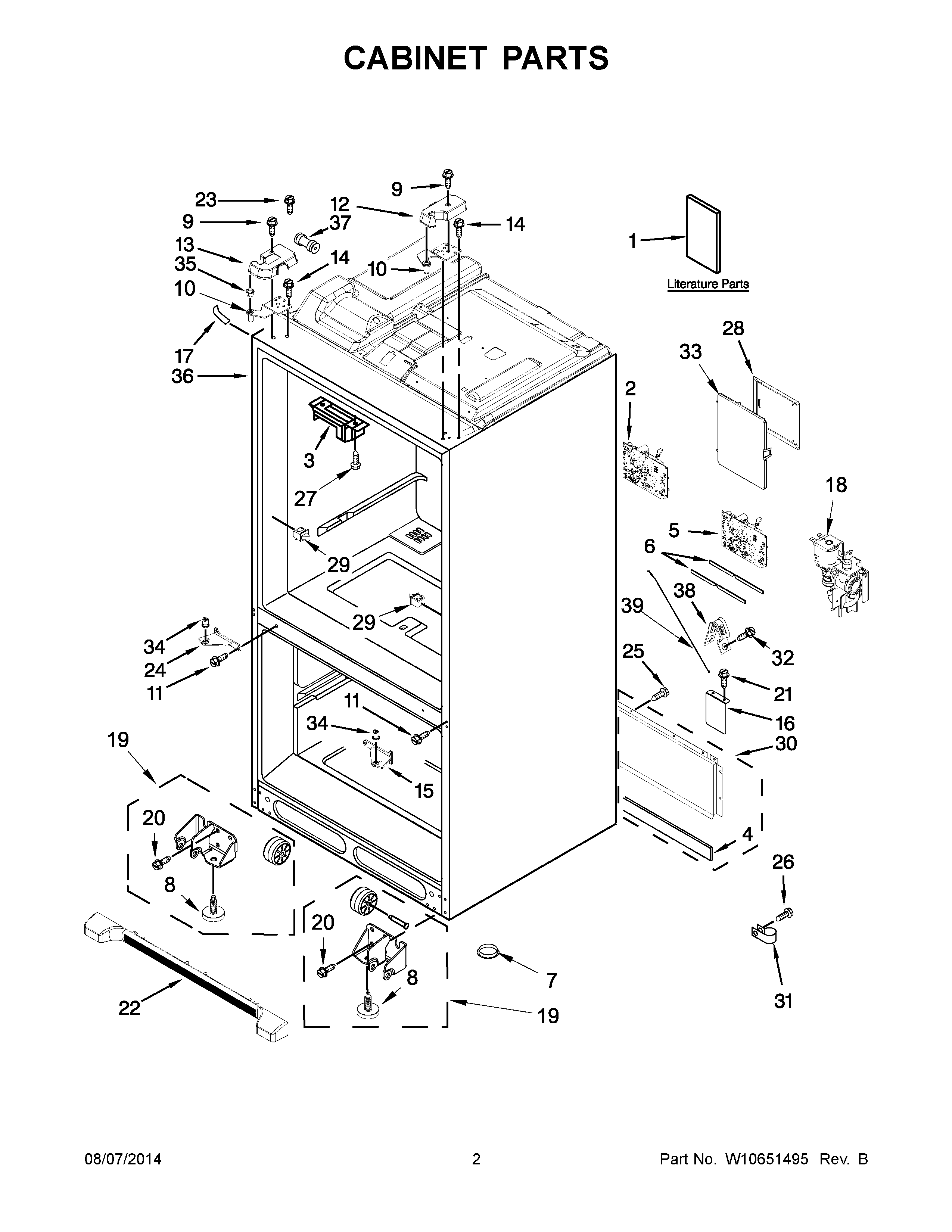

WRF736SDAF12 02 – CABINET PARTS

WRF736SDAF12 02 – CABINET PARTS

Written by

in

WRF736SDAF12 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
2	WPW10453401 Whirlpool Refrigerator Electronic Control Board
3	WPW10344432 Whirlpool Pivot Block
4	W10505487 Whirlpool Refrigerator Gasket
5	WPW10589838-includeCORE Whirlpool WPW10589838 Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10	W11592404 Whirlpool Refrigerator Door Hinge
10A	W11592405 Whirlpool Door Hinge
11	W10403208 Whirlpool Screw
11B	WP67006380 Whirlpool Screw
11A	W10403211 Whirlpool Refrigerator Screw
12A	COVER, TOP HINGE RIGHT HAND (BLACK)
12B	WPW10407158 Whirlpool Refrigerator Cover Assembly
12	W10248562 Whirlpool Refrigerator Cover
13	W10471615 Whirlpool Refrigerator Cover
13A	W10471617 Whirlpool Refrigerator Cover
13B	WPW10471618 Whirlpool Refrigerator Cover
14	WPW10308751 Whirlpool Screw
15A	W10407275 Whirlpool Refrigerator Door Hinge
15	W10248433 Whirlpool Refrigerator Door Hinge
15B	W11240748 Whirlpool Refrigerator Door Hinge
16	W10336736 Whirlpool Refrigerator Cover
17	12587703W Whirlpool Refrigerator Cover
17B	WP12587703AP Whirlpool Refrigerator Filler
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10865826 Whirlpool Refrigerator Water Inlet Valve
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	WP33001882 Whirlpool Screw
22	WPW10637668 Whirlpool Refrigerator Front Grille
22A	WPW10637669 Whirlpool Refrigerator Front Grille
22B	WPW10637671 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24A	W10407279 Whirlpool Refrigerator Door Hinge
24	W10248434 Whirlpool Refrigerator Door Hinge
24B	W10878115 Whirlpool Refrigerator Door Hinge
26	67006425 Whirlpool Refrigerator Screw
27	W10854958 Whirlpool Refrigerator Screw
28	WPW10485658 Whirlpool Cover Assembly
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	SCREW
33	W10277839 Whirlpool Refrigerator Cover
34	COUPLER, DOOR
35	W10212137 Whirlpool Refrigerator Grommet
36	CABINET (NOT A SERVICEABLE PART)
37	WP2300868 Whirlpool Refrigerator Fitting
38	549193 Whirlpool Refrigerator Power Clamp
39	W11308813 Whirlpool Refrigerator Water Tube
